M2400 to M2499.

Miscellaneous M2400 to M2499.

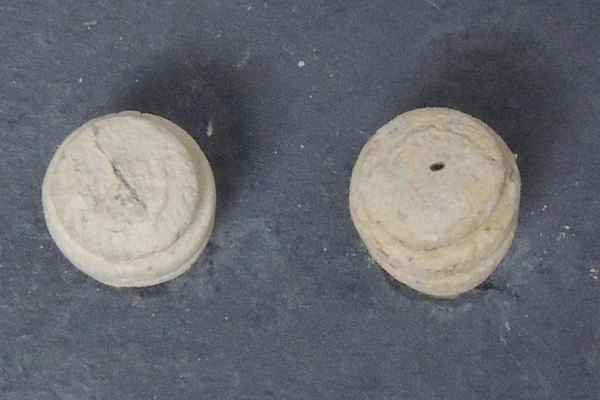

M2400...Sharps carbine "ringtail", .38 cal., Tie ring base, 2 raised rings, pointed nose. Ref: M&M 196, T&T 107.

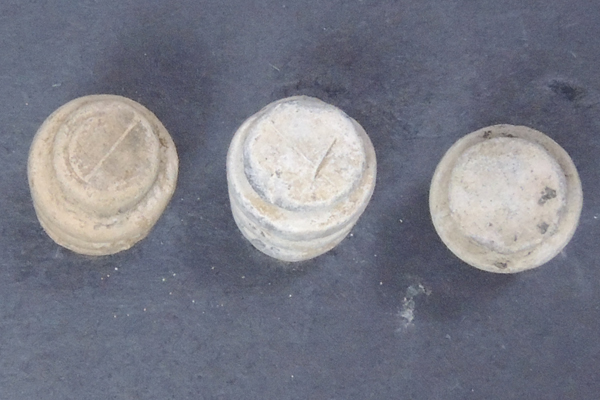

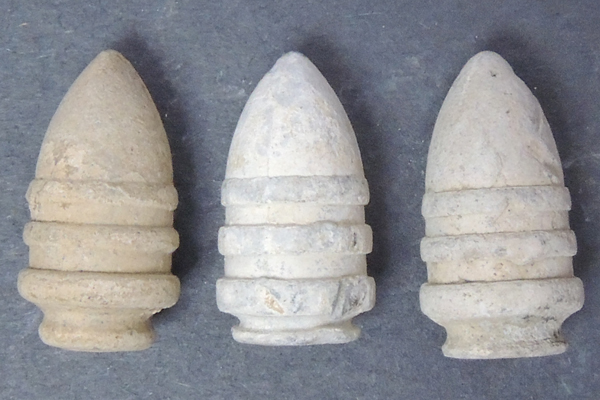

M2401...Sharps carbine, .56 cal. Tie Ring base, 3 raised rings. Ref: M&M 189, or 190, T&T 120.

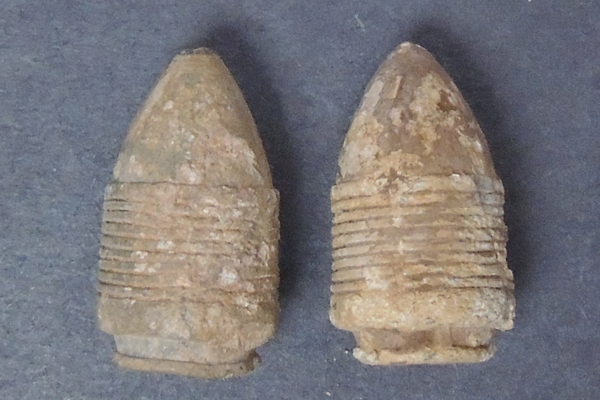

M2402...Sharps "multi groove", .52 cal. Tie Ring base, 2 raised ribs, multi rings. Ref: M&M 191, T&T 106.

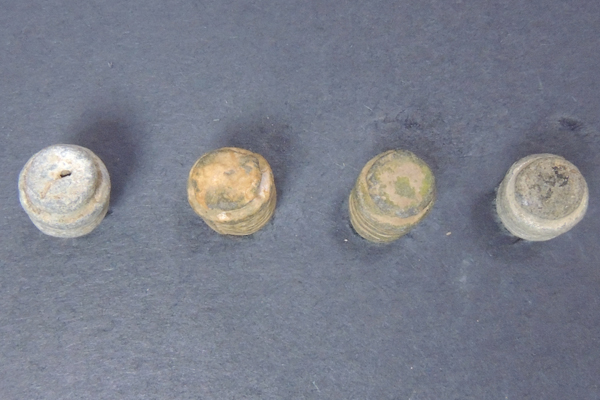

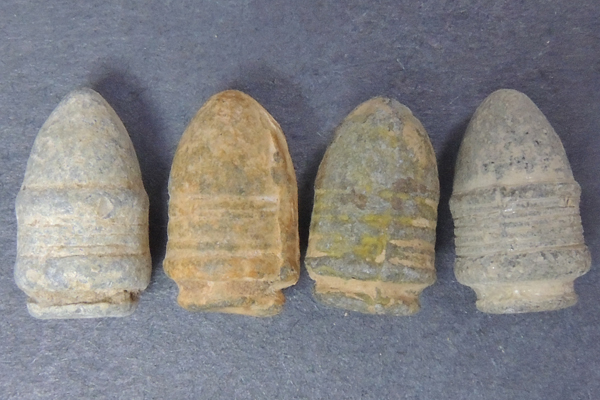

M2403... Sharps "multi groove", .44 cal. Tie Ring base, 2 raised ribs, multi rings. Ref: M&M 193, T&T 104.

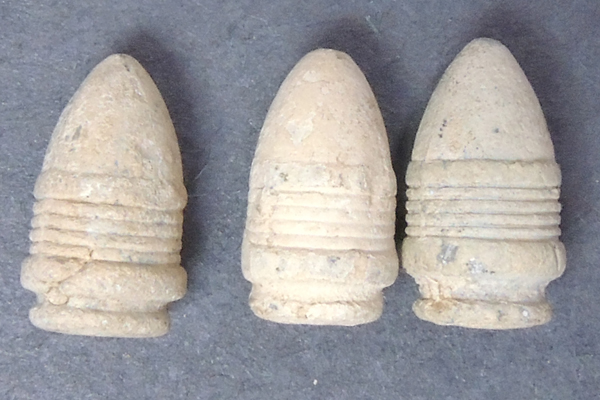

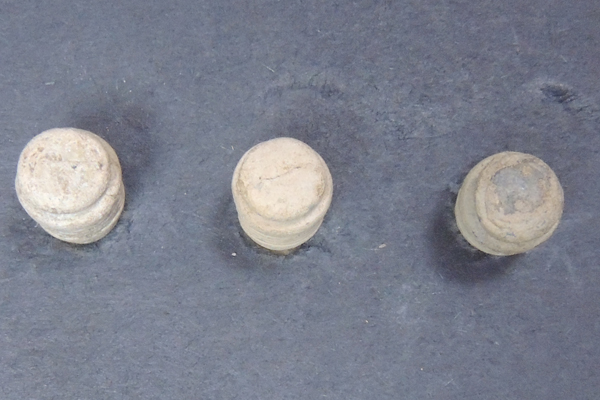

M2404...Sharps "multi groove", .38 cal. Tie Ring base, 2 raised ribs, multi rings. Ref: M&M 191 series, T&T 103.

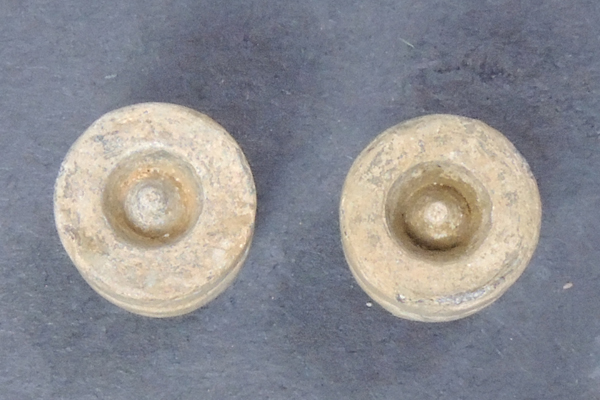

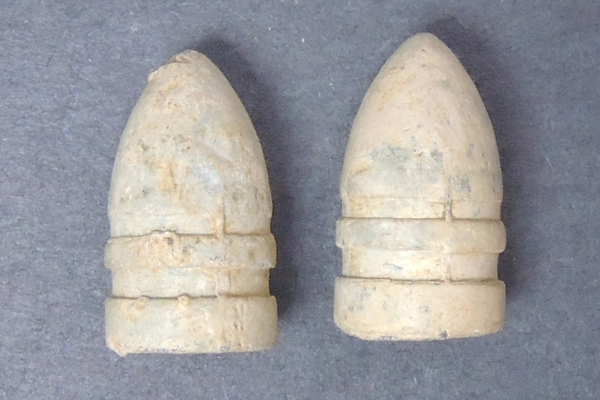

M2405...Sharps carbine, .52 cal. Small cone cavity with a teat, 2 raised rings. Ref: M&M 203 or 206, T&T 114A variant.

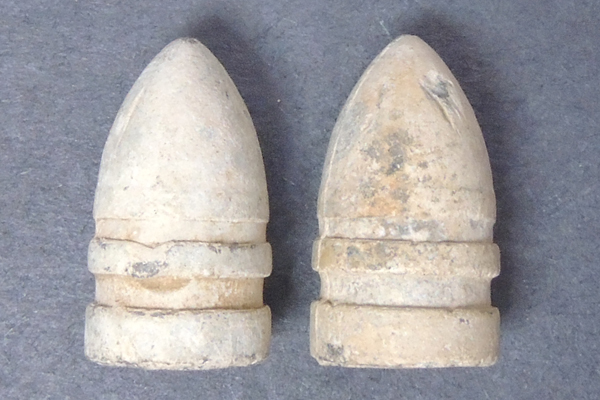

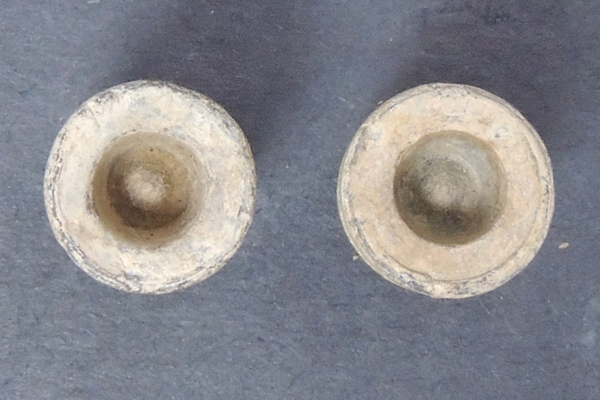

M2406...Sharps carbine, .52 cal. Large cone cavity with a teat, 2 raised rings. Ref: M&M 203 or 206, T&T 114A variant.

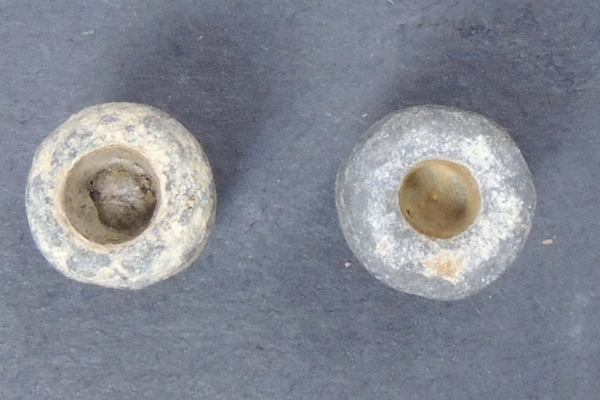

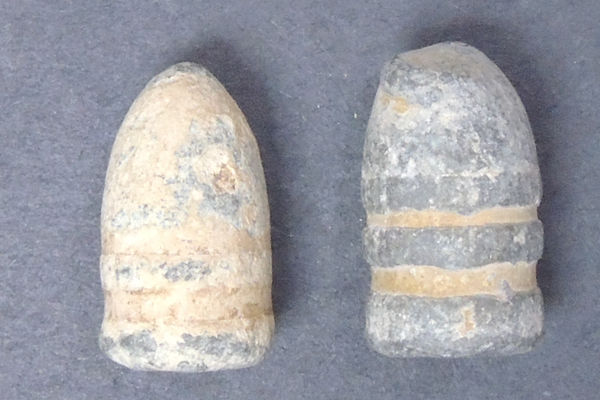

M2407...Sharps carbine, .52 cal. Variant with cylinder shaped cone, 2 raised rings. Ref: M&M 203 series T&T 114 variant

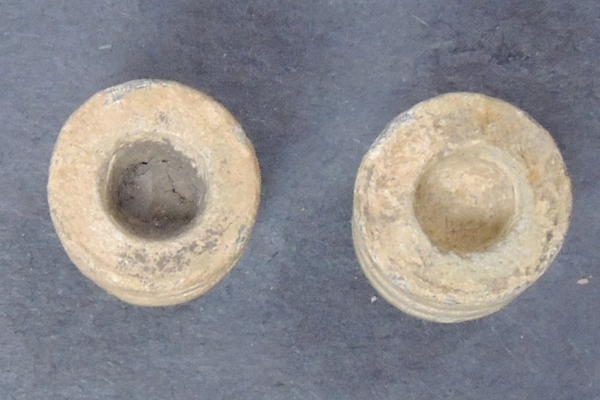

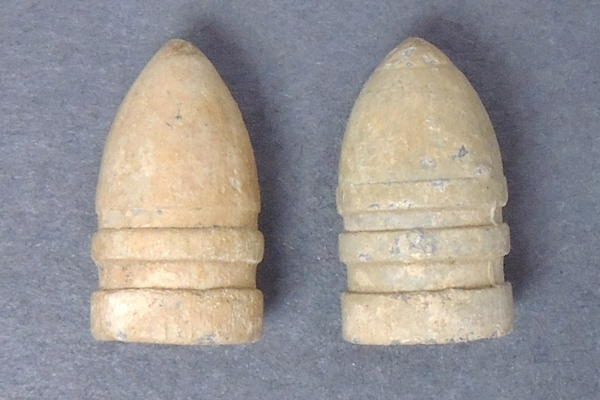

M2408...Sharps carbine, .52 cal. Medium elliptical cavity, 2 raised rings. Ref: M&M 205 variant, T 114 A variant.

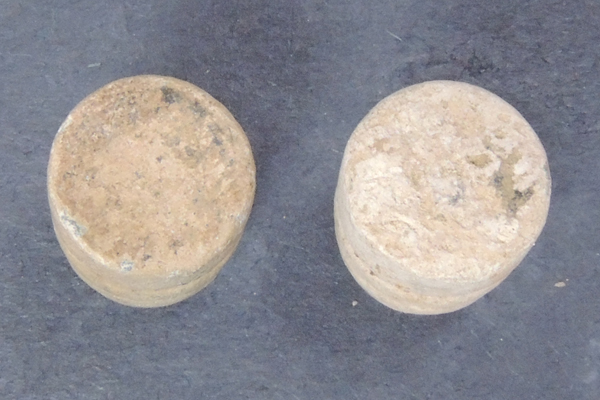

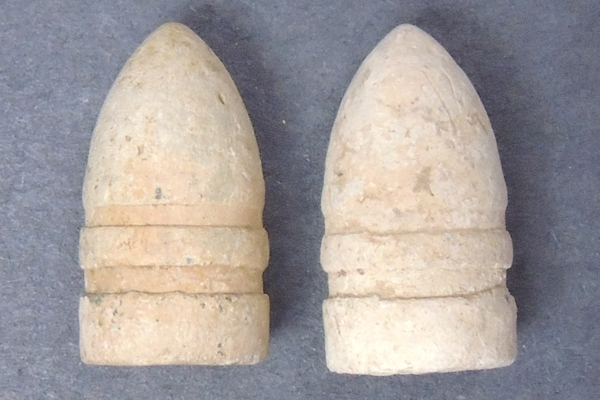

M2409...Sharps carbine, .52 cal. Flat base 2 raised ribs. Ref: M&M 43, T&T 113.

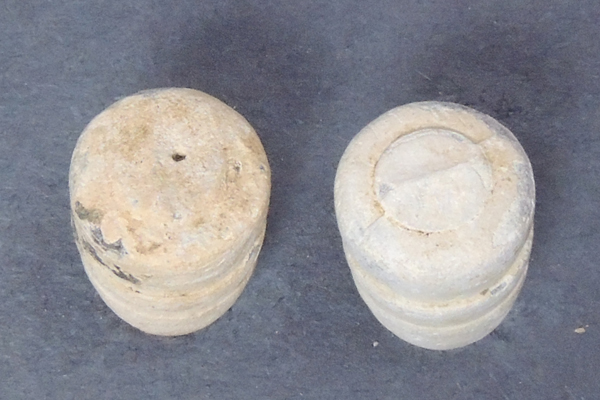

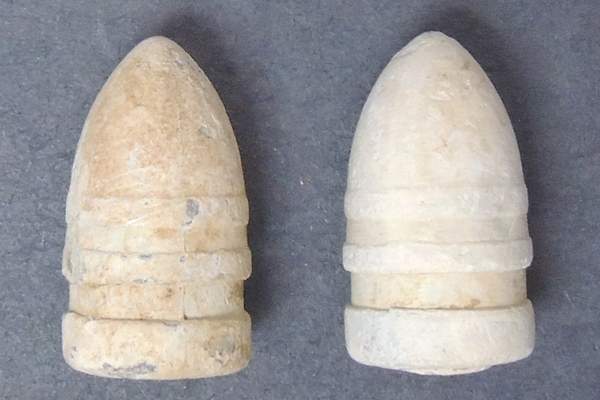

M2410...Sharps carbine, .52 cal. Flat base 2 raised ribs, noticeable mold sprue on base. Ref: M&M 44, T&T 113 variant.

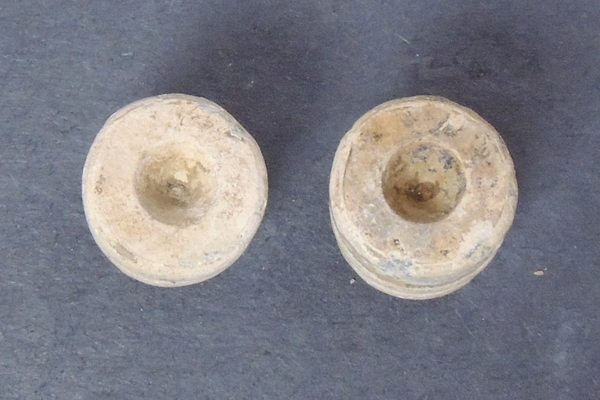

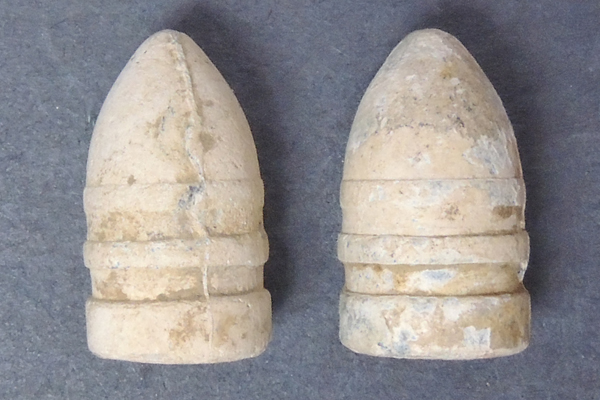

M2411...Sharps carbine, .52 cal. Small cone cavity, 2 raised rings. Ref: M&M 205, T&T 114A.

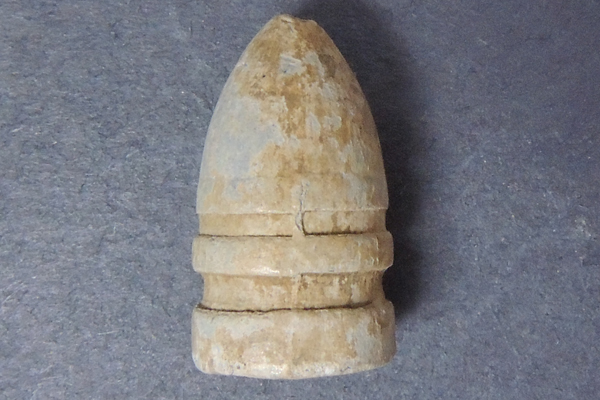

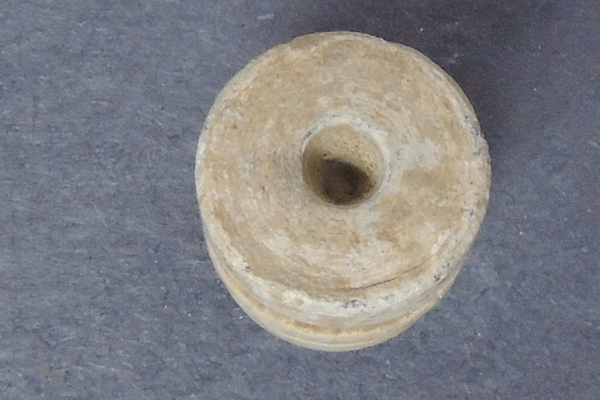

M2412...Sharps carbine, .52 cal. Unusual small cone cavity, 2 raised rings. Ref: M&M 205 variant, T114 A variant.

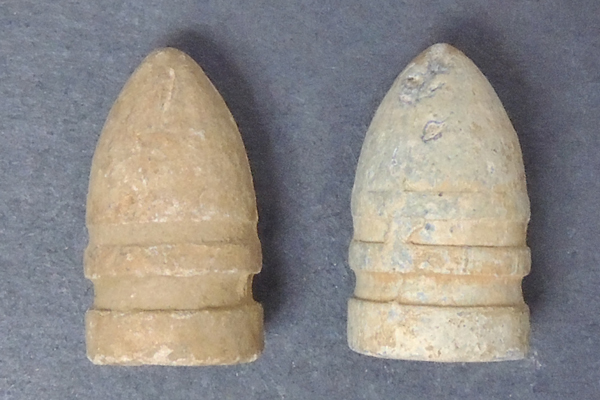

M2413...Sharps carbine, .52 cal. Deep cone cavity , 2 raised rings. Ref: M&M 207, T&T 114A variant.

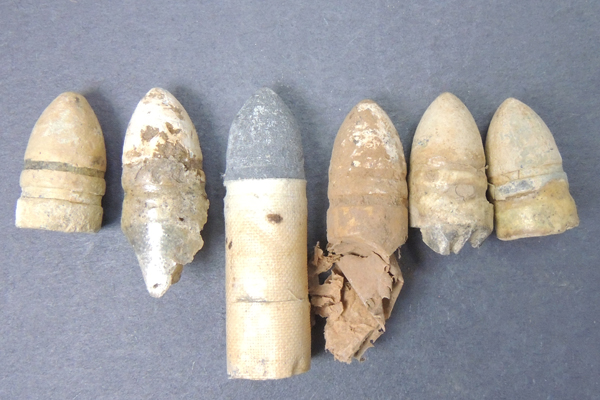

M2414.01...Sharps carbine, .52 cal. Linen cartridge. Ref: M&M cartridges 60, T&T 113A variant.
M2414.02...Sharps carbine, .52 cal. Battlefield dug examples with fragments of cartridge remaining. Ref: M&M cartridges 60, T&T 113A variant.

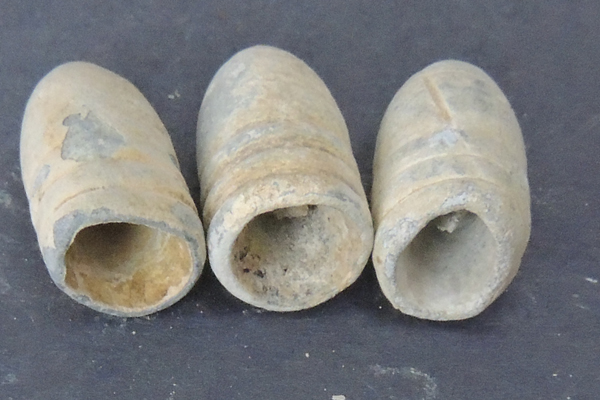

M2415...Kerr pattern, .46 cal. Sharpshooter musket, cone cavity with teat, 3 grooves. Ref: M&M 439, T&T 63B.

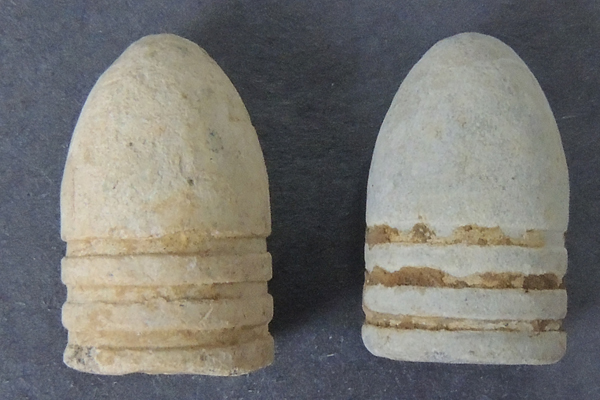

M2416...Gatling revolving "machine" gun .Ref: M&M 539 variant.

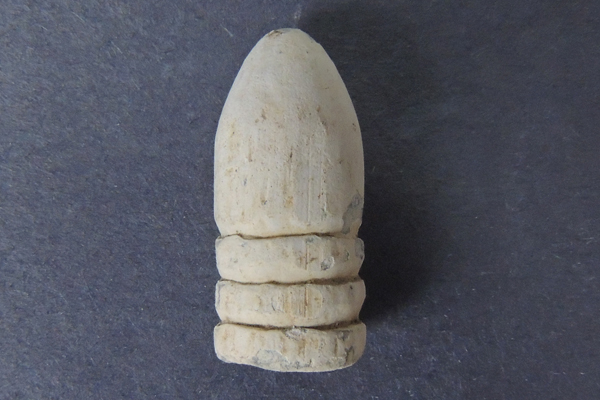

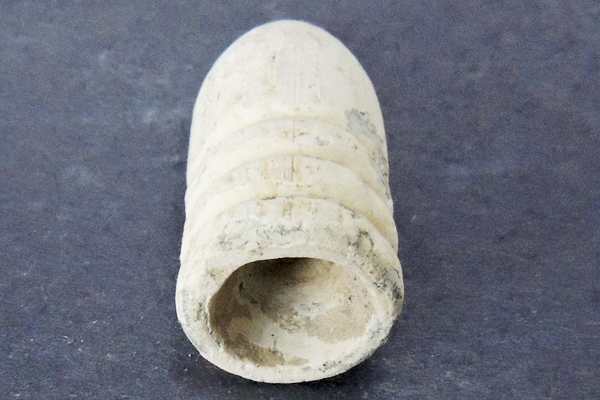

M2417...Rifled musket, minie ball probably .54cal. Used in a carbine, the bullet was larger caliber than the carbine and compressed and elongated when fired.

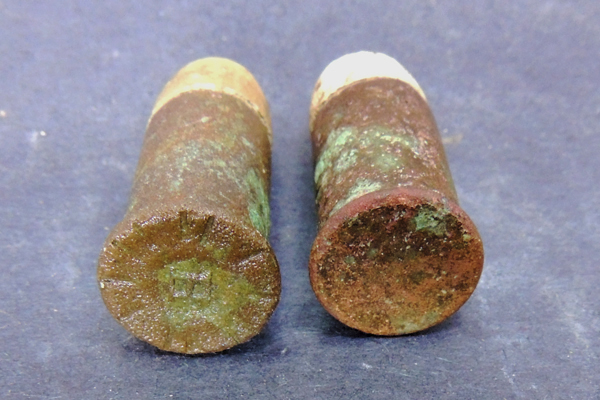

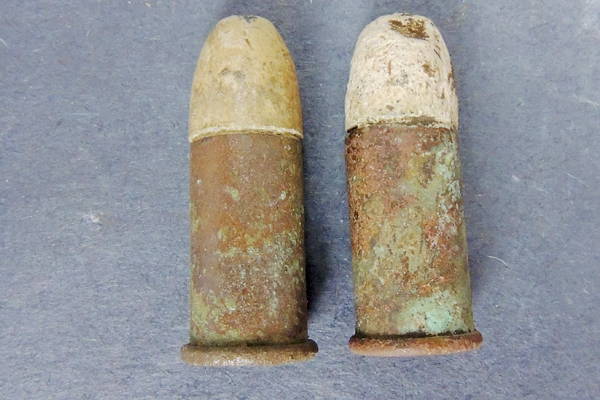

M2418.01...Henry carbine, .44 cal. Henry produced carbine with all metal cartridge that was smaller than other carbines and was struck twice on firing. Cartridge and bullet
M2418.02...Henry carbine, .44 cal. Henry produced carbine with all metal cartridge that was smaller than other carbines and was struck twice on firing., bullet slug only

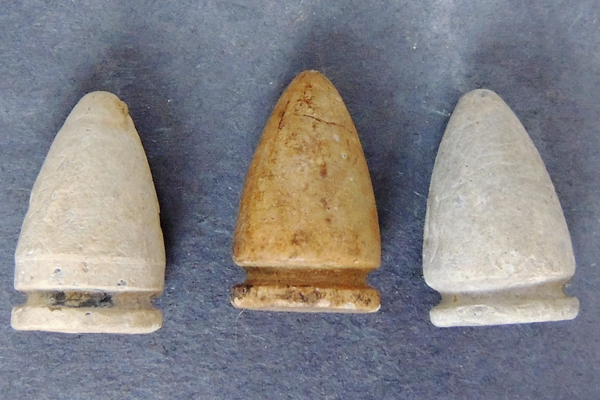

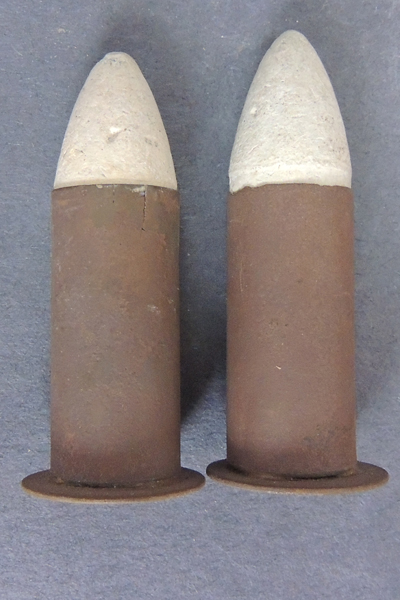

M2419.01...Maynard carbine, pointed nose, .50 cal. Cartridge was metal with a small hole in the center for percusssion. Bullet has pointed nose with one groove. Ref: M&M cartridge169 Ref: M&M 75, T&T 78.
M2419.02...Maynard carbine, pointed nose, .50 cal. Cartridge was metal with a small hole in the center for percusssion. Bullet has pointed nose with one groove. Ref: M&M cartridge169 Ref: M&M 75, T&T 78.

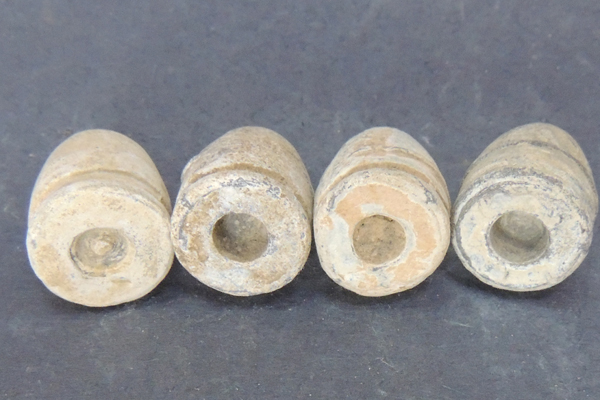

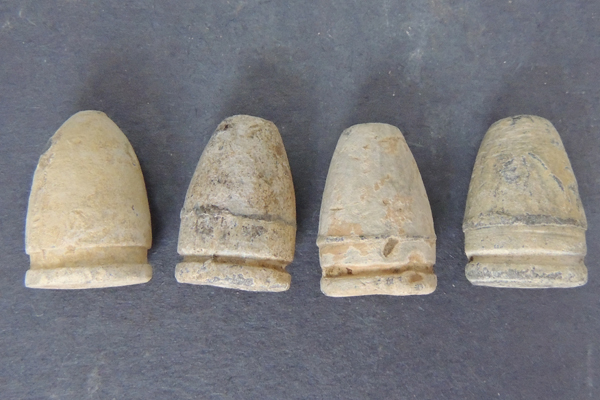

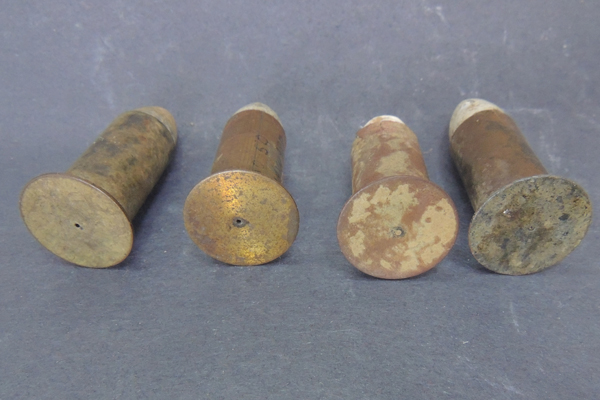

M2420.01... Maynard carbine, blunt nose, .50 cal. Cartridge was metal with a small hole in the center for percusssion. Bullet has pointed nose with one groove, small plug cone in the base. M&M cartridge88 M&M 299 or 270, T&T 80
M2420.02...Maynard carbine, blunt nose, .50 cal. Cartridge was metal with a small hole in the center for percusssion. Bullet has pointed nose with one groove, small plug cone in the base. M&M cartridge88 M&M 299 or 270, T&T 80
M2420.03...Maynard carbine, blunt nose, .50 cal. Cartridge was metal with a small hole in the center for percusssion. Bullet has pointed nose with one groove, small plug cone in the base. M&M 299 or 270, T&T 80

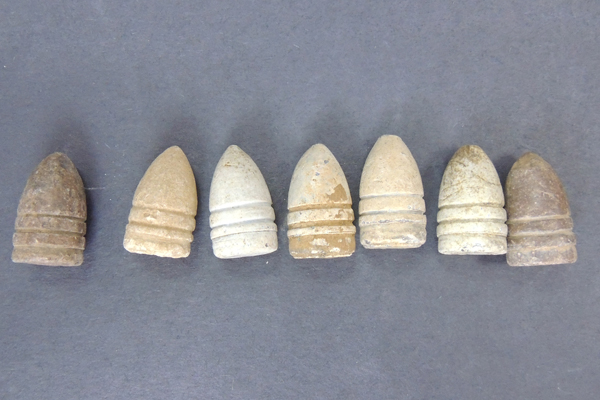

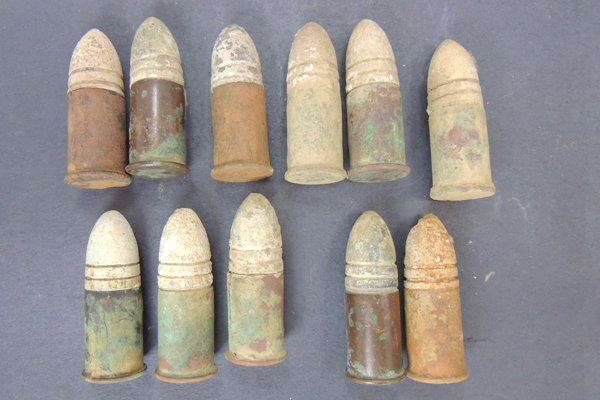

M2421.01...Spencer repeater, .52 cal. So called "56 / 56", the diameter of the cartridge was stated as "56 cal.", and with a smooth sided cartridge the bullet was the same. In actuality the bullet measures .545in. designed to compress into a bore of .52in., and as the cartridge is fitted over the bottom of the bullet, it is slightly larger than .56in. Ref: M&M Cartridge 124 to 127, M&M bullet 468 or 471, T&T 87.

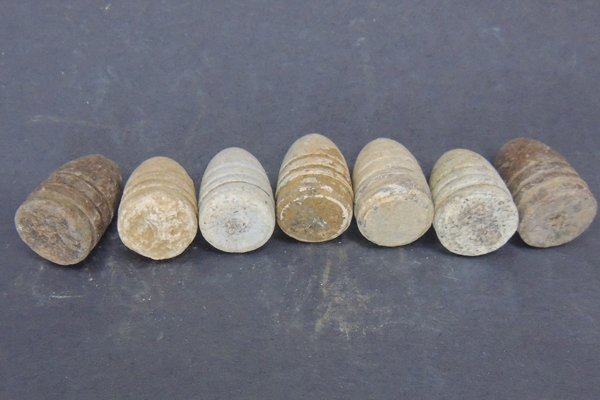

M2421.02...Spencer repeater, .52 cal. So called "56 / 56", the diameter of the cartridge was stated as "56 cal.", and with a smooth sided cartridge the bullet was the same. In actuality the bullet measures .545in. designed to compress into a bore of .52in., and as the cartridge is fitted over the bottom of the bullet, it is slightly larger than .56in. Ref: M&M bullet 468 or 471, T&T 87.

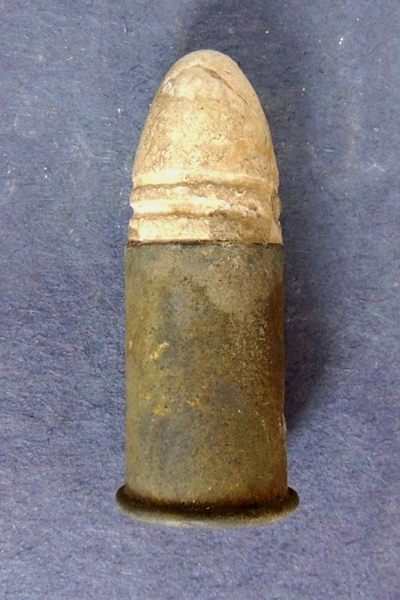

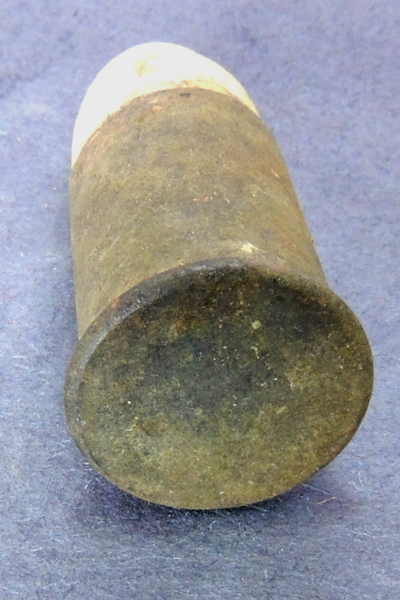

M2422... Warner carbine, .50cal. All metal rimfire cartridge . Diameter .52in., length 1.5in. Ref: Stelma, M&M, T&T.

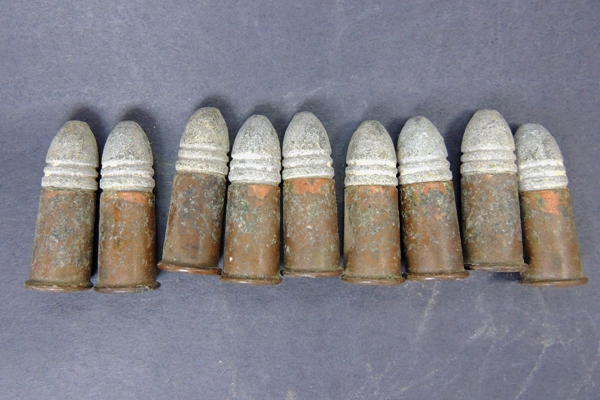

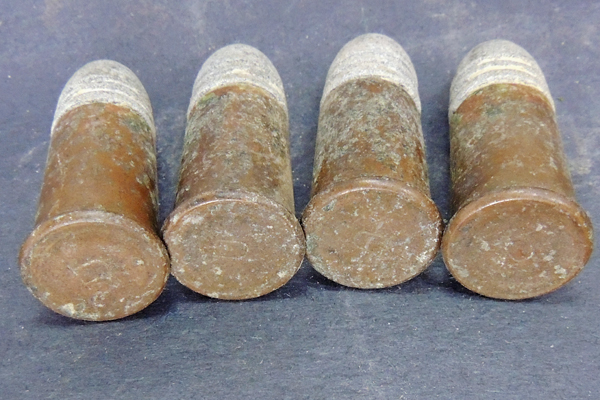

M2423...Spencer repeater, .52 cal. So called "56 / 56". Cartridge is marked "U" issued late in the war. These 9 cartridges were brought home by John Johnson First West Va Cavalry. The unit participated in the Grand Review and was disabanded, these bullets were probably the last issued to the regiment.

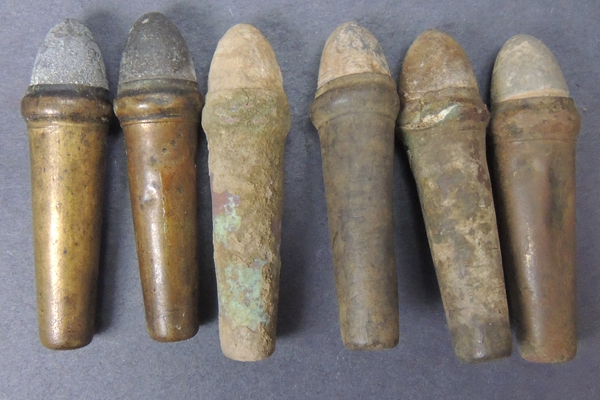

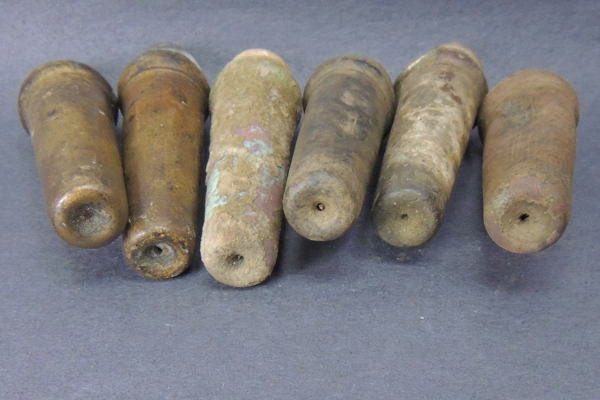

M2424...Burnside carbine, .54cal. cartridge & bullet, ignition was through small hole in pointed base. Reference M&M cartridge 85, M&M 119, or 71, or 309, T&T 89.

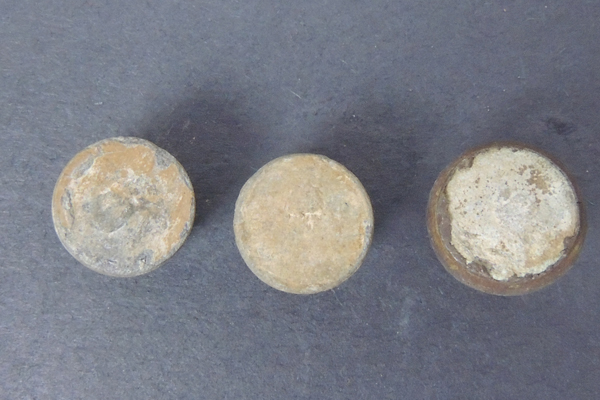

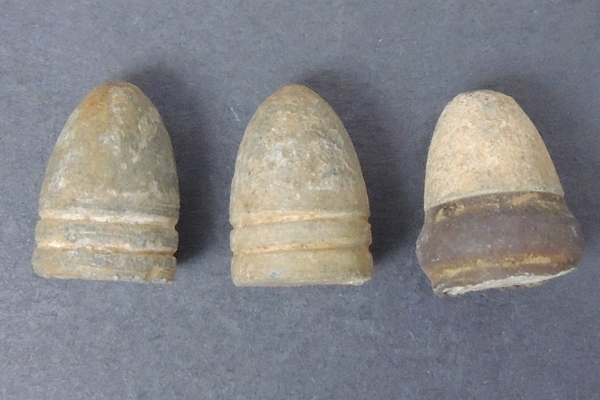

M2425...Burnside, carbine, .54cal. Flat base, 2 grooves .Ref: M&M 119, T&T 89.

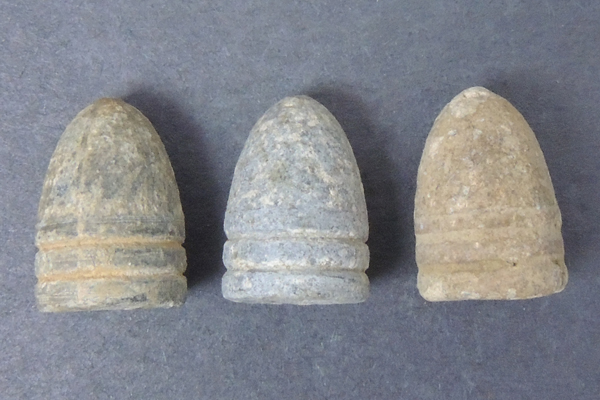

M2426...Burnside carbine, .54cal. Dish cavity, 2 grooves. Ref: M&M 309, T&T 89 variant.

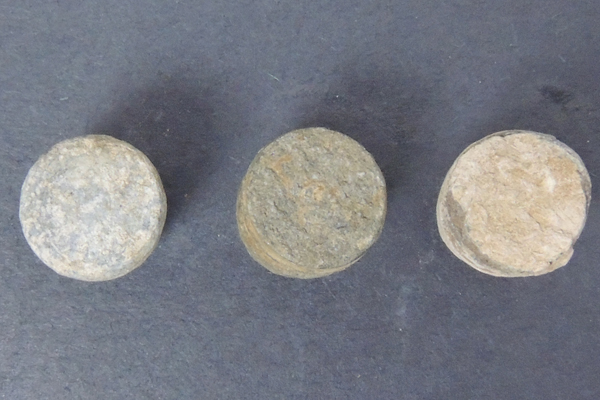

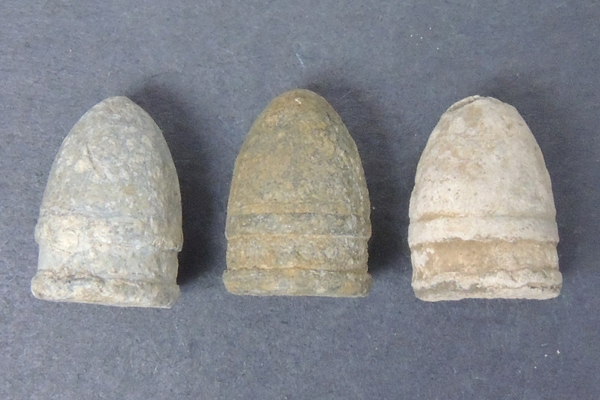

M2427...Burnside carbine, one ring variant, .54cal. Flat base, 1 groove. Mason called this "Sharps & Hankin" in error. Ref: M&M 71, T&T 90A.

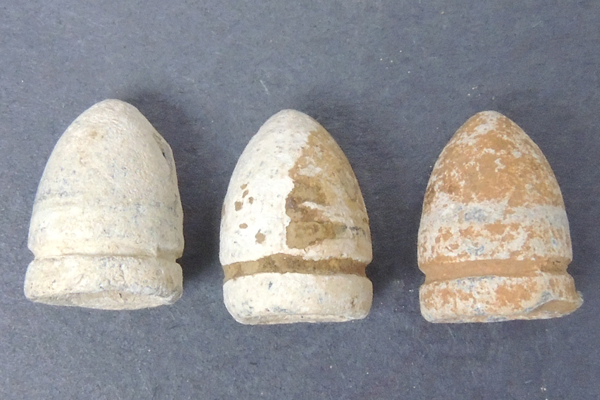

M2428...Burnside carbine, .54cal., "tinned" cartridge, 1 groove, shallow dish cavity. Ref: M&M 273, T&T 90B.

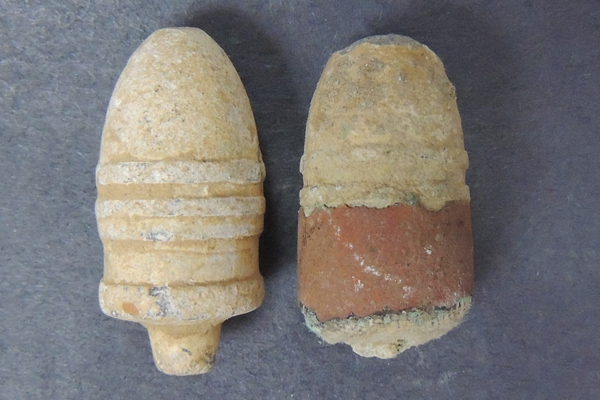

M2429...Sharps & Hankin carbine , .54cal . Projected base, three raised rings Ref: M&M cartridge 172 Ref: M&M 515, T&T 124.

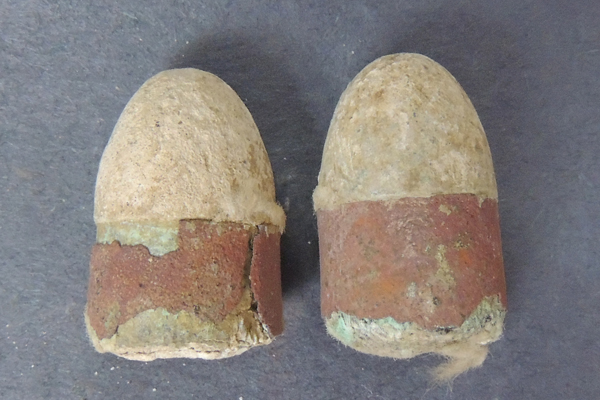

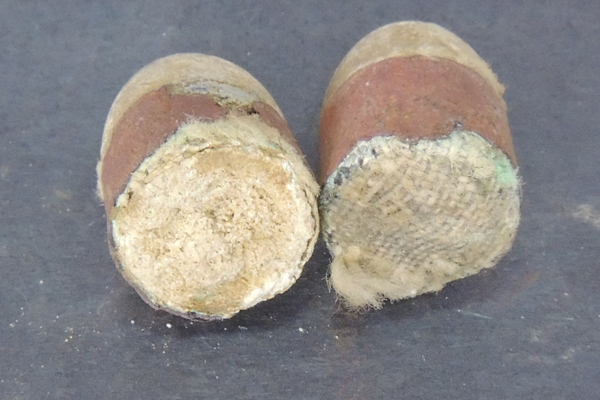

M2430...Sharps & Hankin carbine, .54cal. Flat base, 1 groove, partial cartridge remains, Ref: M&M cartridge 176, misidentified as Ballard Ref: M&M 72, T&T125...

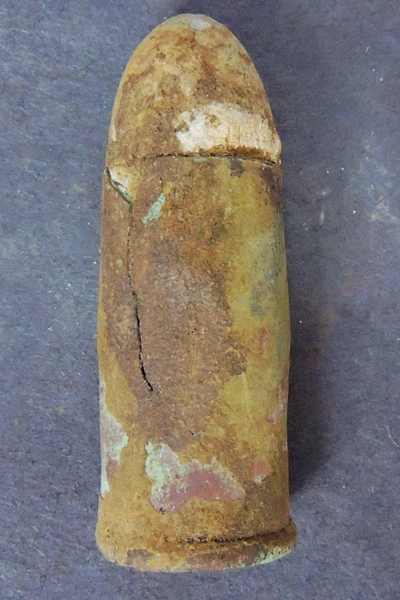

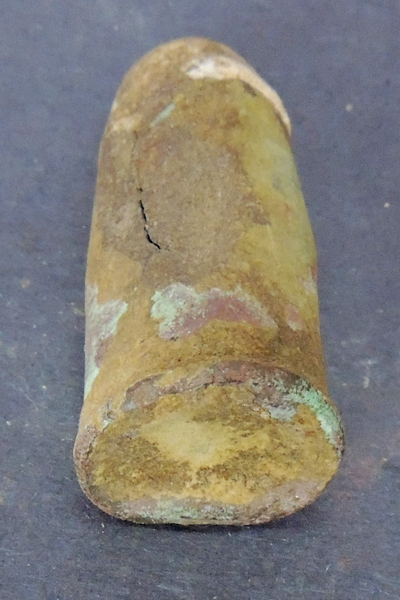

M2431...Sharps & Hankin, .54cal. carbine Flat base, 1 groove, cartridge, Ref: M&M cartridge 122, T&T125.

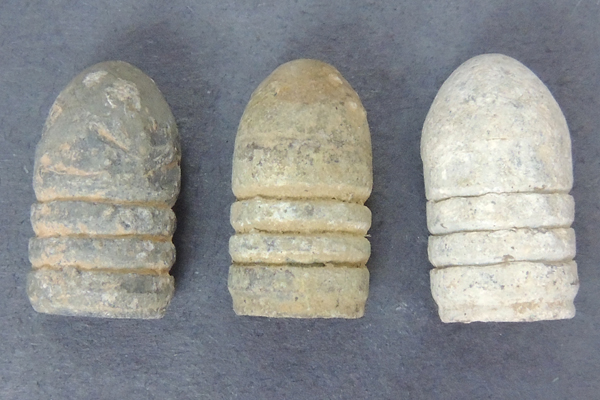

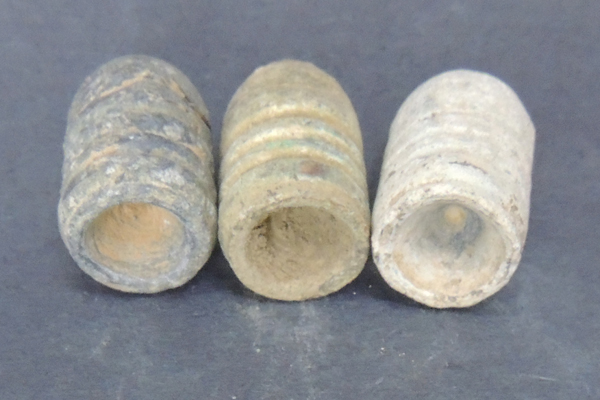

M2432...Gallagher carbine, .50 cal. Cone cavity , 3 grooves.Ref: M&M 442, T&T 75...

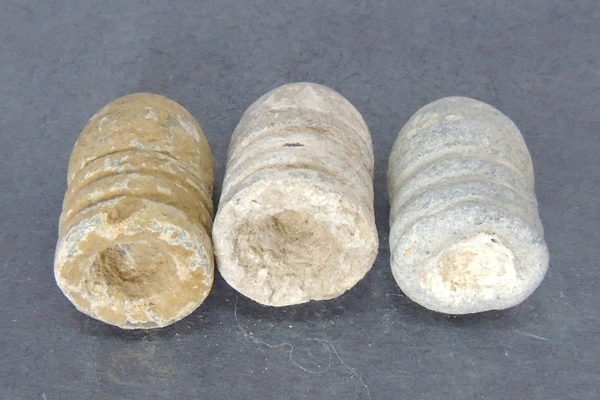

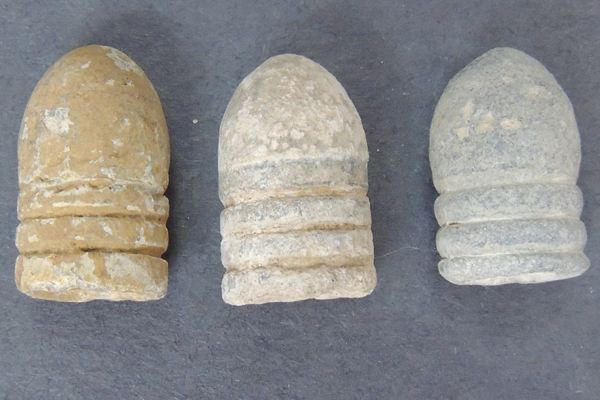

M2433...Gallagher carbine, .50 cal. Short base, cone cavity , 3 grooves.Ref: M&M 443 variant, T&T 75, variant

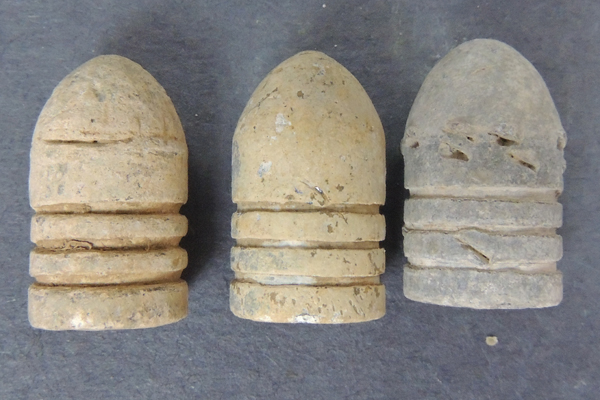

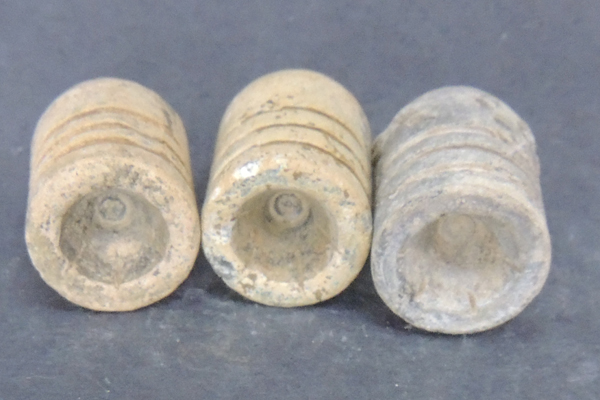

M2434...Gallagher carbine, .50 cal. Short base, cone cavity with 6 swag spokes , 3 grooves.Ref: M&M 443, T&T 75, variant

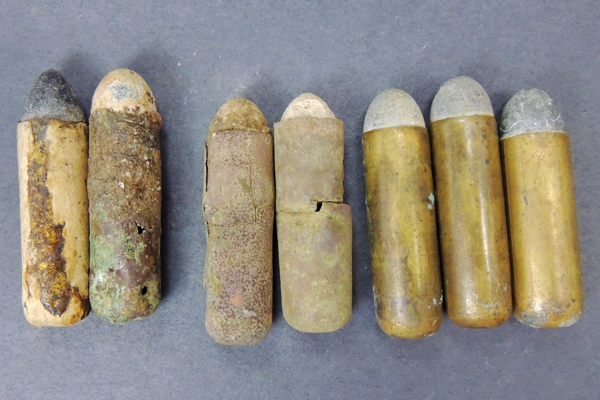

M2435...Gallagher carbine .50 cal. Brass cartridge bullet. Ignition was through small hole in pointed base.Reference M&M Cartridge 84 Ref: M&M 442, T&T 75.

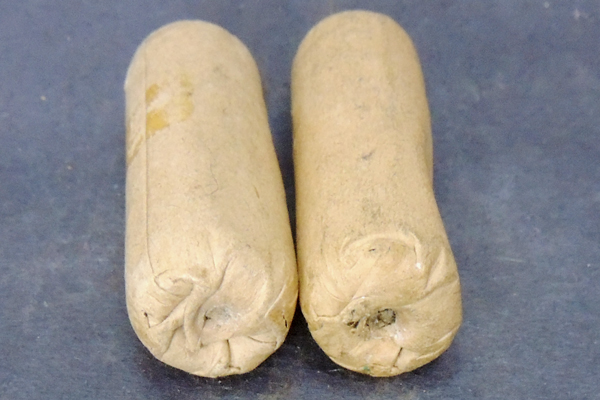

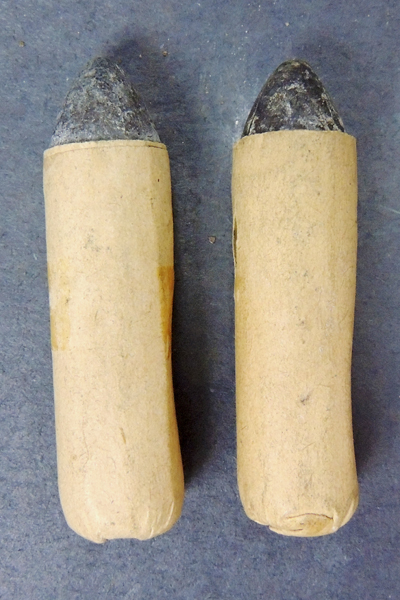

M2436...Gallagher carbine, .50 cal. Paper and foil cartridge bullet. Ignition was through small hole in pointed base. Reference M&M Cartridge 82 T&T 74.

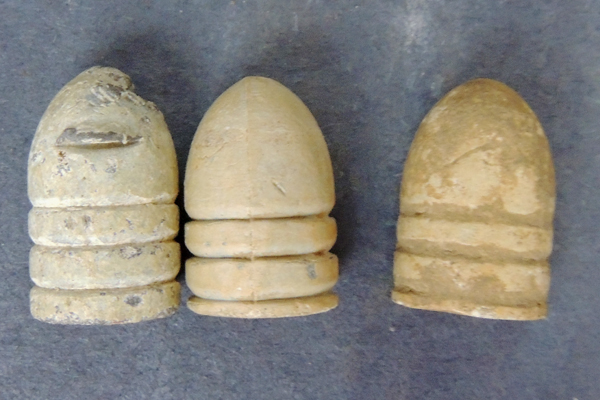

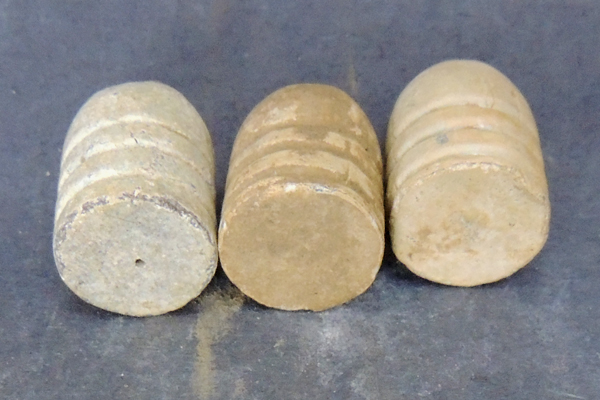

M2437...Gallagher carbine .50 cal. bullet. Solid base . Reference M&M443V T&T 75. TS 01-041

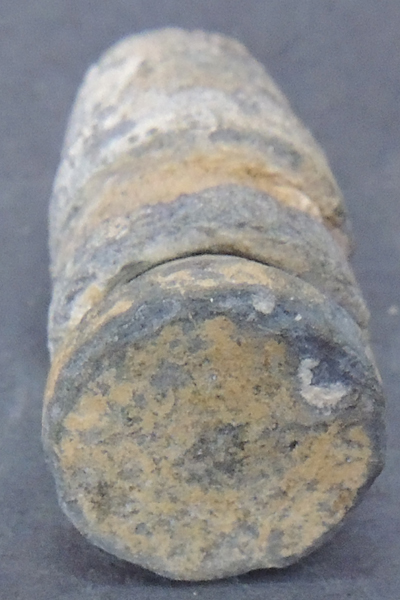

M2438...Rifled musket, Shaler 3 part expanding bullet, .58 cal. Three part, flat base, tall bottom band Ref: M&M 522, T155D

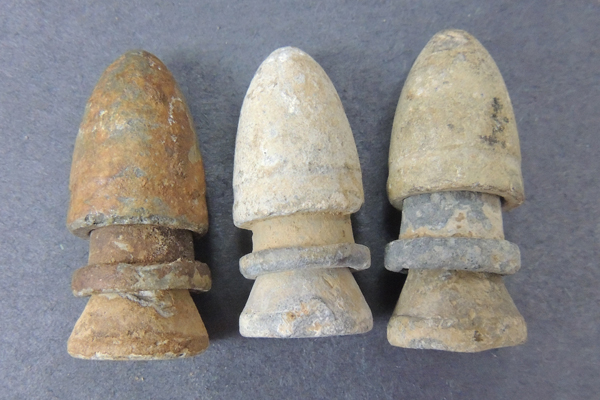

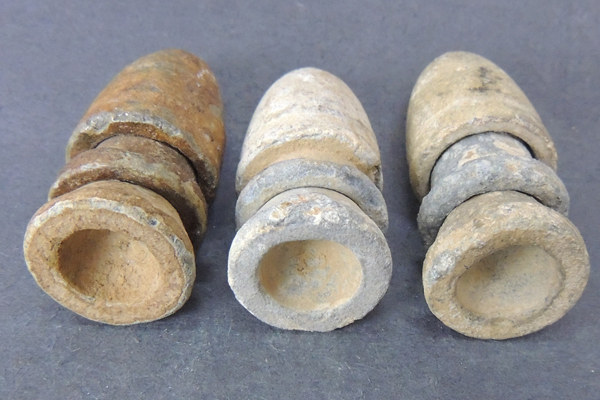

M2439...Rifled musket, Shaler 3 part expanding bullet .58cal. Three part, dished cavity, short bottom band Ref: M&M 520, T155C

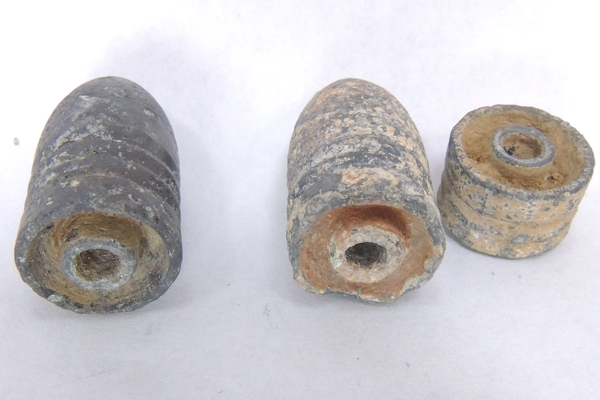

M2440.01...Rifled musket, Gardinier explosive bullet, .58 cal. J Gardinier and patent date is inscribed on the base.The inner chamber held an explosive charge.Ref: M&M 532, T&T 154A
M2440.02...Rifled musket, Gardinier explosive bullet, .58 cal. J Gardinier and patent date is inscribed on the base.This one was cut open in the field presumably to analyze the mechanics of this explosive bullet

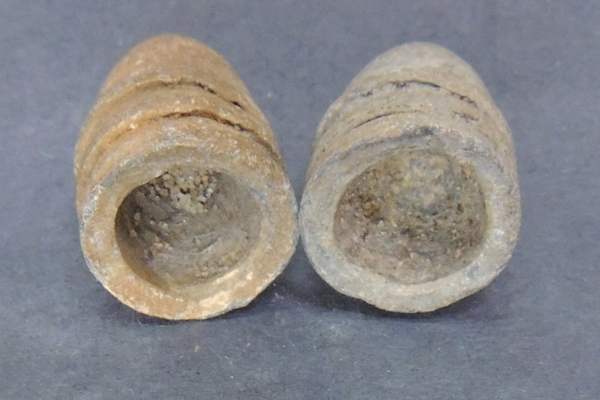

M2441...Rifled musket, Carcano .54cal. Sometimes called "Garibaldi" Cone cavity, 2 raised rings .53 x .97 Ref: M&M 201, T&T 142. S06.185

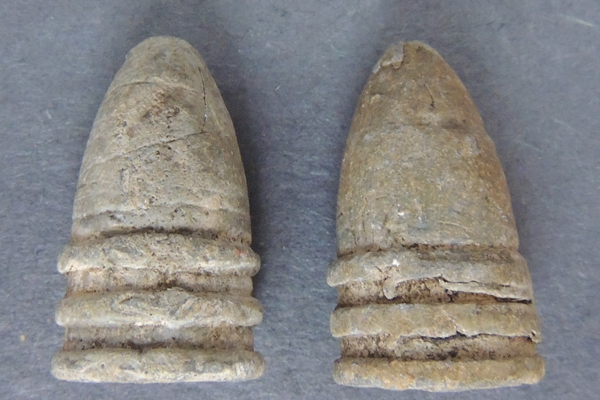

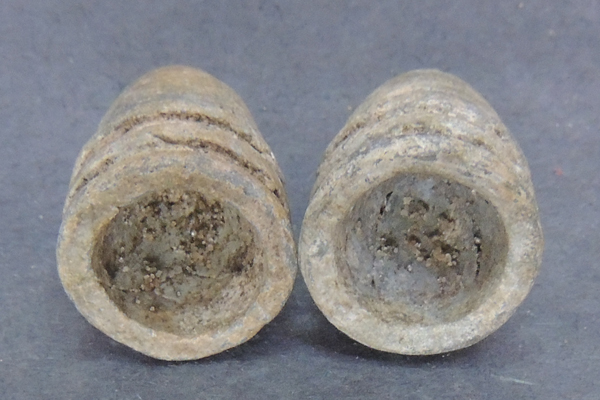

M2442...Rifled musket, Carcano .58 cal. sometimes called "Garibaldi" Cone cavity, 2 raised rings .575 x 1.0 Ref: M&M 200, T&T 178. S06-186

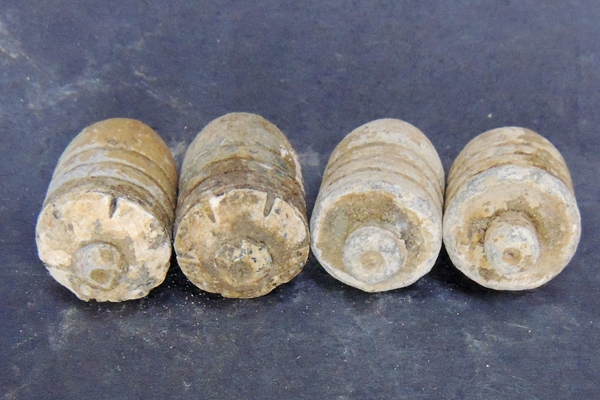

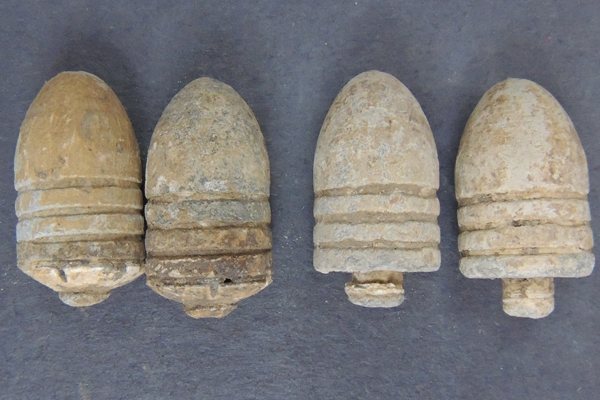

M2443...Rifled musket, Williams type I cleaner bullet, stud only, .58cal. Stud only to hold abrasive material, 3 grooves Ref: M&M 537, T&T 157...

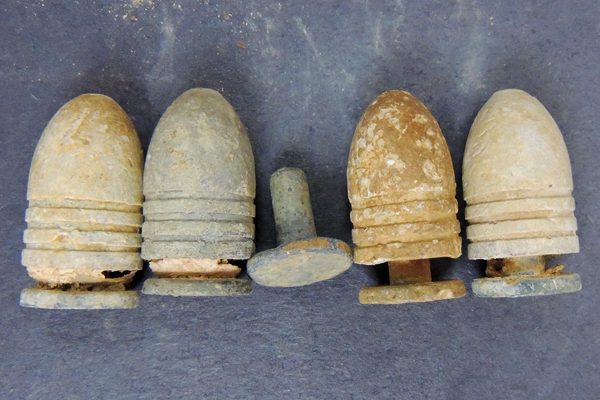

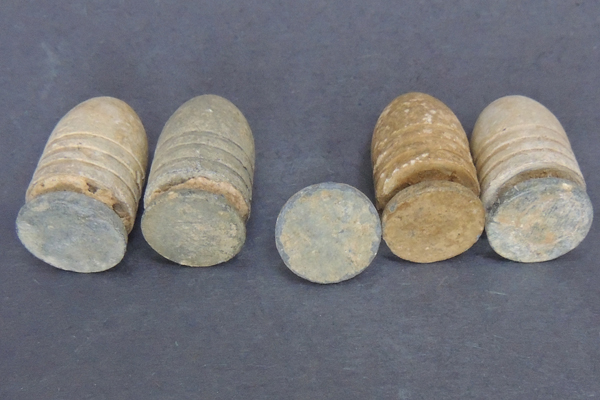

M2444...Rifled musket, Williams type II cleaner bullet, washer, .58cal. Washer held abrasive material, 3 grooves Ref: M&M 538, T&T 158...

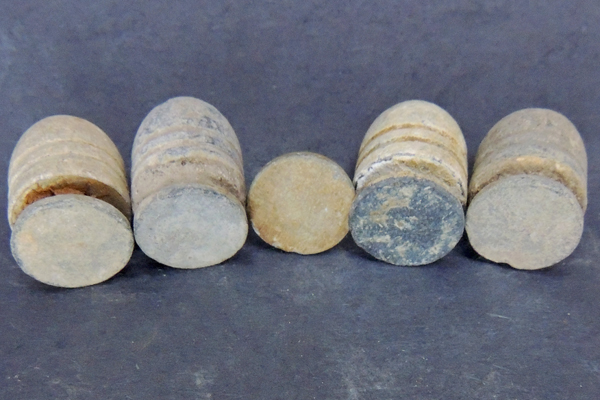

M2445...Rifled musket, Williams type III, .58cal. Washer held abrasive material, 2 grooves Ref: M&M 540, T&T 159...

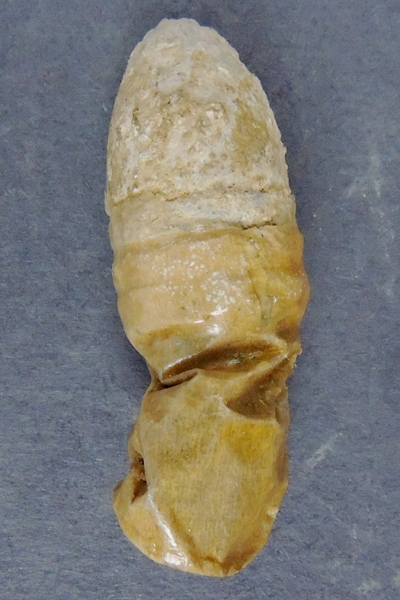

M2446...Minie ball" .58 cal.original cartridge The minie ball was packed in this paper cartridge at the arsenal.This remarkable example Recovered: in the 1960's still has the original cartridge Ref: M&M 341 series

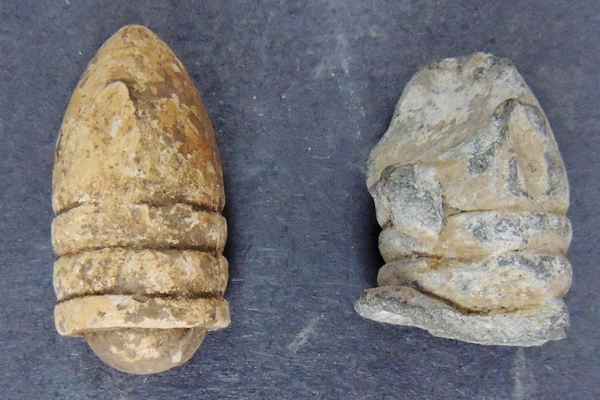

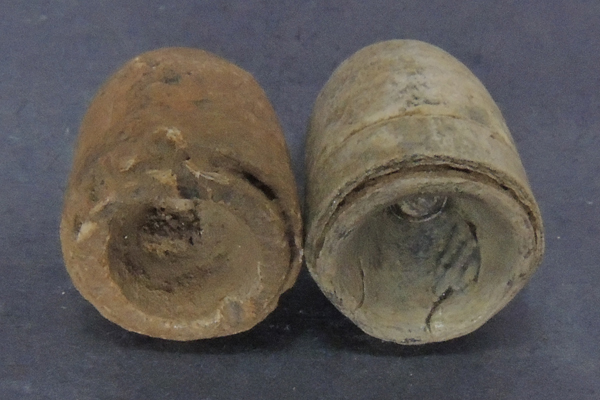

M2447...Bullets collision, 58 cal three ring and 44 cal pistol

M2448...Bullet collision two 58 cal three ringers, midair collision

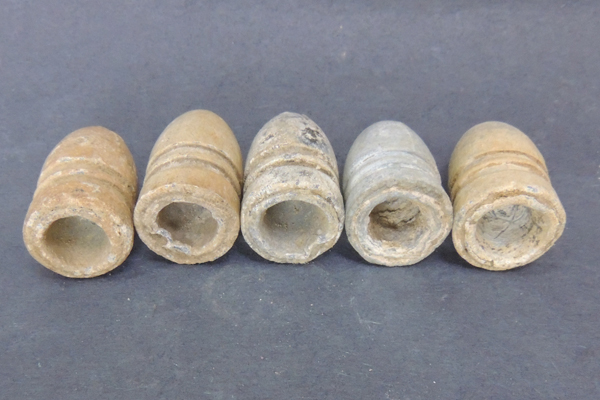

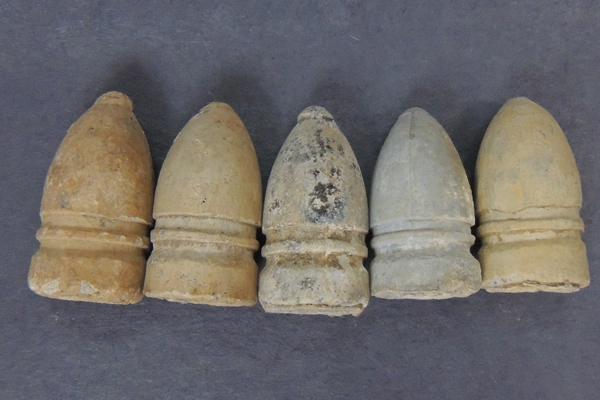

M2449...Rifled musket, Gardner, .58 cal. Cast with flange, then pressed gives impression of two part bullet Mold spruce on nose is sometimes not cut. Ref: M&M 170, T&T 162C

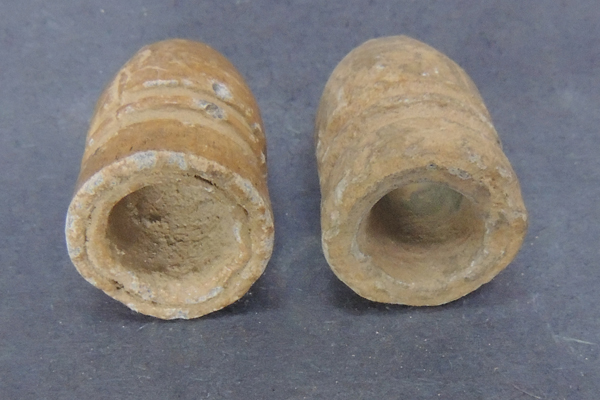

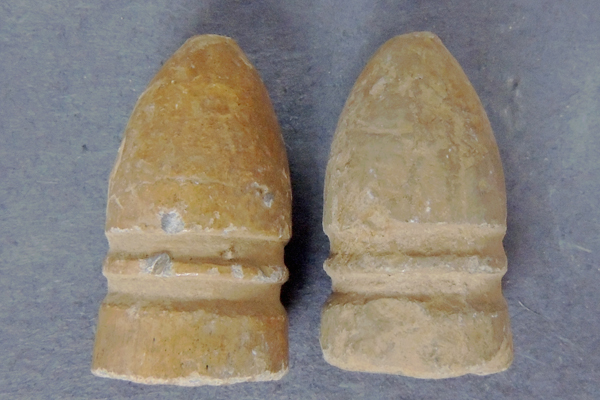

M2450...Rifled musket, Gardner, .58 cal. Cast with flange, then pressed gives impression of two part bullet dot in cavity. Ref: M&M 170, T&T 162C

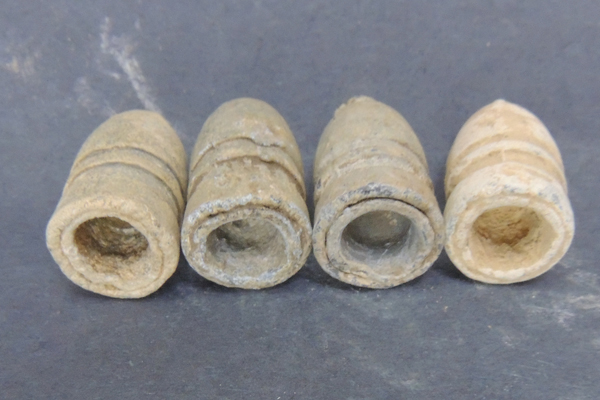

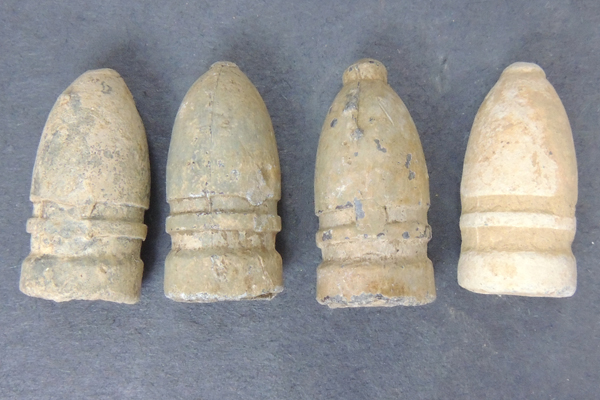

M2451...Rifled musket, Gardner .54cal. Cast with flange, then pressed gives impression of two part bullet All Gardners are nose cast and the sprue was cut off at the factory.Nose sprue on some are not cut .Ref: M&M 169, 171, T&T 162C

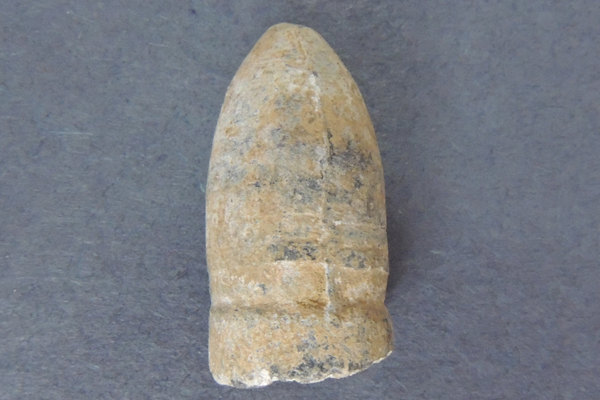

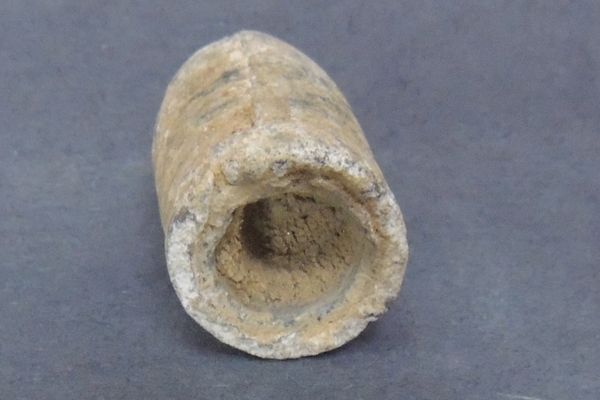

M2452...Rifled musket, Gardner .58 cal. Made from recycled lead, cast with flange, then pressed gives impression of two part bullet Ref: M&M 173, T&T 162B

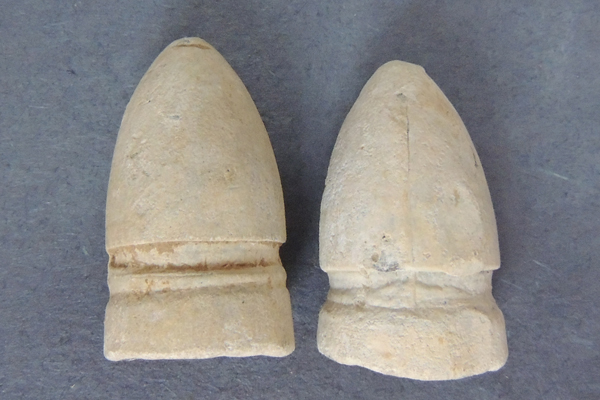

M2453..Rifled musket, Gardner .58 cal. "one ring" Cast with lip, then pressed gives impression of two part bullet Absence of second ring, is actually flaw in machining the pattern for this bullet.There is a second ring, it was not cut properly.Ref: M&M 176, T&T 162A

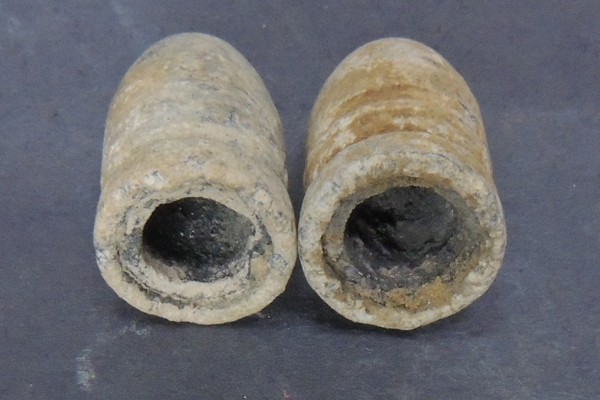

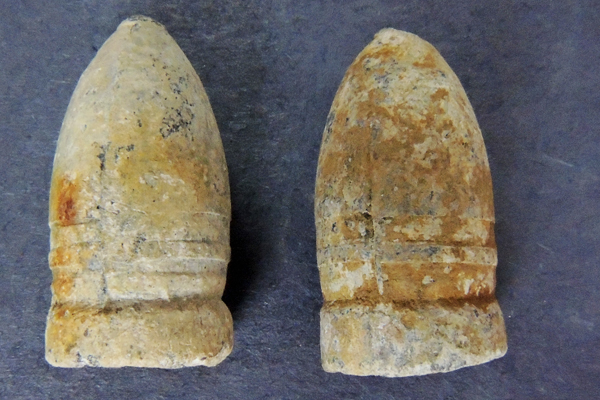

M2454...Rifled musket, Gardner .58 cal. "three ring" Cast with lip, then pressed gives impression of two part bullet Appearance of third ring, is actually flaw in machining the pattern for this bullet.Ref: M&M 173 variant, T&T not listed

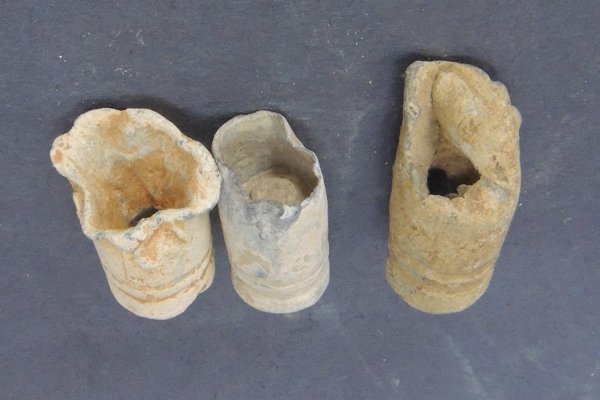

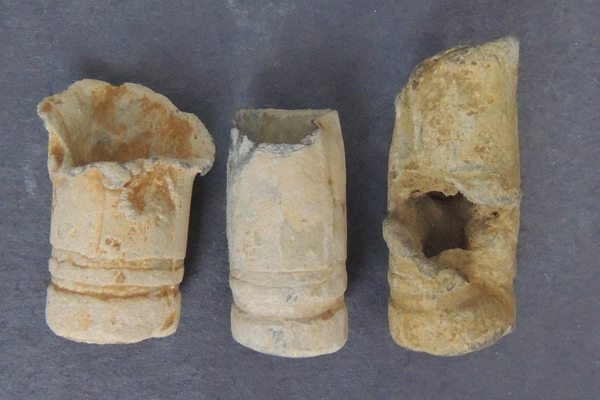

M2455...Rifled musket, Gardner, "blow out" Two part bullet, inserted cavity, 2 grooves. Blow out is caused by weak metal, charge blew through the bullet.

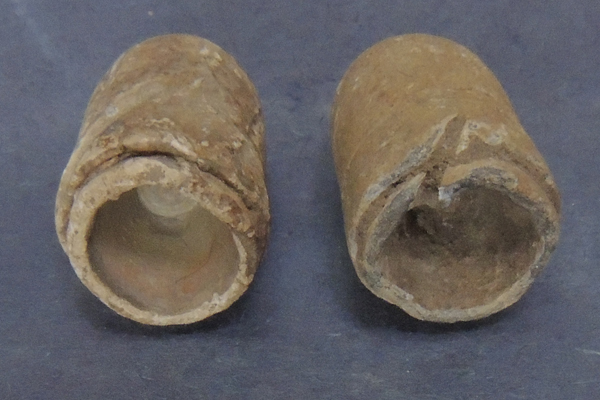

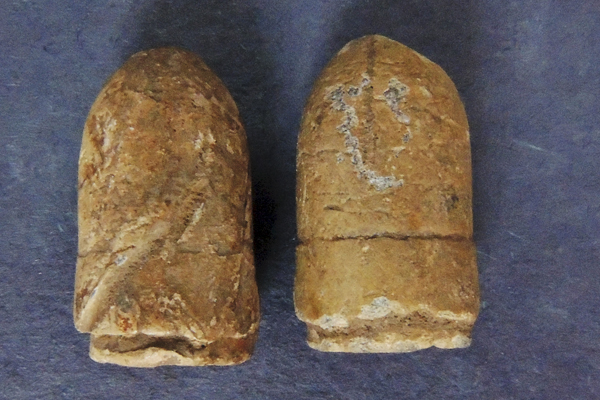

M2456...Rifled musket, .Anderson Enfield "Tom Greene" 58cal. Smooth side pressed lip, manufacture in Tyler Texas using variation of Gardner method, but without compression rings. long pattern .Ref: M&M 657 T&T 164.

M2457...Rifled musket, Anderson Enfield "Tom Greene" .58cal. Smooth side pressed lip, manufacture in Tyler Texas using variation of Gardner method, but without compression rings. short pattern .Ref: M&M 657 T&T 164.

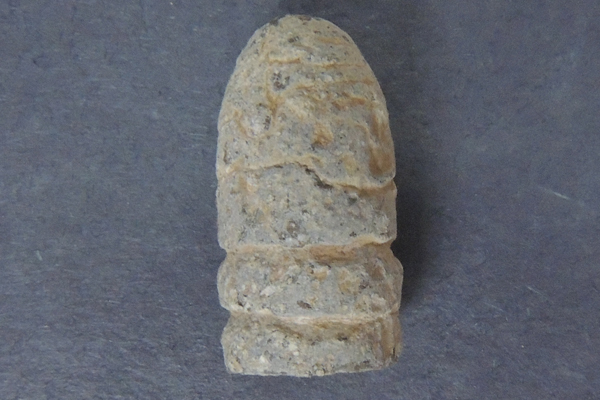

M2458...Rifled musket, .50 cal. Macon Arsenal flat base, 2 grooves, tall pattern, similar to "Wilkinson", these were made at Macon Arsenal Ref: M&M 106, T&T 70 variant

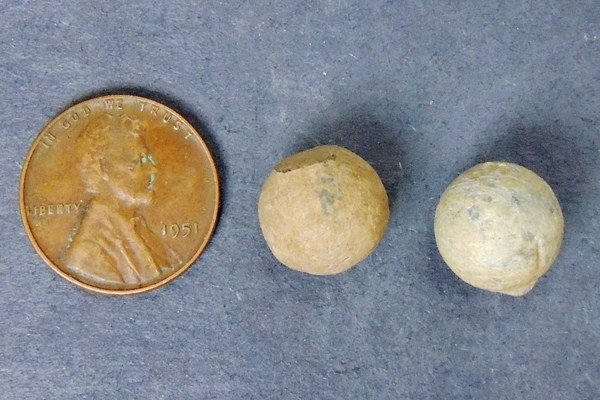

M2459...Smoothbore ball approx..44 cal.Primary use of the .44 cal.ball field made for pistols. The Colt revolver pistol "kits" included a mold for casting both the projectile (M&M 480) and these balls. Ref: M&M 550 series, T&T 54B

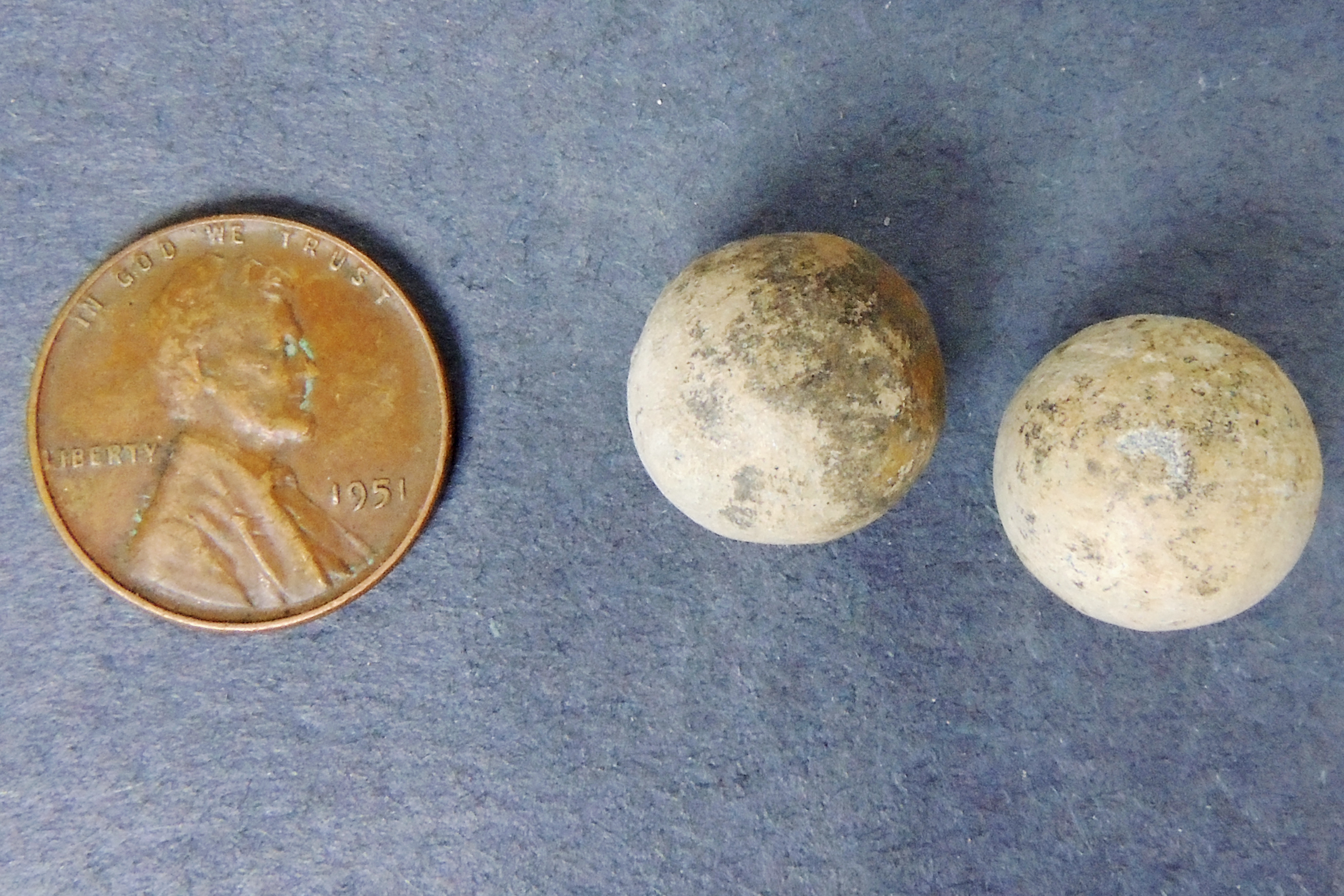

M2460...Smoothbore ball approx., .54cal. This ball was easy to make and could be used in the model 1841 rifle, although this weapon was intended to use rifled projectiles. Ref: M&M 550 series, T&T 127.

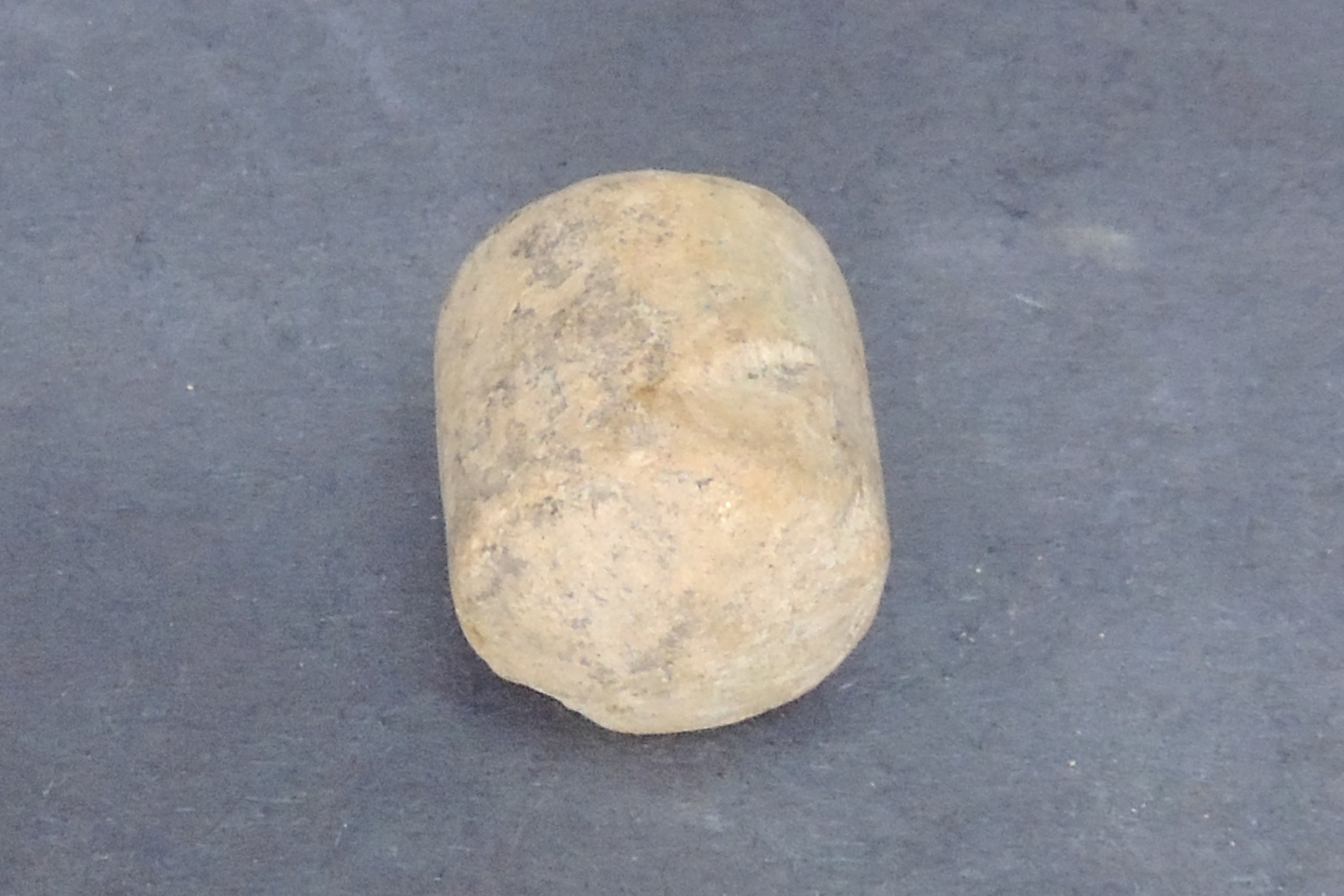

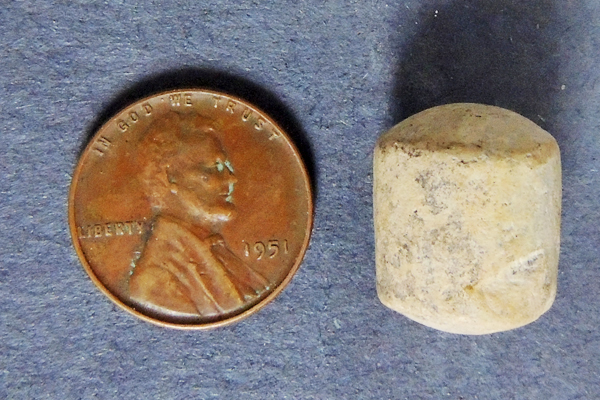

M2461...Slug ball, .54cal. Rounded both ends, no grooves Ref: M&M 152 variant, T&T not listed

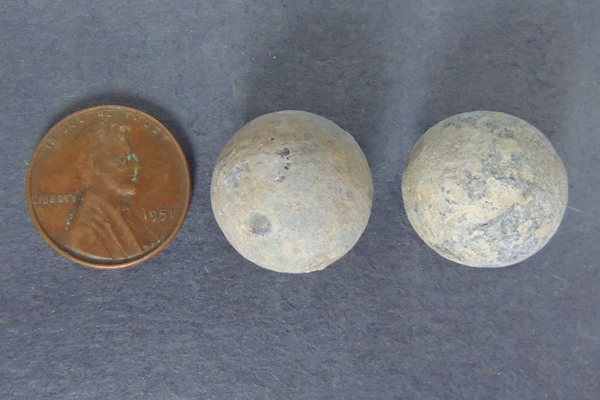

M2462... Smoothbore ball approx. .69 cal. Intended for the model 1842 smoothbore. Ref: M&M 550 series, T&T 182.

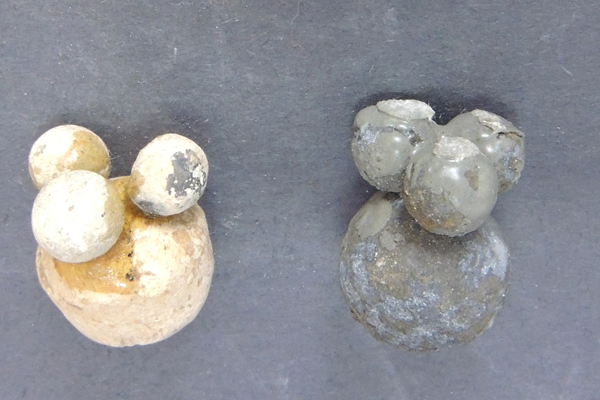

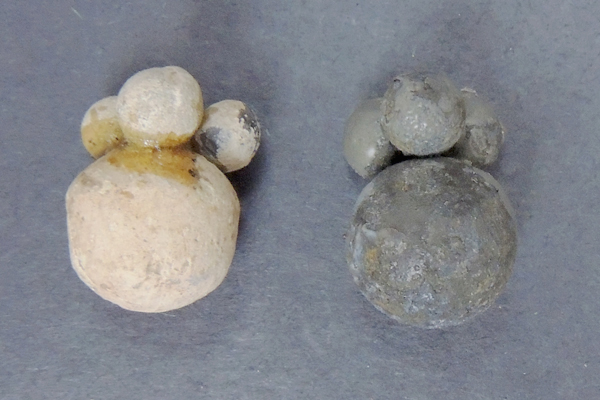

M2463.01...Ball and Buck, .69 cal ball with 3 "buck" balls Held together from the packaging, these are glued together. Black one came from a river. Ref: M&M 550 or 551, T&T 183.
M2463.02...Ball and Buck, .69 cal ball with 3 "buck" balls Held together from the packaging, these are glued together. Black one came from a river. Ref: M&M 550 or 551, T&T 183.

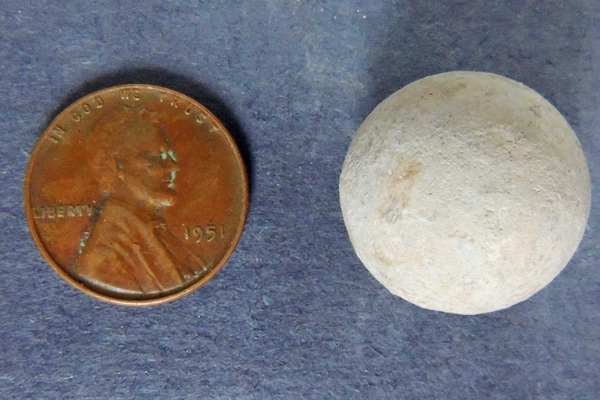

M2464...Smoothbore ball approx. .71 cal Intended for a foreign smoothbore, from Shiloh. Ref: M&M 550 series, T&T not listed

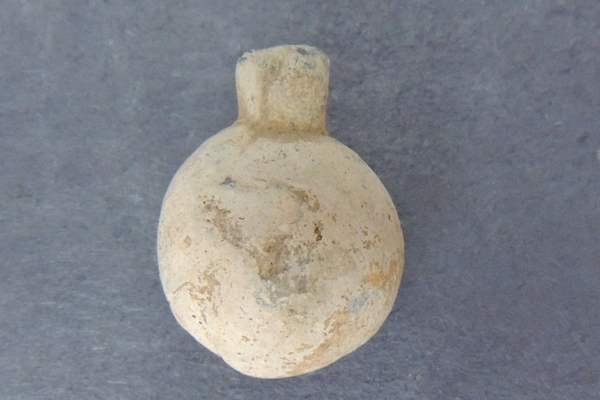

M2465...Smoothbore ball approx. .69 cal. This is field casting, sprue was not cut.

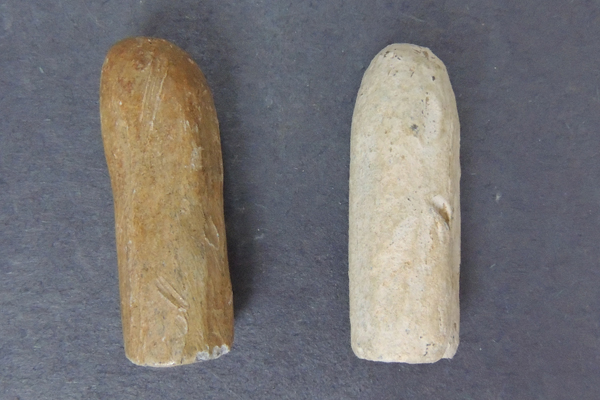

M2466...Whitworth Cylindrical .45cal. Cone cavity no grooves, fired example shows hex pattern from rifling.These bullets were actually cylindrical, then were forced into the hex shaped barrel.The guns were slow to load because the muzzle loading required considerable pressure.Ref: M&M 251, T&T 67.

To Sell.

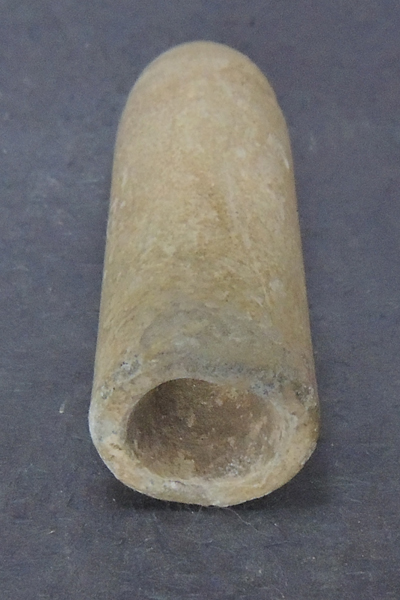

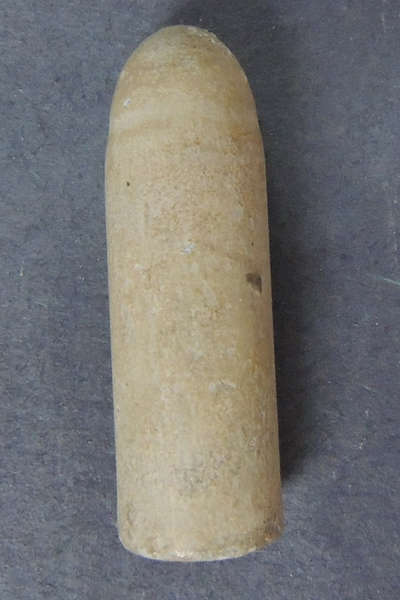

M2467...Whitworth Cylindrical .45cal. Cone cavity no grooves, unfired example is dropped. Ref: M&M 250, T&T 64.

To Sell.

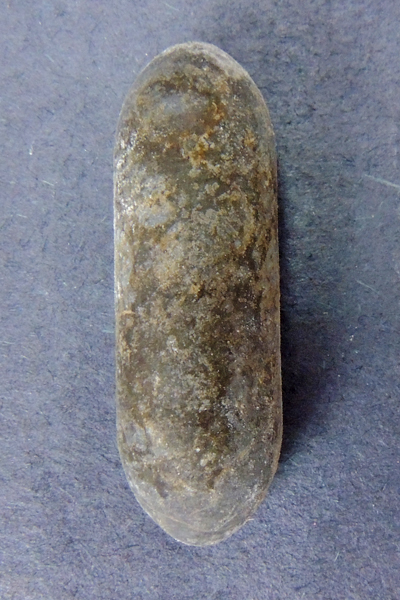

M2468...Double ended bullet, .45 cal. Rounded both ends, no grooves Ref: M&M 159, T&T 68.

To Sell.

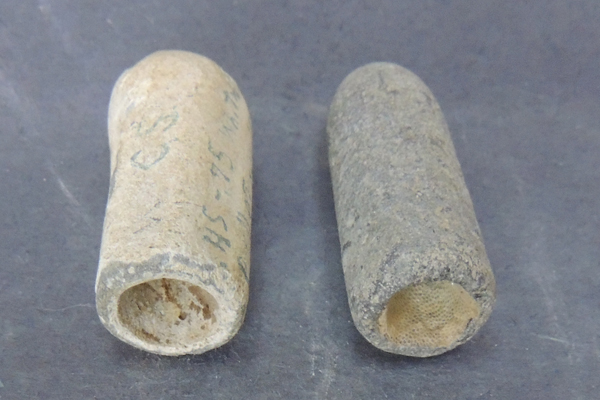

M2469...Whitworth Cylindrical .45cal. Fired examples show flat sides from rifling

To Sell.

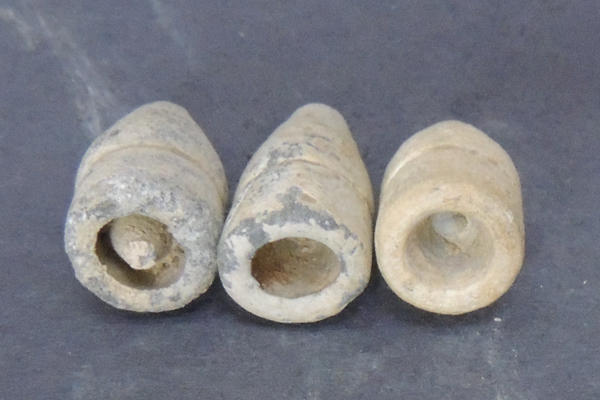

M2470.01...Dimick, .40 Cal One groove, pointed straight nose, tall cavity with teat. ullet has been erroneously identified as Swiss Chaussar. It was made by Horace Dimick, St Louis, Missouri. Ref: M&M 278, T&T 210A
M2470.02...Dimick, .40 Cal One groove, pointed straight nose, tall cavity with teat. ullet has been erroneously identified as Swiss Chaussar. It was made by Horace Dimick, St Louis, Missouri. Ref: M&M 278, T&T 210A

To Sell.

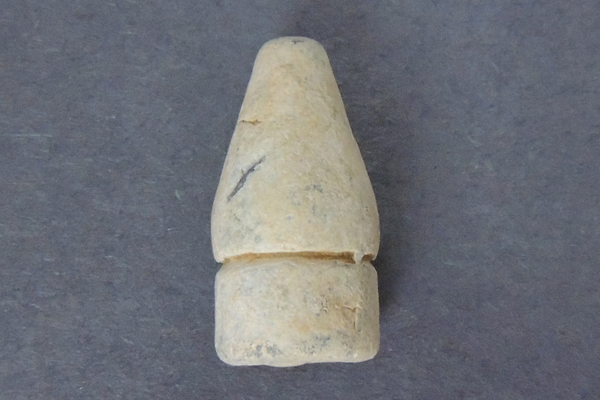

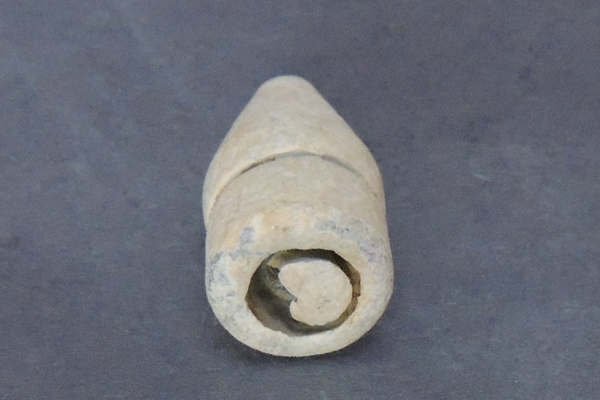

M2471...Dimick, .48 Cal One groove, pointed straight nose, tall cavity with teat. Bullet has been erroneously identified as "Swiss Chaussar.It was made by Horace Dimick, St Louis, Missouri .Ref: M&M 277, T&T 210B

To Sell.

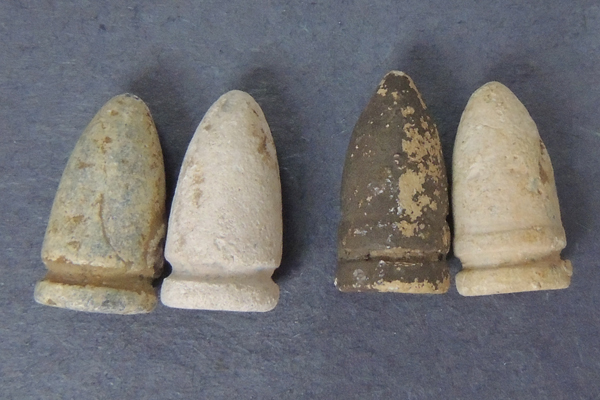

M2472.01...Maynard carbine, .36 cal.CSA Flat base, 1 groove.Ref: M&M 84, T&T 77.
M2472.02...Maynard carbine, .36 cal.CSA Flat base, 1 groove.Ref: M&M 84, T&T 77.
M2472.03...Maynard carbine, .36 cal.CSA Flat base, 1 groove.Ref: M&M 84, T&T 77.
M2472.04...Maynard carbine, .36 cal.CSA Flat base, 1 groove.Ref: M&M 84, T&T 77.

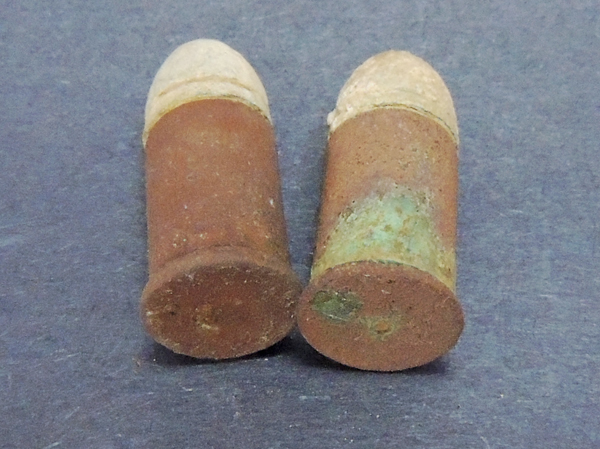

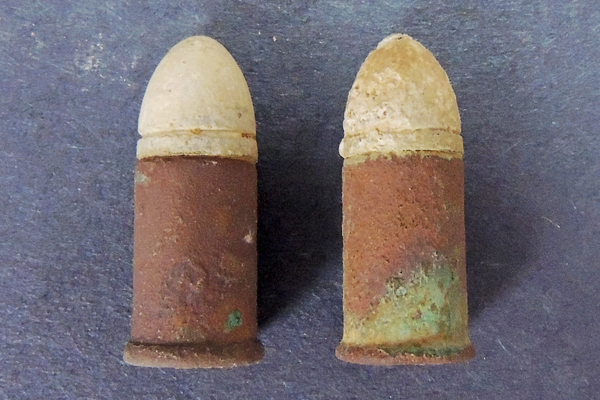

M2473...M2473...Smith & Wesson revolver , .32 cal metallic cartridge Short pattern, rimfire.Diameter .32, Length .85in., with cartridge .85 Ref: Stelma not listed, M&M not listed, T&T not listed M&M cartridge 156,
