	Civil War Weapons, all pre 1898
	by Harry Ridgeway

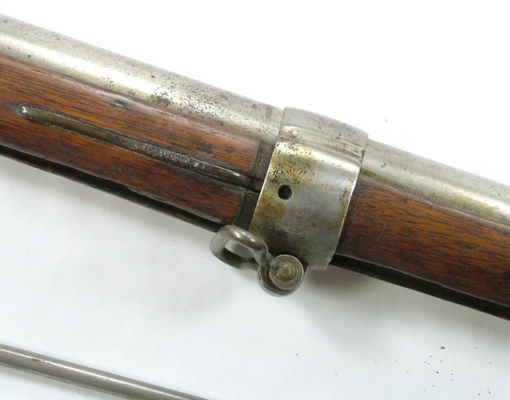

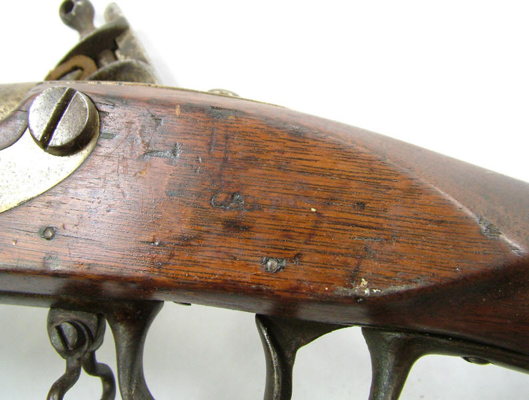

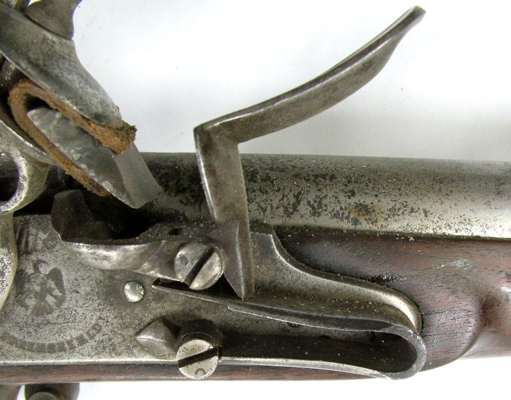

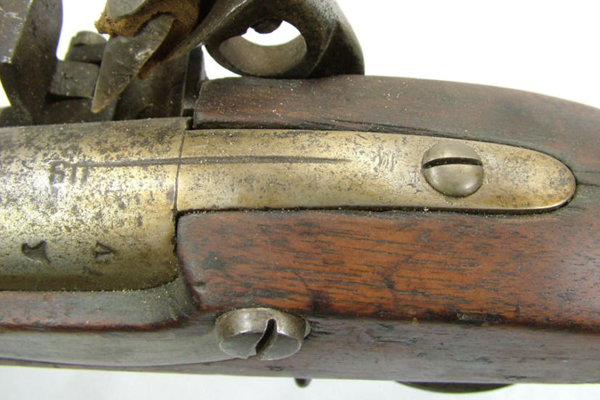

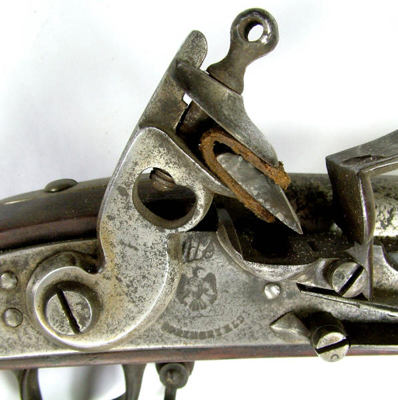

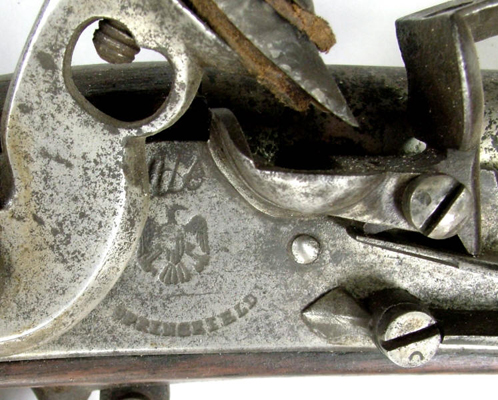

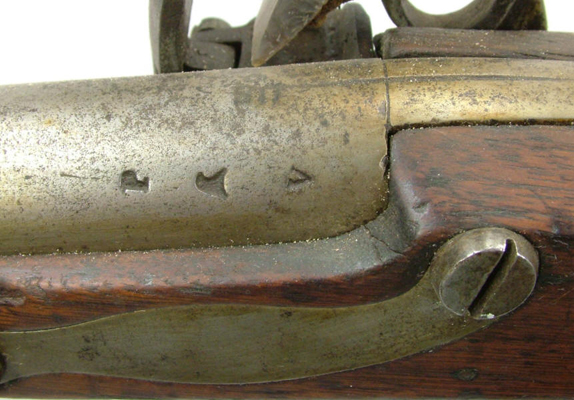

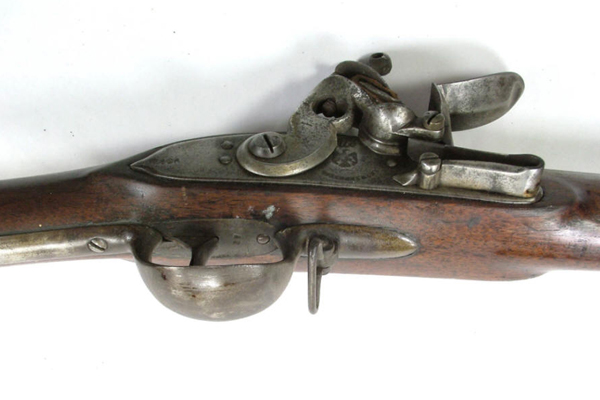

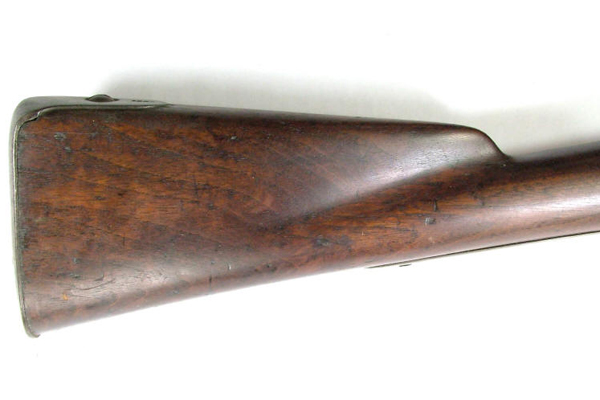

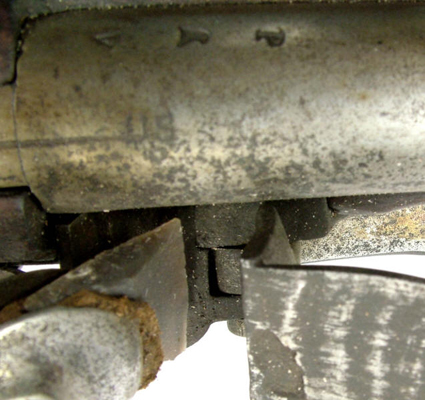

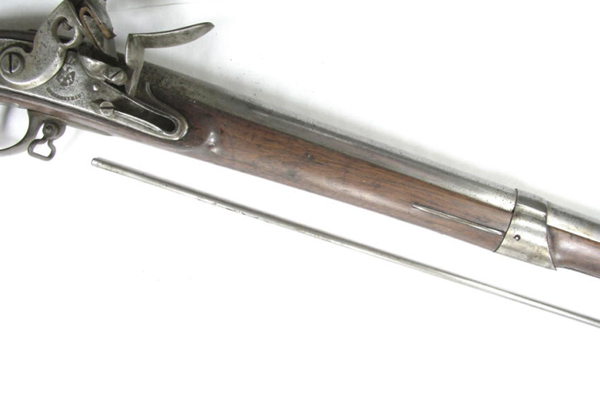

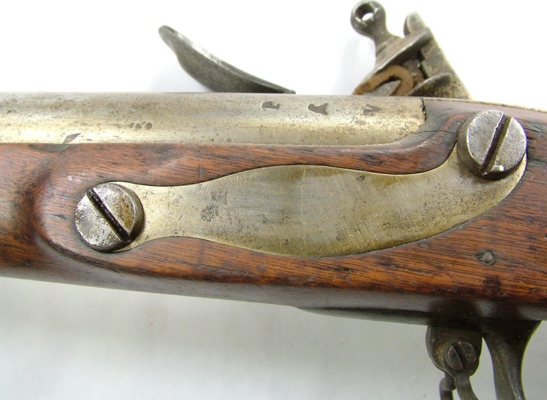

Smoothbore flintlock musket, Springfield, 1808, .69cal. . This is original flintlock musket, .69cal.smoothbore, and is included in the general classification of those muskets produced from 1795 to 1814, this musket, dated 1808 was produced near the end of the run designated as Type II. Manufactured by Springfield Armory, Springfield, Massachusetts, Marks: US in script, eagle facing right and is stylized and rigid, SPRINGFIELD in horizontal curve, date, 1808 appears horizontal behind the lock and on the buttplate, barrel is marked P, eagle head, Vand US. Model features: Hammer is flat faced, beveled edge with straight spur, (top jaw guide), frizzen has a straight toe, frizzen spring has a spear point tip, pan is rounded and held in place with a screw also securing the frizzen, lock is flat with beveled edges, and a small projecting teat at the rear, trigger guard is semi-pointed on the front finial, and rounded at the rear, frizzen spring is outside of the lock, round barrel hasthree bands and no sight, forward band serves as nose guard and secures the ramrod, two strap hooks on swivel secured by screws , ramrod is button head , no threads on the end and is shorter than the barrel, stock butt is fluted with narrow wrist, Research Center: Weapon1110-Musket-Early-Springfield-1808 . Reference: Flayderman 9A-006. Barrel length, 45 in. Details click: http://relicman.com/weapons/Weapon1110-Musket-Early-Springfield-1808.html

W1298 ### Smoothbore flintlock musket, Springfield, 1808, .69cal. . This is original flintlock musket, .69cal.smoothbore, and is included in the general classification of those muskets produced from 1795 to 1814, this musket, dated 1808 was produced near the end of the run designated as Type II. Manufactured by Springfield Armory, Springfield, Massachusetts, Marks: US in script, eagle facing right and is stylized and rigid, SPRINGFIELD in horizontal curve, date, 1808 appears horizontal behind the lock and on the buttplate, barrel is marked P, eagle head, Vand US. Model features: Hammer is flat faced, beveled edge with straight spur, (top jaw guide), frizzen has a straight toe, frizzen spring has a spear point tip, pan is rounded and held in place with a screw also securing the frizzen, lock is flat with beveled edges, and a small projecting teat at the rear, trigger guard is semi-pointed on the front finial, and rounded at the rear, frizzen spring is outside of the lock, round barrel hasthree bands and no sight, forward band serves as nose guard and secures the ramrod, two strap hooks on swivel secured by screws , ramrod is button head , no threads on the end and is shorter than the barrel, stock butt is fluted with narrow wrist, Research Center: Weapon1110-Musket-Early-Springfield-1808 . Reference: Flayderman 9A-006. Barrel length, 45 in.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. Any excavated relics have been recovered from private property with owners permission.This information is available for research purposes, pictures may be used by permission only.

All weapons listed on this webpage are strictly manufactured before 1898, and are considered unsafe for actual use. These are antique collectible weapons of the Civil War (most are pre 1865, unless I state otherwise) and actual firing of these weapons is not recommended for any purpose whatsoever! Because these are all "pre 1898" weapons, no licenses are required for ownership, but common sense and good judgment should be applied.

Most information on this page is from:
Flayderman's Guide to Antique American Firearms......
John Thillman series, "Civil War Cavalry & Artillery Sabers...", or "Civil War Army Swords....".
