	Civil War Weapons, all pre 1898
	by Harry Ridgeway

Smoothbore flintlock musket, Springfield, Model 1816, .69cal. . Manufactured by Springfield Armory, Springfield, Massachusetts. Research Center: Weapon1202-Musket-Model-1816-Springfield . Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield.html

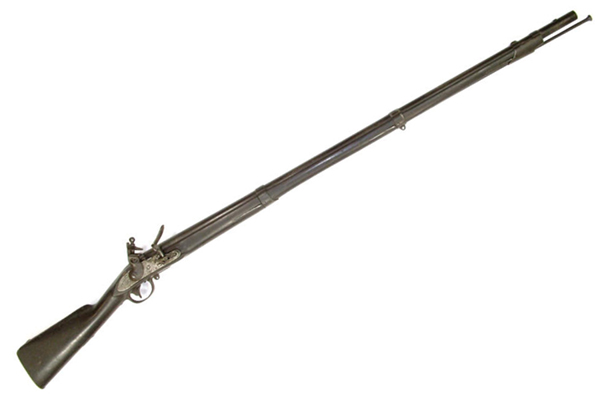

Smoothbore flintlock musket, Model 1816, Springfield, 1817, .69cal. . The Model 1816 was originally designed as a flintlock muzzleloader, .69cal.smoothbore, manufactured from 1816 through 1844. Most were converted to percussion in the 1850's, this was not converted. Manufactured by Springfield Armory, Springfield, Massachusetts. Marks: Lock is marked eagle over US in front of hammer, SPRING / FIELD and date, 1817 behind the lock, buttplate also dated, 1816, barrel is marked P, eagle head, Vand US. Model features: Rounded hammer versus the flat hammers of earlier models, lockplate is flat with a bevel the rear is rounded replacing the teat of earlier models, pan is iron and detachable secured with the frizzen by a single screw, iron buttplate is straight against the shoulder, iron strap opposite the lock, iron trigger guard, no rear sight, two iron barrel bands, two strap hooks with button or cylindrical swivel, large iron nose guard serves as third band and forward sight, bayonet lug on top of barrel at muzzle, steel ramrod is button head and threaded. The butt stock features a very low comb, which is the graceful curve between the butt and the wrist of the stock. Research Center: Weapon1202-Musket-Model-1816-Springfield-1817 . Reference: Flayderman 9A-193. Barrel length, 42 in. Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield-1817.html

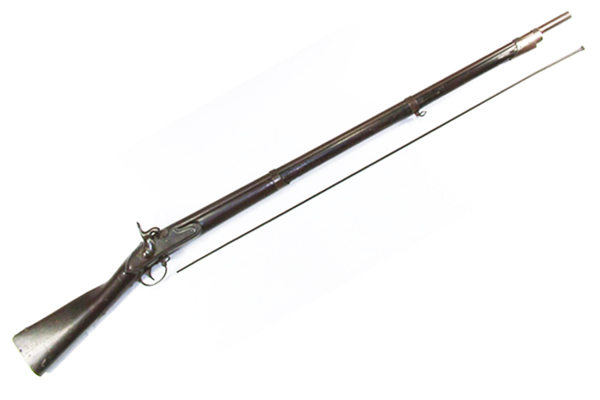

Smoothbore flintlock musket, Model 1816, Springfield, 1830, converted to percussion in 1850's using Belgian cone alteration, .69cal. . The Model 1816 was originally designed as a flintlock muzzleloader, .69cal. smoothbore, manufactured from 1816 through 1840. Most were converted to percussion in the 1850's, this one by the Belgian cone alteration, this method was performed at the arsenals. The flintlock pan was milled flat to the lock, the void filled with brass and the top milled flush with the lock, the flintlock hole was plugged, a nipple lug was placed on top of the barrel slightly to the side of lock, and a new hammer was placed to achieve the correct alignment. Manufactured by Springfield Armory, Springfield, Massachusetts. Marks: Lock is marked SPRING / FIELD / 1830 behind the hammer, with eagle head and US in front. Barrel is marked P, eagle head, and V, breech tang date is 1830. Buttplate is marked US. Trigger guard is marked DP and B. Lock strap is marked S, and one band is marked S. Two strong cartouches are in the wood opposite the lock. Model features: Iron buttplate is straight against the shoulder, iron strap opposite the lock, iron trigger guard, no rear sight, two iron barrel bands, two strap hooks with button or cylindrical swivel, large iron nose guard serves as third band and forward sight, bayonet lug on top of barrel at muzzle, steel ramrod is button head and threaded. The butt stock features a very low comb, which is the graceful curve between the butt and the wrist of the stock, Research Center: Weapon1202-Musket-Model-1816-Springfield-1830 . Reference: Flayderman 9A-200. Barrel length, 42 in. Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield-1830.html

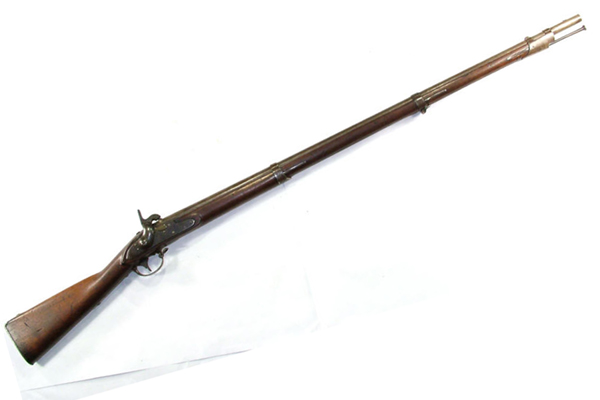

Smoothbore flintlock musket, Model 1816, Springfield, 1831, converted to percussion using bolster alteration by Hewes & Phillips, 1862, .69cal. . The Model 1816 was originally designed as a flintlock muzzleloader, .69cal. smoothbore, manufactured from 1816 through 1840. Most were converted to percussion in the 1850's, this one by the bolster method, this alteration was performed by Hewes & Phillips, Newark New Jersey in 1862. The breech of the barrel was simply cut away entirely and replaced with a new section reworked with a bolster with cleanout screw and nipple, a hammer shaped for the new alignment was installed. and a three leaf rear sight was installed Manufactured by Springfield Armory, Springfield, Massachusetts. Marks: Lock is marked SPRING / FIELD / 1831 behind the hammer, with eagle head and US in front. Barrel is marked VP over eagle head, breech tang was marked with date of conversion, 1862. The bolster is marked H & P. Buttplate marked US. Inspector marks on trigger guard, lock plate bar, and distinct round cartouche in the wood. Model features: Iron buttplate is straight against the shoulder, iron strap opposite the lock, iron trigger guard, no rear sight originally, two iron barrel bands, two strap hooks with button or cylindrical swivel, large iron nose guard serves as third band and forward sight, steel ramrod is button head and threaded. The butt stock features a very low comb, which is the graceful curve between the butt and the wrist of the stock. Research Center: Weapon1202-Musket-Model-1816-Springfield-1831-Hewes-Phillips-1862 . Reference: Flayderman 9A-265. Barrel length, 42 in. Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield-1831-Hewes-Phillips-1862.html

Smoothbore flintlock musket, Model 1816, Springfield, 1835, converted to percussion in 1850's using bolster alteration, .69cal. . The Model 1816 was originally designed as a flintlock muzzleloader, .69cal. smoothbore, manufactured from 1816 through 1840. Most were converted to percussion in the 1850's, this one by the bolster method, this alteration was performed by a private contractor. The breech of the barrel was simply cut away entirely and replaced with a new section reworked with a bolster with cleanout screw and nipple, a hammer shaped for the new alignment was installed. Manufactured by Springfield Armory, Springfield, Massachusetts. Marks: Lock is marked SPRING / FIELD / 1835 behind the hammer, with eagle head and US in front. Barrel is marked VP over eagle head, breech tang was not marked. Buttplate marked US. Inspector mark EA and H on trigger guard, S on lock plate bar, and two distinct cartouches in the wood. Model features: Iron buttplate is straight against the shoulder, iron strap opposite the lock, iron trigger guard, no rear sight, two iron barrel bands, two strap hooks with button or cylindrical swivel, large iron nose guard serves as third band and forward sight, bayonet lug on top of barrel at muzzle, steel ramrod is button head and threaded. The butt stock features a very low comb, which is the graceful curve between the butt and the wrist of the stock. Research Center: Weapon1202-Musket-Model-1816-Springfield-1835 . Reference: Flayderman 9A-200. Barrel length, 42 in. Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield-1835.html

Smoothbore flintlock musket, Model 1816, Springfield, 1838, converted to percussion in 1850's using Belgian cone alteration, .69cal. . The Model 1816 was originally designed as a flintlock muzzleloader, .69cal. smoothbore, manufactured from 1816 through 1840. Most were converted to percussion in the 1850's, this one by the Belgian cone alteration, this method was performed at the arsenals. The flintlock pan was milled flat to the lock, the void filled with brass and the top milled flush with the lock, the flintlock hole was plugged, a nipple lug was placed on top of the barrel slightly to the side of lock, and a new hammer was placed to achieve the correct alignment. Manufactured by Springfield Armory, Springfield, Massachusetts. Marks: Lock is marked SPRING / FIELD / 1838 behind the hammer, with eagle head and US in front. Barrel is marked P, eagle head, and V, breech tang date is 1838. Buttplate is marked US, Model features: Iron buttplate is straight against the shoulder, iron strap opposite the lock, iron trigger guard, no rear sight, two iron barrel bands, two strap hooks with button or cylindrical swivel, large iron nose guard serves as third band and forward sight, bayonet lug on top of barrel at muzzle, steel ramrod is button head and threaded. The butt stock features a very low comb, which is the graceful curve between the butt and the wrist of the stock. Research Center: Weapon1202-Musket-Model-1816-Springfield-1838 . Reference: Flayderman 9A-200. Barrel length, 42 in. Details click: http://relicman.com/weapons/Weapon1202-Musket-Model-1816-Springfield-1838.html

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. Any excavated relics have been recovered from private property with owners permission.This information is available for research purposes, pictures may be used by permission only.

All weapons listed on this webpage are strictly manufactured before 1898, and are considered unsafe for actual use. These are antique collectible weapons of the Civil War (most are pre 1865, unless I state otherwise) and actual firing of these weapons is not recommended for any purpose whatsoever! Because these are all "pre 1898" weapons, no licenses are required for ownership, but common sense and good judgment should be applied.
