	by Harry Ridgeway

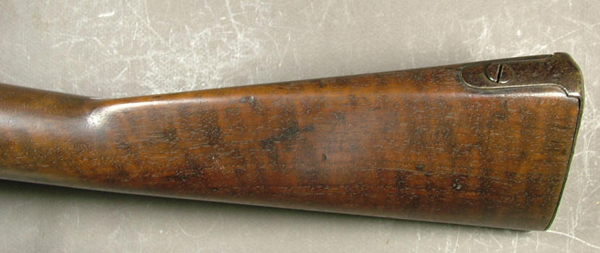

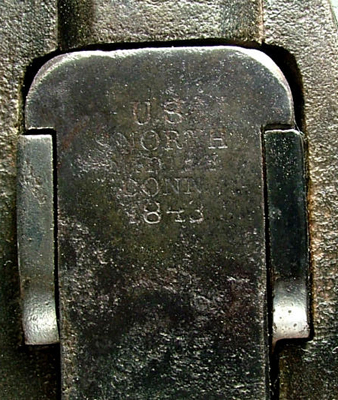

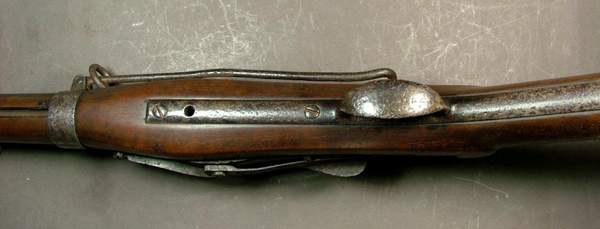

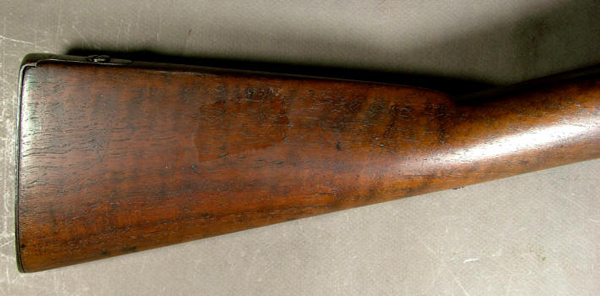

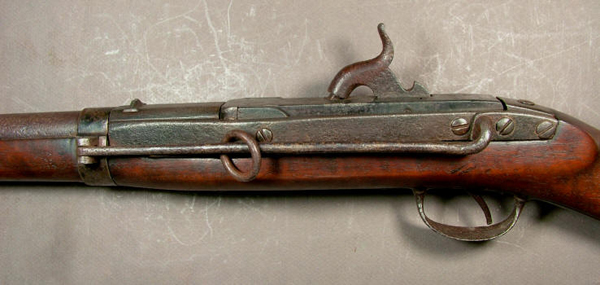

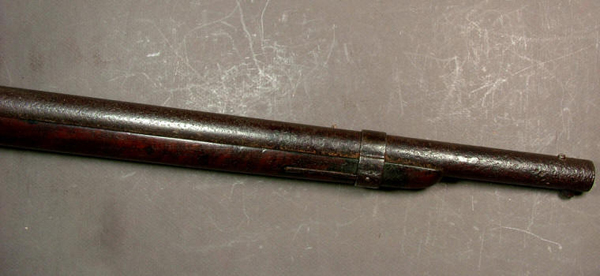

Breechloader, Hall smoothbore percussion carbine, Model 1843 Hall - North, 1843, .52cal. . Hall carbines and rifles representedthe earliest military effort to develop a breechloader, these shorter carbines, although made in smoothbore, were percussion primed from the beginning, this was the last in the series, manufactured by Simeon North, Middletown Connecticut, 1843 to 1853. A thumb lever on the right was used to pivot the entire breech above the barrel for loading, with a gas release hole below the breech to vent on firing. Carbine is single shot .52 cal smoothbore breechloader. Manufactured by Harper's Ferry Arsenal using John Hall's patent. Mark on top of frame: U.S. / S. NORTH / MIDLTN / CONN / 1843. Additional inspector mark JCL on barrel. Standard features include: iron buttplate with flat shoulder, iron trigger guard, thumb lever opens the breechblock, fixed iron sight, one flat band held by pins, iron nose cap serves as second band, saddle bar with riding ring, ramrod with button head and threads is used for cleaning. Research Center: Weapon2186-Breechloader-Hall-Carbine-1843 . Reference: Flayderman 9A-277. Barrel length 21in. Details click: http://relicman.com/weapons/Weapon2186-Breechloader-Hall-Carbine-1843.html

W0891 ### Breechloader, Hall smoothbore percussion carbine, Model 1843 Hall - North, 1843, .52cal. . Hall carbines and rifles representedthe earliest military effort to develop a breechloader, these shorter carbines, although made in smoothbore, were percussion primed from the beginning, this was the last in the series, manufactured by Simeon North, Middletown Connecticut, 1843 to 1853. A thumb lever on the right was used to pivot the entire breech above the barrel for loading, with a gas release hole below the breech to vent on firing. Carbine is single shot .52 cal smoothbore breechloader. Manufactured by Harper's Ferry Arsenal using John Hall's patent. Mark on top of frame: U.S. / S. NORTH / MIDLTN / CONN / 1843. Additional inspector mark JCL on barrel. Standard features include: iron buttplate with flat shoulder, iron trigger guard, thumb lever opens the breechblock, fixed iron sight, one flat band held by pins, iron nose cap serves as second band, saddle bar with riding ring, ramrod with button head and threads is used for cleaning. Research Center: Weapon2186-Breechloader-Hall-Carbine-1843 . Reference: Flayderman 9A-277. Barrel length 21in.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. Any excavated relics have been recovered from private property with owners permission.This information is available for research purposes, pictures may be used by permission only.

All weapons listed on this webpage are strictly manufactured before 1898, and are considered unsafe for actual use. These are antique collectible weapons of the Civil War (most are pre 1865, unless I state otherwise) and actual firing of these weapons is not recommended for any purpose whatsoever! Because these are all "pre 1898" weapons, no licenses are required for ownership, but common sense and good judgment should be applied.

Most information on this page is from:
Flayderman's Guide to Antique American Firearms......
John Thillman series, "Civil War Cavalry & Artillery Sabers...", or "Civil War Army Swords....".
