Ridgeway Civil War Research Center, A virtual examination of artifacts of the American Civil War
	Civil War Weapons, all pre 1898
	by Harry Ridgeway

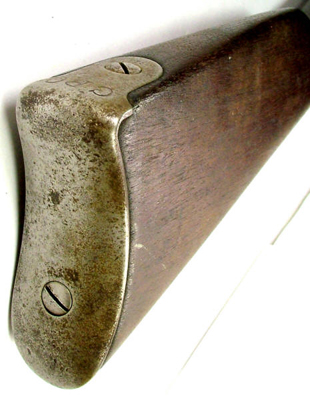

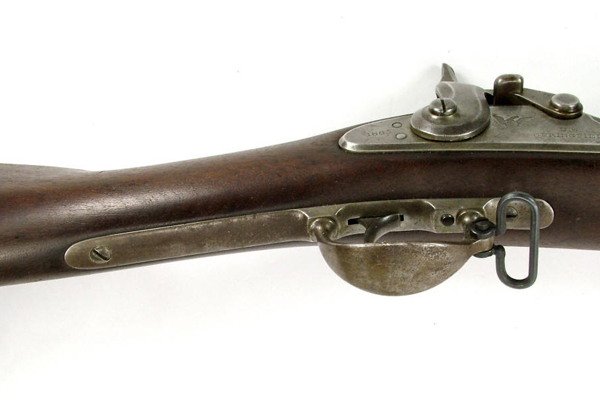

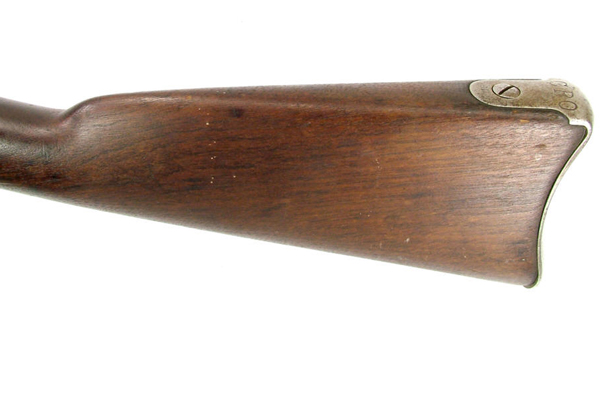

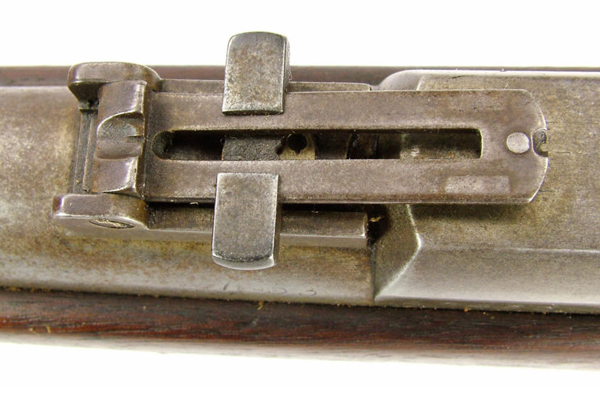

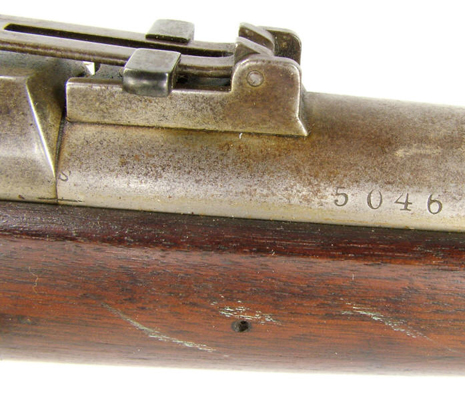

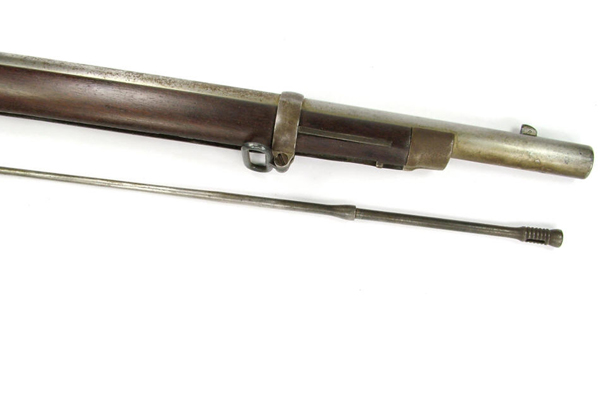

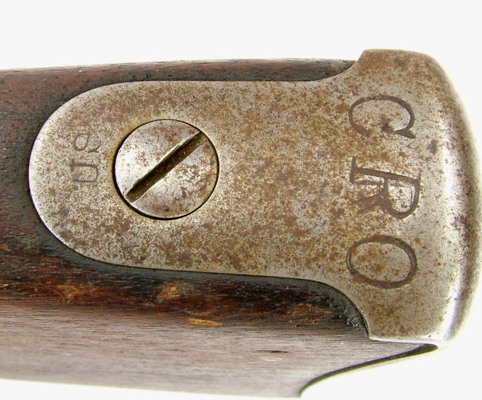

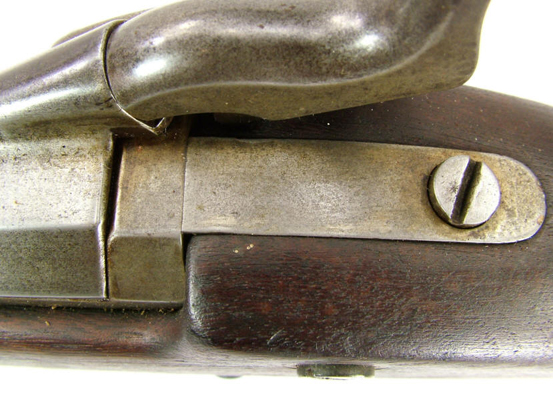

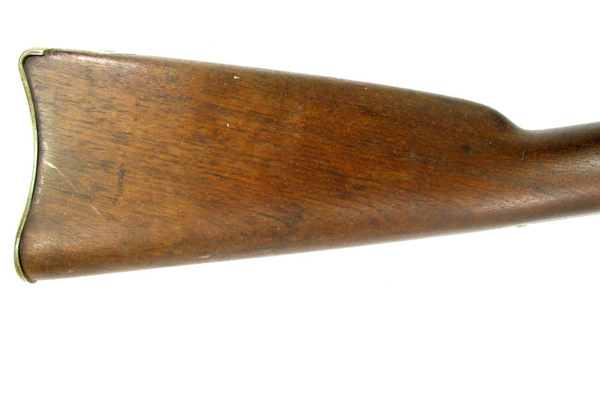

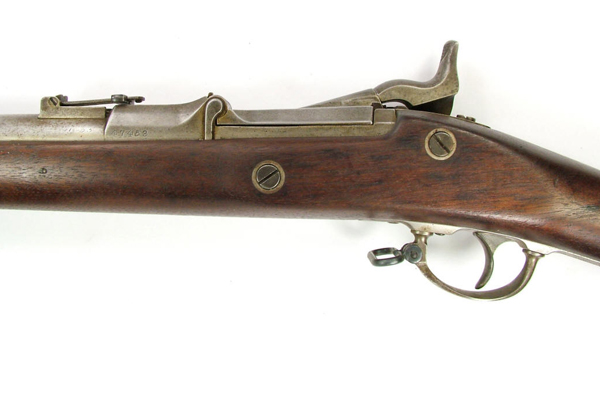

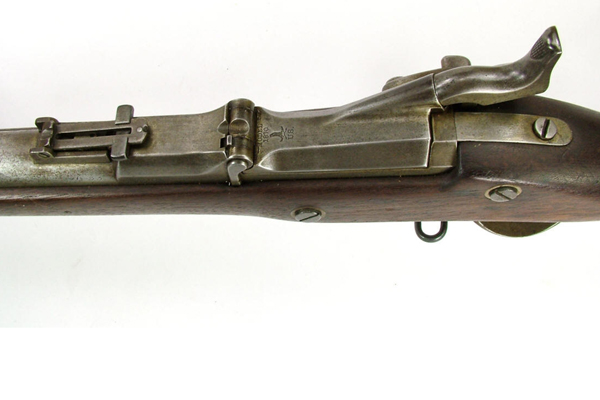

Model 1870, Trapdoor rifle, Springfield 1870 to 1873, .50cal. . The trapdoor featured a breech loading door to load .50 cal center-fire cartridges and the Model 1870 was the last to use this size cartridge. Manufactured by Springfield Armory,Springfield Mass. Marks: Lock is from the earlier Springfield muskets, and is marked 1863 behind the hammer with an eagle and US / SPRINGFIELD in front. Breechblock is marked Model / 1870 / and eagle head over crossed arrows, / US. Serial number appears on the left side of the breech and the barrel. Buttplate is marked US. Model features: Center fire breech loader, .50 cal., two bands, two strap hooks, single leaf long range site, ramrod is fitted with a slot, and fastens to the stock. Research Center: Weapon2902-Musket-Breechloader-Trap-Door-1870 . Reference: Flayderman 9A-361. Details click: http://relicman.com/Weapon2902-Musket-Breechloader-Trap-Door-1870.html

W1054 ### Model 1870, Trapdoor rifle, Springfield 1870 to 1873, .50cal. . The trapdoor featured a breech loading door to load .50 cal center-fire cartridges and the Model 1870 was the last to use this size cartridge. Manufactured by Springfield Armory,Springfield Mass. Marks: Lock is from the earlier Springfield muskets, and is marked 1863 behind the hammer with an eagle and US / SPRINGFIELD in front. Breechblock is marked Model / 1870 / and eagle head over crossed arrows, / US. Serial number appears on the left side of the breech and the barrel. Buttplate is marked US. Model features: Center fire breech loader, .50 cal., two bands, two strap hooks, single leaf long range site, ramrod is fitted with a slot, and fastens to the stock. Research Center: Weapon2902-Musket-Breechloader-Trap-Door-1870 . Reference: Flayderman 9A-361.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. Any excavated relics have been recovered from private property with owners permission.This information is available for research purposes, pictures may be used by permission only.

All weapons listed on this webpage are strictly manufactured before 1898, and are considered unsafe for actual use. These are antique collectible weapons of the Civil War (most are pre 1865, unless I state otherwise) and actual firing of these weapons is not recommended for any purpose whatsoever! Because these are all "pre 1898" weapons, no licenses are required for ownership, but common sense and good judgment should be applied.

Most information on this page is from:
Flayderman's Guide to Antique American Firearms......
John Thillman series, "Civil War Cavalry & Artillery Sabers...", or "Civil War Army Swords....".
