Ridgeway Civil War Research Center, A virtual examination of artifacts of the American Civil War
	Civil War Artillery
	by Harry Ridgeway

Research Center: Artillery1253-Ball12pdr

Smoothbore artillery projectile, spherical ball, bursting shell, "common" (standard), wood time fuze with 1.125in. opening, 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder. Fuze employed was a wood time fuze, fuze hole is smooth and tapered, the simple to make fuze could easily be hammered into place, Jones Fuzes pg. 2. Those with small openings, .875in., were generally manufactured before the war for the 12 pounder Coehorn Mortar. Those with larger opening, 1.125in. may have been intended for the longer range Napoleons, however it appears that the size distinction of the opening was of little concern and both sizes were manufactured and extensively used through out the war, principal use was southern. There are also thickness differences in the casting, and this many have been designed for "case shot" versus "common", however these shells are seldom found packed with case shot, so the presumption is that the use was "common", standard bursting charge without case shot balls, regardless of thickness of the casting. Perhaps southerners felt they could not spare the balls. Projectile measures: diameter 4.52in., weight 8lbs., empty approximately. Research Center: Artillery1253-Ball12pdr, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 30. Details click: http://relicman.com/artillery/Artillery1253-Ball12pdr.html.

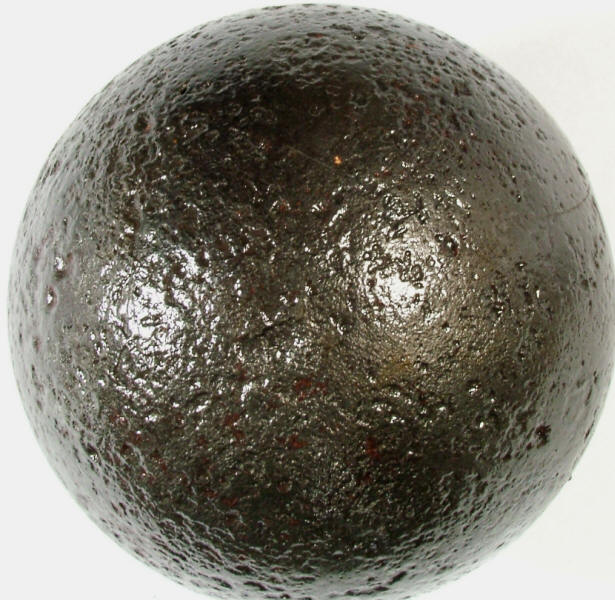

A2184...Smoothbore artillery projectile, spherical ball, bursting shell, "common" (standard), wood time fuze with 1.125in. opening, 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder. Fuze employed was a wood time fuze, fuze hole is smooth and tapered, the simple to make fuze could easily be hammered into place, Jones Fuzes pg. 2. Those with small openings, .875in., were generally manufactured before the war for the 12 pounder Coehorn Mortar. Those with larger opening, 1.125in. may have been intended for the longer range Napoleons, however it appears that the size distinction of the opening was of little concern and both sizes were manufactured and extensively used through out the war, principal use was southern. There are also thickness differences in the casting, and this many have been designed for "case shot" versus "common", however these shells are seldom found packed with case shot, so the presumption is that the use was "common", standard bursting charge without case shot balls, regardless of thickness of the casting. Perhaps southerners felt they could not spare the balls. Projectile measures: diameter 4.52in., 7.5lbs. (empty). Wood fuze missing. Projectile is disarmed, open fuze hole exposes empty interior. Recovered: Kennesaw, Georgia. Ref: Dickey & George, Field Artillery (1993 Edition), pg. 30.

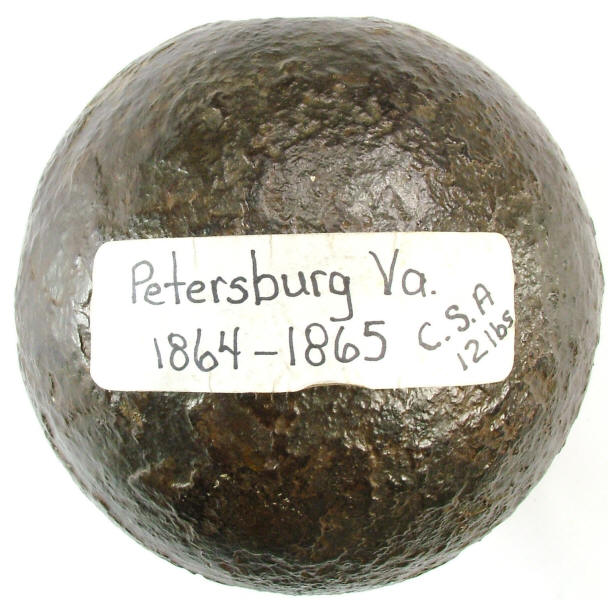

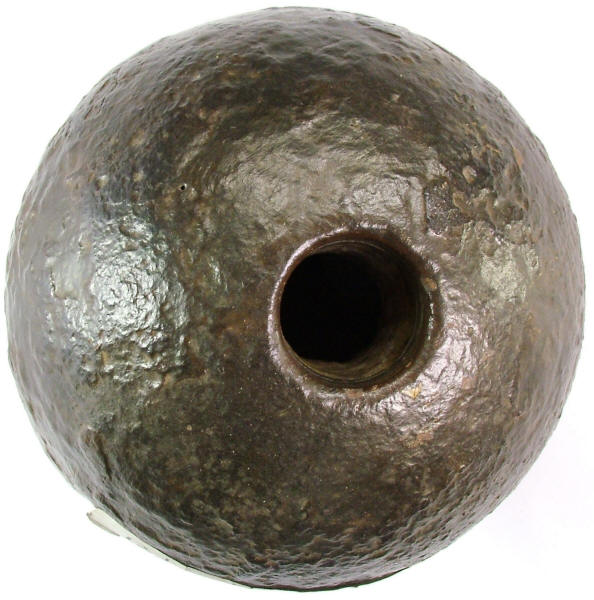

A2473...Smoothbore artillery projectile, spherical ball, bursting shell, "common" (standard), wood time fuze with 1.125in. opening, 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder. Fuze employed was a wood time fuze, fuze hole is smooth and tapered, the simple to make fuze could easily be hammered into place, Jones Fuzes pg. 2. Those with small openings, .875in., were generally manufactured before the war for the 12 pounder Coehorn Mortar. Those with larger opening, 1.125in. may have been intended for the longer range Napoleons, however it appears that the size distinction of the opening was of little concern and both sizes were manufactured and extensively used through out the war, principal use was southern. There are also thickness differences in the casting, and this many have been designed for "case shot" versus "common", however these shells are seldom found packed with case shot, so the presumption is that the use was "common", standard bursting charge without case shot balls, regardless of thickness of the casting. Perhaps southerners felt they could not spare the balls. Projectile measures: diameter 4.52in., weight 7.5lbs. (empty). Wood fuze missing. Projectile is disarmed, open fuze hole exposes empty interior. Recovered: Petersburg, Virginia campaign. Ref: Dickey & George, Field Artillery (1993 Edition), pg. 30.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.
