Civil War Artillery

by Harry Ridgeway


Ridgeway Civil War Research Center,
A virtual examination of artifacts of the American Civil War
Artillery
Research center, artillery, click: http://relicman.com/artillery/Artillery0000-Index.html.

Research center, artillery, click: http://relicman.com/artillery/Artillery0000-Index.html.

This is the "Ridgeway Civil War Research Center...", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.

"Smoothbore ball", refers to a projectile used in a cannon without rifling. The balls are round.


"Rifled projectile" refers to a projectile fired from a cannon with rifling. The projectiles are elongated. The rifling is long grooves cut the full length of the cannon, usually with a twist, the grooves are referred to as cuts, and the part not cut as "lands.


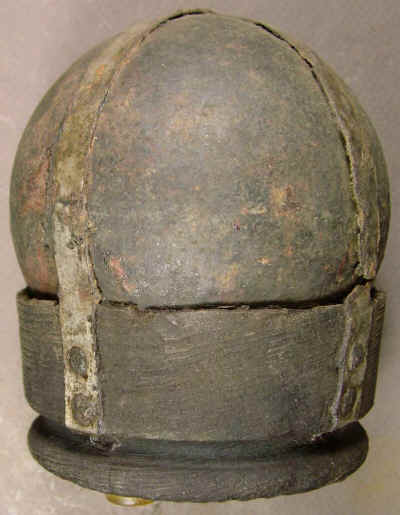

"Sabot" refers to either a band or a block designed to seal the gases in the cannon tube on firing so that the projectile is expelled. For balls this is often a block of wood with a flat bottom. For rifled projectiles the sabot is some sort of band designed to be flexible to expand into the rifling. The count of the lands and grooves can often be seen in the sabot of the shell.


"Solid shot" refers to a projectile that is solid cast, and contains no bursting cavity. A solid shot can be either round smoothbore or elongated rifled.


"Common shell" means a projectile was cast with a bursting cavity containing only powder. In this respect the term "common" can be interperted as "standard", although design variations off standard of Civil War era Ordnance can be extensive.


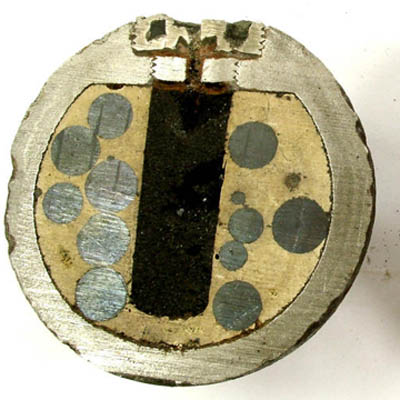

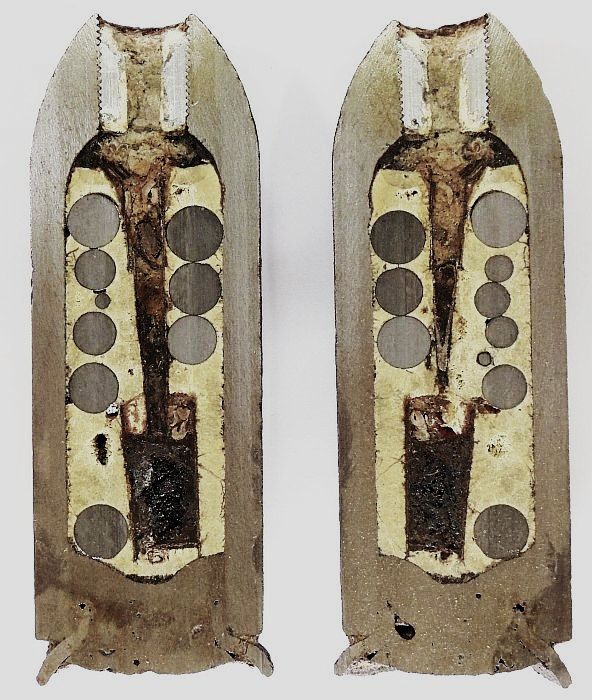

"Case shot" usually refers to the balls, lead or iron, packed in an artillery projectile. The projectile could be a round ball for smoothbore or a conical projectile for rilfed cannon, the projectiles were cast thick to withstand the stress of firing over distance, and were usually fitted with time fuzes designed to detonate the projectile over troops massed and exposed in open field formations. The balls were typically small, usually around .69in. or smaller and packed in a matrix to hold in place so that the powder charge would not be compacted and would maintain its explosive volatility.



"Canister" usually refers to a can, made of thin sheet metal, fitted into cylindrical shape, and filled with "canister" balls, which could be lead or iron, the balls were packed in sawdust and the can usually did not contain any explosive charge. The canister was the artillerist's weapon of last resort. Once the enemy got close to the battery, the gunners would load these rounds, and the flimsy can would burst on firing sending the contents in scatter fashion against the troops charging the cannon. The canister could be used in either rifled or smoothbore cannon, and was intended to burst immediately on firing, consequently the presence or absence of rifling would not have been important. As a weapon of last resort, rounds could have been double or triple loaded without adversely stressing the cannon, because a standard powder charge could be used, and even though a heavy over load would be discharged, the distance of firing was very short.



"Grape" or "stands of grape" refer to balls stacked loose, held in place with a bolt, rings and plates, or canvass, no explosive charge or sawdust, and no can. This also was the artillerist's weapon of last resort. Once the enemy got close to the battery, the gunners would load these rounds, and the flimsy stand would burst on firing sending the contents in scatter fashion against the troops charging the cannon. The stands of grape could be used in either rifled or smoothbore cannon, and was intended to burst immediately on firing, consequently the presence or absence of rifling would not have been important. As a weapon of last resort, rounds could have been double or triple loaded without adversely stressing the cannon, because a standard powder charge could be used, and even though a heavy over load would be discharged, the distance of firing was very short.

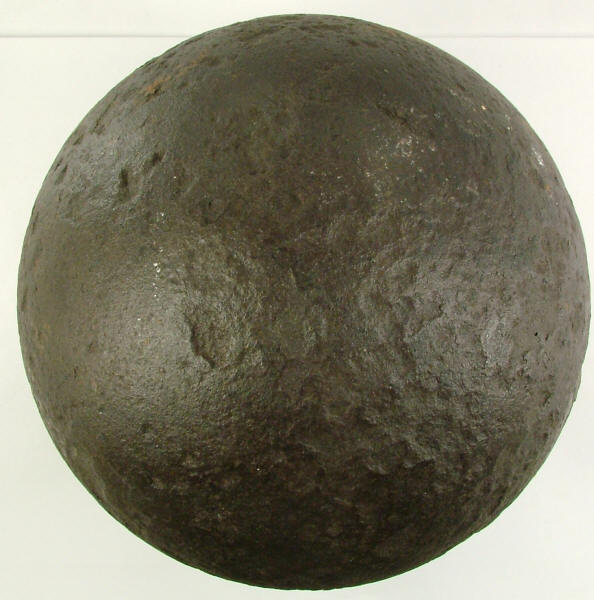

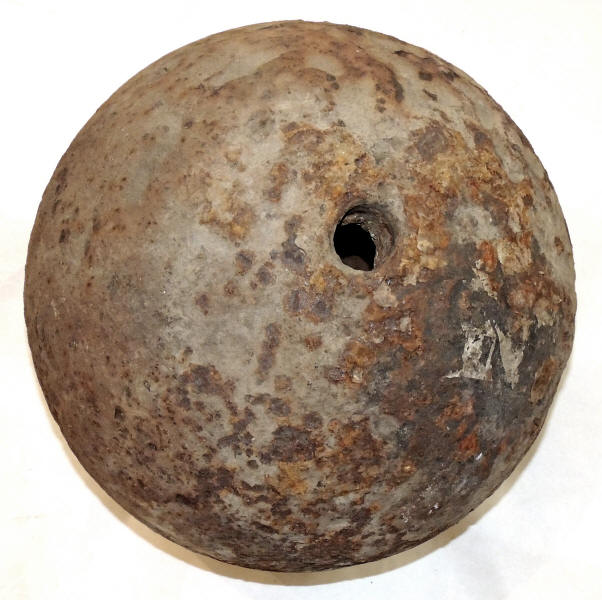

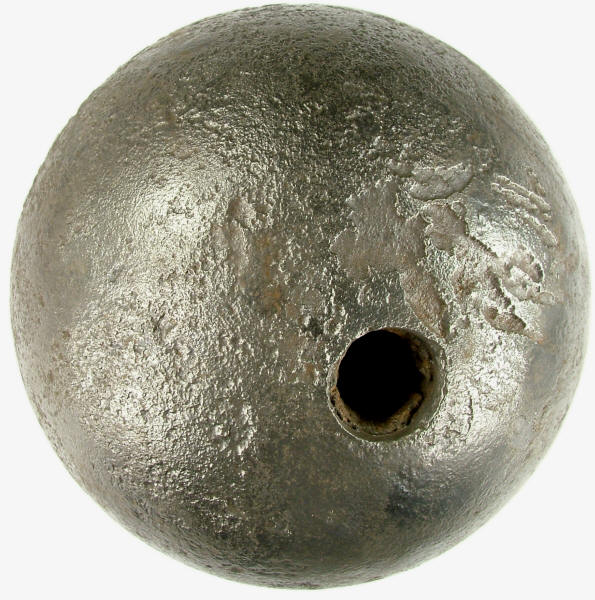

Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 6 pounder, 3.67 in.
Reference center Artillery1100.
Details click: http://relicman.com/artillery/Artillery1100-Ball-6pdr.html.

Smoothbore artillery projectile, spherical ball, smoothbore 12 pounder, 4.62in.
Artillery 1200 Ball 12pdr. 4.62in.


Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 12 pounder, 4.62in.
Artillery 1210 Ball solid shot 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1210 Ball solid shot 12pdr. 4.62in.

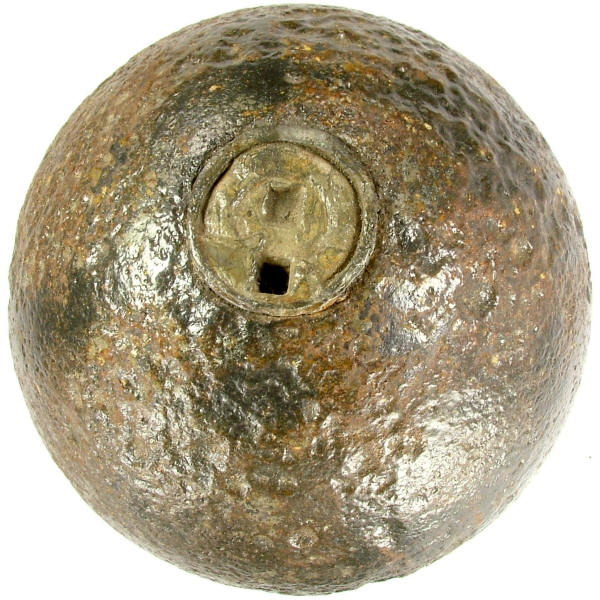

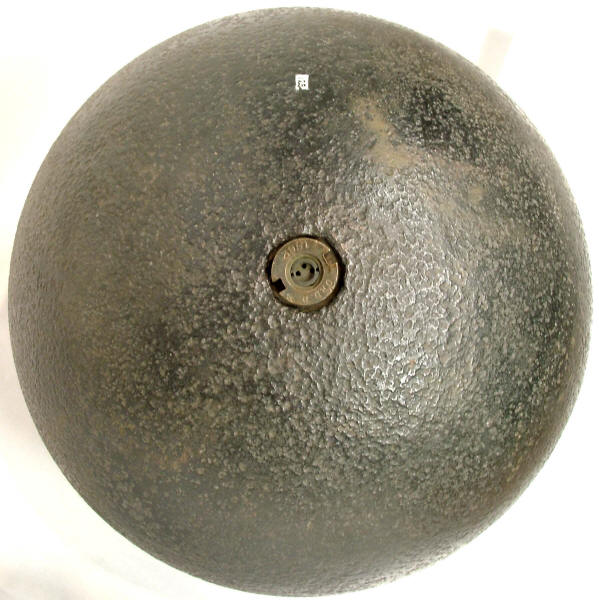

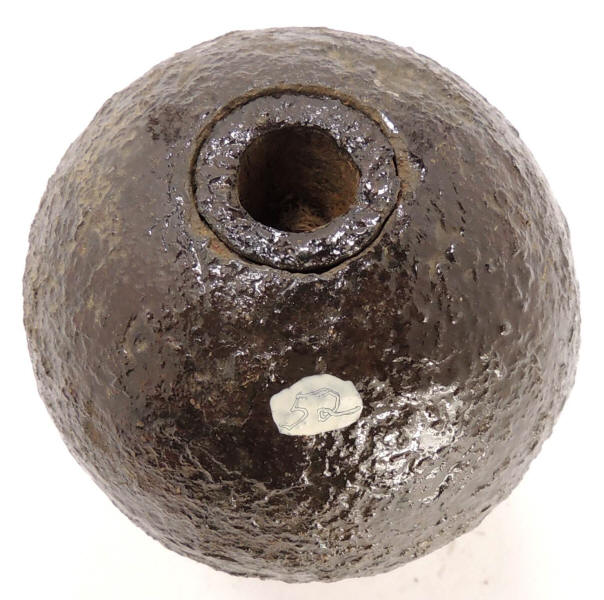

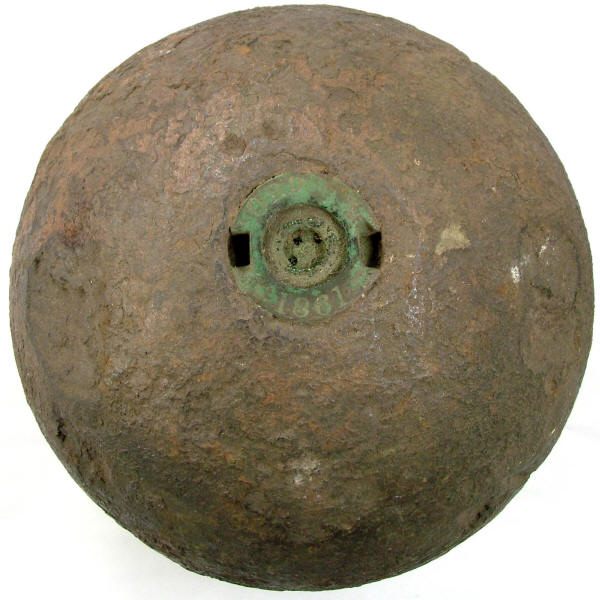

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann time fuze, smoothbore 12 pounder, 4.62in.
Artillery 1220 Ball Bormann fuzed 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1220 Ball Bormann fuze 12pdr. 4.62in.

Smoothbore artillery projectile, spherical ball, bursting shell, wood time fuze, 12 pounder, 4.62in.
Artillery 1250 Ball wood fuzed 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1250 Ball wood fuze 12pdr. 4.62in.

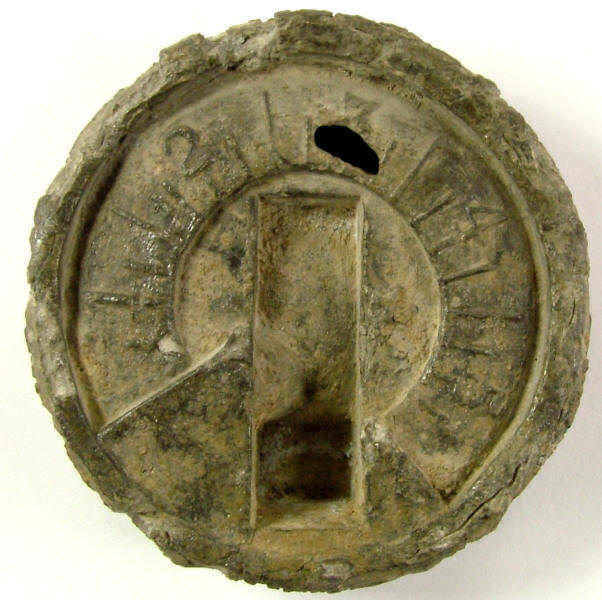

Smoothbore artillery projectile, spherical ball, bursting shell, Confederate copper time fuze, smoothbore 12 pounder, 4.62in.
Artillery 1260 Ball Confederate copper fuzed 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1260 Ball Confederate copper fuze 12pdr. 4.62in.

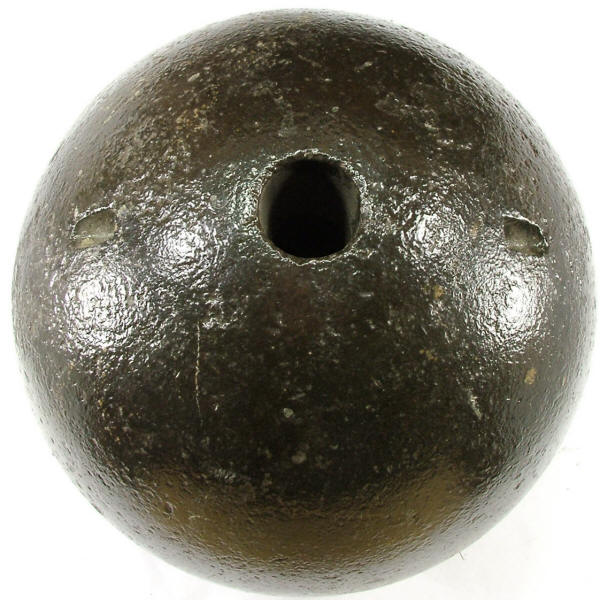

Smoothbore ball, Confederate manufacture, bursting shell, Broun concussion fuze, smoothbore 12 pounder, 4.62in.
Artillery 1270 Ball Broun concussion fuzed 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1270 Ball Broun concussion fuze 12pdr. 4.62in.

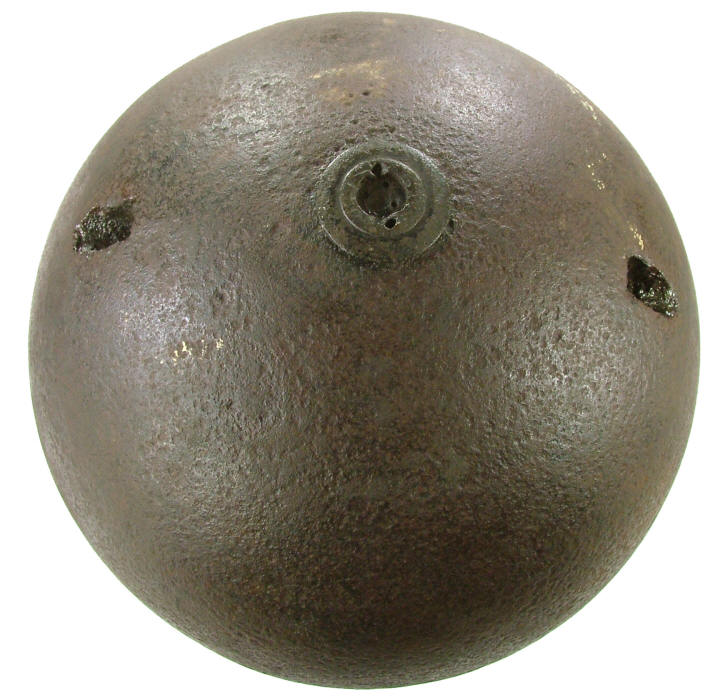

Smoothbore ball, Federal manufacture, bursting shell, Wright time fuze, smoothbore 12 pounder, 4.62in.
Artillery 1280 Ball Wright time fuzed 12pdr. 4.62in.

More pictures and explanation, click here for Artillery 1280 Ball Wright time fuze 12pdr. 4.62in.

Smoothbore artillery projectile, spherical ball, smoothbore 18 pounder, 5.3in.
Artillery 1300 Ball 18pdr. 5.3in.

Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 18 pounder, 5.3in.
Artillery 1310 Ball solid shot 18pdr. 5.3in.

More pictures and explanation, click here for Artillery 1310 Ball solid shot 18pdr. 5.3in.

Smoothbore artillery projectile, spherical ball, smoothbore 24 pounder, 5.82in.
Artillery 1400 Ball 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 24 pounder, 5.82in.
Artillery 1410 Ball solid shot 24pdr. 5.82in.

More pictures and explanation, click here for Artillery 1410 Ball solid shot 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann time fuze, smoothbore 24 pounder, 5.82in.
Artillery 1420 Ball Bormann fuze 24pdr. 5.82in.

More pictures and explanation, click here for Artillery 1420 Ball Bormann fuze 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, bursting shell, wood time fuze, smoothbore 24 pounder, 5.82 in.
Artillery 1430 Ball wood fuze 24pdr. 5.82in.

More pictures and explanation, click here for Artillery 1430 Ball wood fuze 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, bursting shell, Confederate copper time fuze, smoothbore 24 pounder, 5.8in.
Artillery 1440 Ball Confederate copper fuze 24pdr. 5.82in.

More pictures and explanation, click here for Artillery 1440 Ball Confederate copper fuze 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, bursting shell, seacoast watercap fuze, smoothbore 24 pounder, 5.82in.
Artillery 1450 Ball watercap fuze 24pdr. 5.82in.

More pictures and explanation, click here for Artillery 1450 Ball watercap fuze 24pdr. 5.82in.

Smoothbore artillery projectile, spherical ball, smoothbore 32 pounder, 6.4in.
Artillery 1500 Ball 32pdr. 6.4in.

Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 32 pounder, 6.4in.
Artillery 1510 Ball solid shot 32pdr. 6.4in.

More pictures and explanation, click here for Artillery 1510 Ball solid shot 32pdr. 6.4in.

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann time fuze, smoothbore 32 pounder, 6.4in.
Artillery 1520 Ball Bormann fuze 32pdr. 6.4in.

More pictures and explanation, click here for Artillery 1520 Ball Bormann fuze 32pdr. 6.4in.

Smoothbore artillery projectile, spherical ball, bursting shell, wood fuze, smoothbore 32 pounder, 6.4in.
Artillery 1530 Ball wood fuze 32pdr. 6.4in.

More pictures and explanation, click here for Artillery 1530 Ball wood fuze 32pdr. 6.4in.

Smoothbore artillery projectile, spherical ball, bursting shell, Navy watercap fuze, smoothbore 32 pounder, 6.4in.
Artillery 1540 Ball watercap fuze 32pdr. 6.4in.

More pictures and explanation, click here for Artillery 1540 Ball watercap fuze 32pdr. 6.4in.

Smoothbore artillery projectile, proof shot, smoothbore 32 pounder, 6.4 in.
Artillery 1550 Proof Shot 32pdr. 6.4in.

More pictures and explanation, click here for Artillery 1550 Proof Shot 32pdr. 6.4in.

Smoothbore artillery projectile, spherical ball, smoothbore 42 pounder, 7 in.
Artillery 1600 Ball 42pdr. 7in.

Smoothbore artillery projectile, spherical ball, solid shot, smoothbore 42 pounder, 7 in.
Artillery 1610 Ball solid shot 42pdr. 7in.

More pictures and explanation, click here for Artillery 1610 Ball solid shot 42pdr. 7in.

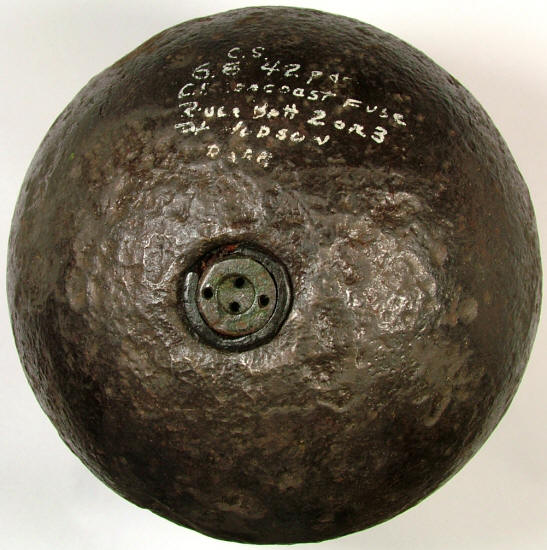

Smoothbore artillery projectile, spherical ball, bursting shell, Confederate seacoast watercap fuze, smoothbore 42 pounder, 7 in.
Artillery 1650 Ball watercap fuze 42pdr. 7in.

More pictures and explanation, click here for Artillery 1650 Ball watercap fuze 42pdr. 7in.

Smoothbore artillery projectile, spherical ball, 8 in.
Artillery 1700 Ball 8in.

Smoothbore artillery projectile, spherical ball, solid shot, Columbiad smoothbore, 8 in.
Artillery 1710 Ball Columbiad solid shot 8in.

More pictures and explanation, click here for Artillery 1710 Ball Columbiad solid shot 8in.

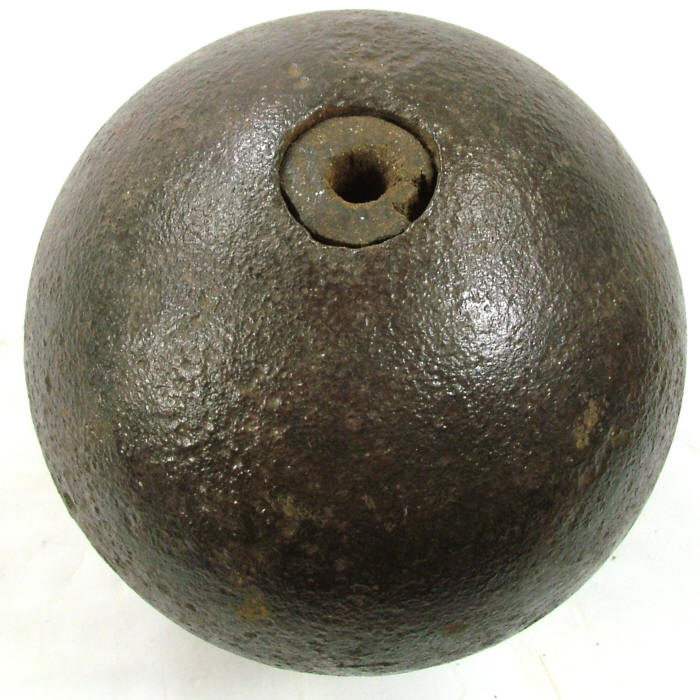

Smoothbore artillery projectile, spherical ball, bursting shell, thick walled, Columbiad smoothbore, 8 in.
Artillery 1720 Ball Columbiad shell 8in.

More pictures and explanation, click here for Artillery 1720 Ball Columbiad shell 8in.

Smoothbore artillery projectile, spherical ball, bursting shell, thin walled mortar, wood fuze, smoothbore mortar, 8in.
Artillery 1750 Ball Mortar wood fuze 8in.

More pictures and explanation, click here for Artillery 1750 Ball Mortar wood fuze 8in.

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann fuze, smoothbore 8in.
Artillery 1760 Ball Bormann fuze 8in.

More pictures and explanation, click here for Artillery 1760 Ball Bormann fuze 8in.

Smoothbore artillery projectile, spherical ball, bursting shell, Confederate incendiary, Confederate incendiary fuze, smoothbore, 8in.
Artillery 1770 Ball Confederate incendiary 8in.

More pictures and explanation, click here for Artillery 1770 Ball Confederate incendiary 8in.

Smoothbore artillery projectile, spherical ball, 9 in.
Artillery 1800 Ball 9in.

Smoothbore artillery projectile, spherical ball, bursting shell, Navy watercap time fuze, Federal Dahlgren, 9 in.
Artillery 1810 Ball Dahlgren watercap fuze 9in.

More pictures and explanation, click here for Artillery 1810 Ball Dahlgren watercap fuze 9in.

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann time fuze, Dahlgren smoothbore gun, 9 in.
Artillery 1820 Ball Dahlgren Bormann fuze 9in.

More pictures and explanation, click here for Artillery 1820 Ball Dahlgren Bormann fuze 9in.

Smoothbore artillery projectile, spherical ball, bursting shell, Bormann under-plug substituted for fuze, Dahlgren smoothbore, 9 in.
Artillery 1830 Ball Dahlgren Bormann underplug substitute 9in.

More pictures and explanation, click here for Artillery 1830 Ball Dahlgren Bormann underplug substitute 9in.

Smoothbore artillery projectile, spherical ball, bursting shell, wood fuze, 9in.
Artillery 1850 Ball wood fuze 9in.

More pictures and explanation, click here for Artillery 1850 Ball wood fuze 9in.

Smoothbore artillery projectile, spherical ball, 10 in.
Artillery 1900 Ball 10in.

Smoothbore artillery projectile, spherical ball, solid shot, Columbiad smoothbore, 10 in.
Artillery 1910 Ball solid shot 10in.

More pictures and explanation, click here for Artillery 1910 Ball solid shot 10in.

Smoothbore artillery projectile, spherical ball, bursting shell, thick walled, Columbiad smoothbore, 10 in.
Artillery 1920 Ball Columbiad shell 10in.

More pictures and explanation, click here for Artillery 1920 Ball Columbiad shell 10in.

Smoothbore artillery projectile, spherical ball, bursting shell, thin walled mortar, smoothbore mortar, 10in.
Artillery 1950 Ball mortar wood fuze 10in.

More pictures and explanation, click here for Artillery 1950 Ball mortar wood fuze 10in.

Smoothbore artillery projectile, spherical ball, 11 in.
Artillery 2000 Ball 11in.

Smoothbore artillery projectile, spherical ball, bursting shell, Navy watercap time fuze, Federal Dahlgren, 11 in.
Artillery 2010 Ball Dahlgren watercap fuze 11in.

More pictures and explanation, click here for Artillery 2010 Ball Dahlgren watercap fuze 11in.

Smoothbore artillery projectile, spherical ball, 13in.
Artillery 2100 Ball 13in.

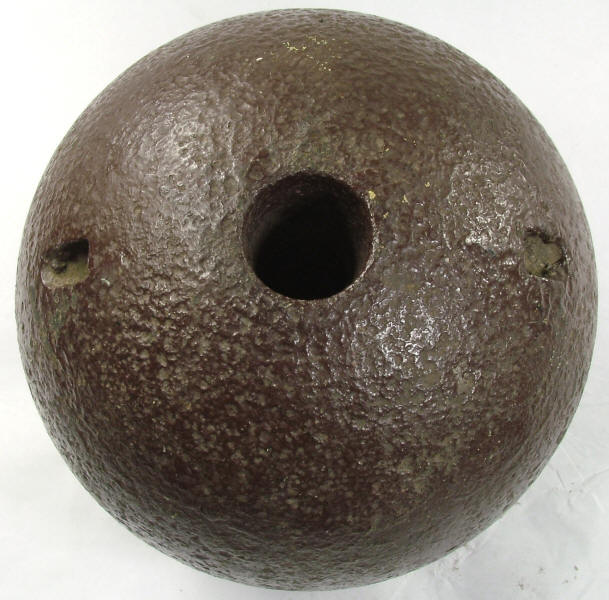

Smoothbore artillery projectile, spherical ball, bursting shell, smoothbore mortar, 13in.
Artillery 2110 Ball mortar wood fuze 13in.

More pictures and explanation, click here for Artillery 2110 Ball mortar wood fuze 13in.

Smoothbore artillery projectile, spherical ball, 15 in.
Artillery 2200 Ball 15in.

Smoothbore artillery projectile, spherical ball, solid shot, Rodman smoothbore gun, 15 in.
Artillery 2210 Ball solid shot 15in.

More pictures and explanation, click here for Artillery 2210 Ball solid shot 15in.

Smoothbore artillery projectile, spherical ball, bursting shell, Navy watercap time fuzes , Rodman smoothbore gun, 15 in.
Artillery 2220 Ball watercap fuze 15in.

More pictures and explanation, click here for Artillery 2220 Ball watercap fuze 15in.

Smoothbore artillery projectile, spherical ball, bursting shell, Rodman smoothbore gun, 15 in.
Artillery 2230 Ball wood fuze 15in.

More pictures and explanation, click here for Artillery 2230 Ball wood fuze 15in.

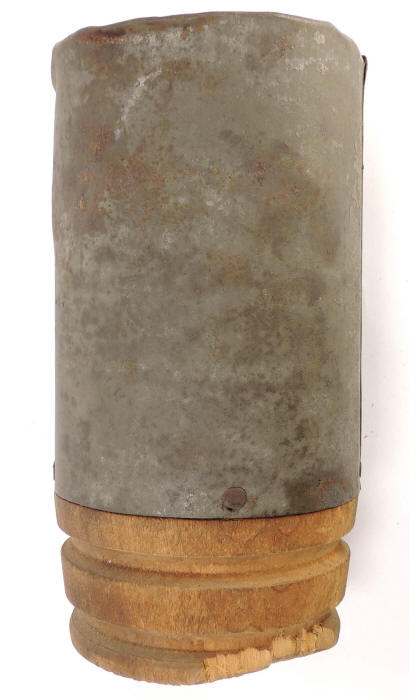

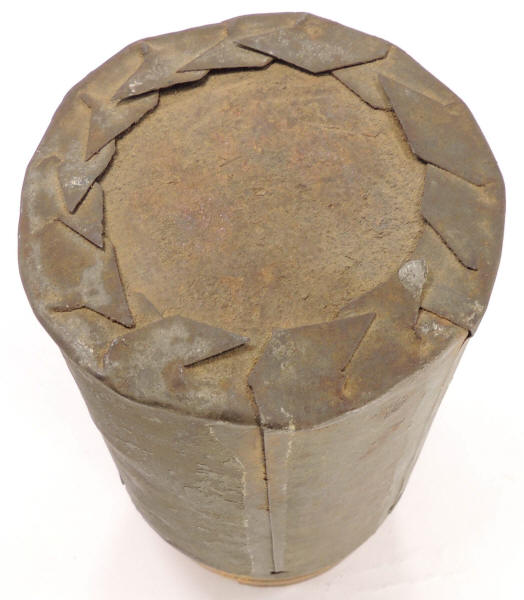

Artillery projectile, canister
Artillery 2500 canister

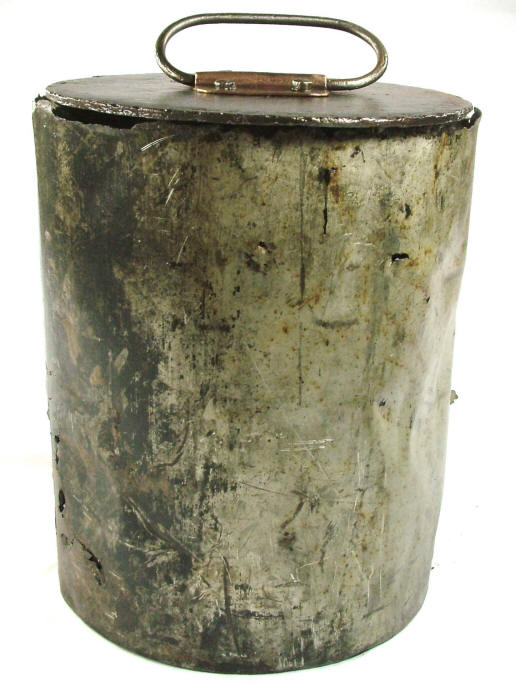

Artillery projectile, canister, 2.6 in.
Artillery 2510 canister 2.6in.

More pictures and explanation, click here for Artillery 2510 canister 2.6in.

Artillery projectile, canister, 3 in.
Artillery 2520 canister 3in.

More pictures and explanation, click here for Artillery 2520 canister 3in.

Artillery projectile, canister, 3.4 in.
Artillery 2530 canister 3.4in.

More pictures and explanation, click here for Artillery 2530 canister 3.4in.

Artillery projectile, canister, 3.67 in.
Artillery 2540 canister 3.67in.

More pictures and explanation, click here for Artillery 2540 canister 3.67in.

Canister, 3.8 in.
Artillery 2550 canister 3.8in.

More pictures and explanation, click here for Artillery 2550 canister 3.8in.

Smoothbore artillery projectile, canister, 4.62 in.
Artillery 2570 canister 4.62in.


More pictures and explanation, click here for Artillery 2570 canister 4.62in.

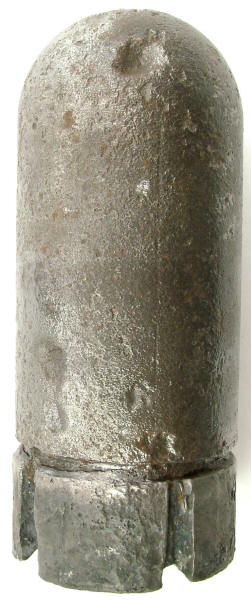

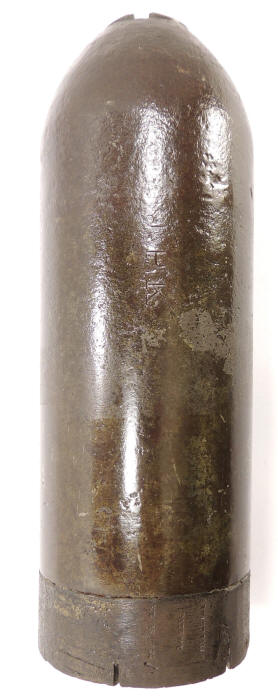

Rifled artillery projectile, Confederate manufacture, canister, pattern with thin iron can, iron top and bottom, iron balls, no sabot, Brooke rifle, 6.4 in.
Artillery 2580 canister 6.4in.

More pictures and explanation, click here for Artillery 2580 canister 6.4in.

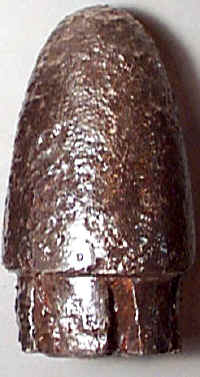

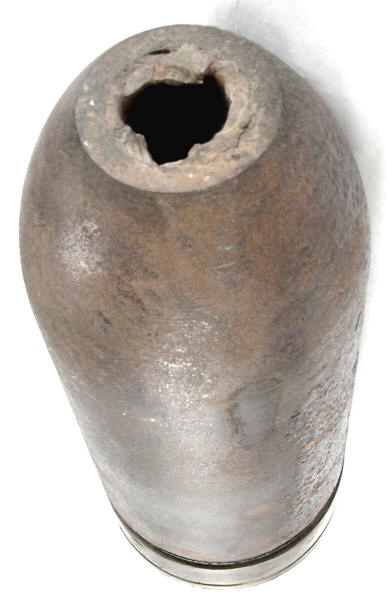

Rifled artillery projectile, Confederate manufacture, canister, 7 in.
Artillery 2590 canister 7in.

More pictures and explanation, click here for Artillery 2590 canister 7in.

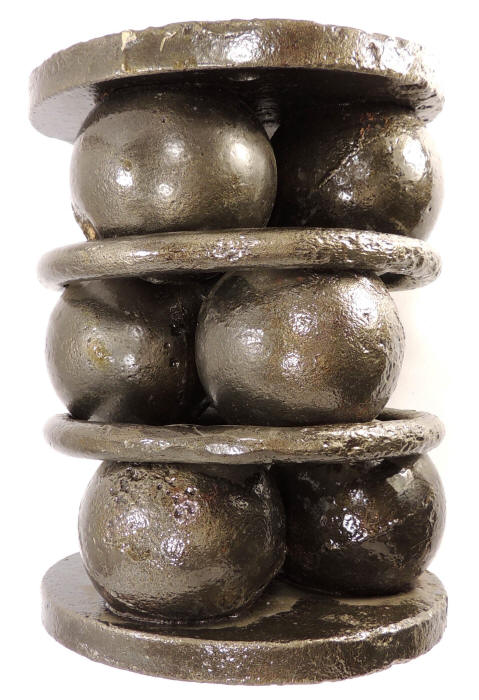

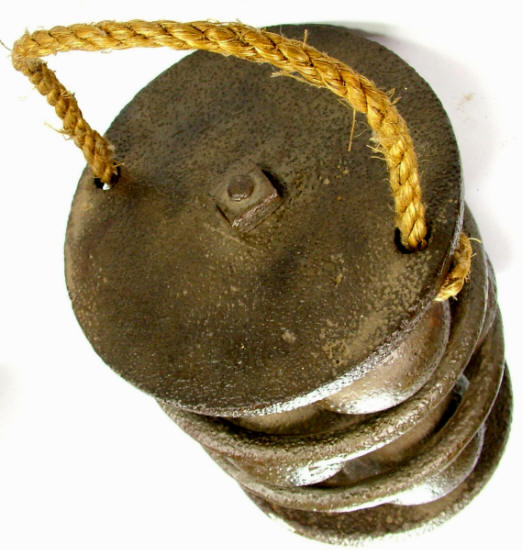

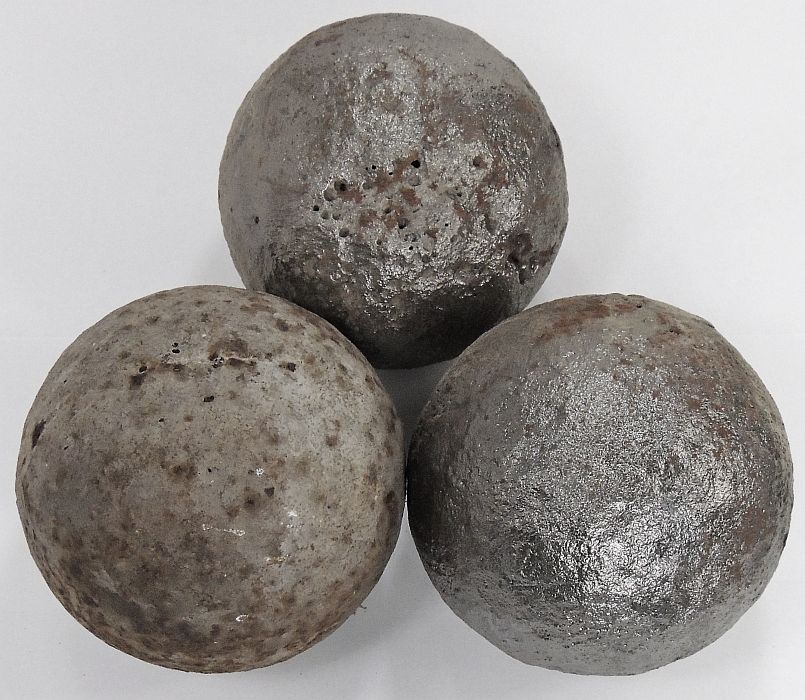

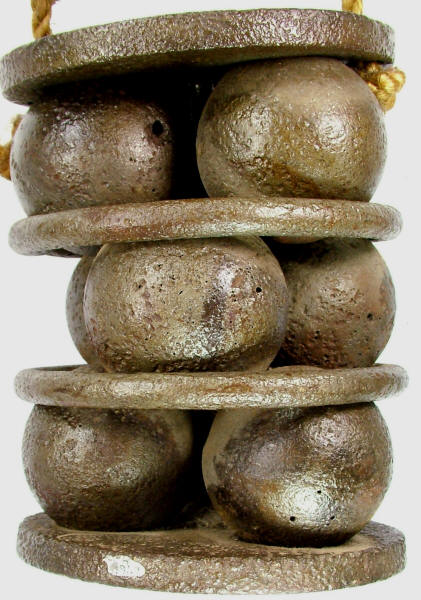

Artillery projectile, stand of grape
Artillery 2600 grape stand

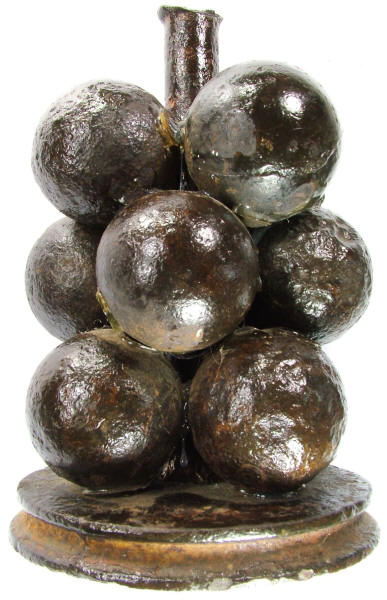

Artillery projectile, stand of grape, 4.62in.
Artillery 2630 grape stand 4.62in.

More pictures and explanation, click here for Artillery 2630 grape stand 4.62in.

Artillery projectile, stand of grape, 5.8in.
Artillery 2640 grape stand 5.8in.

More pictures and explanation, click here for Artillery 2640 grape stand 5.8in.

Artillery projectile, stand of grape, 6.4in.
Artillery 2650 grape stand 6.4in.

More pictures and explanation, click here for Artillery 2650 grape stand 6.4in.

Rifled artillery projectile, stand of grape, 7in.
Artillery 2660 grape stand 7in.

More pictures and explanation, click here for Artillery 2660 grape stand 7in.

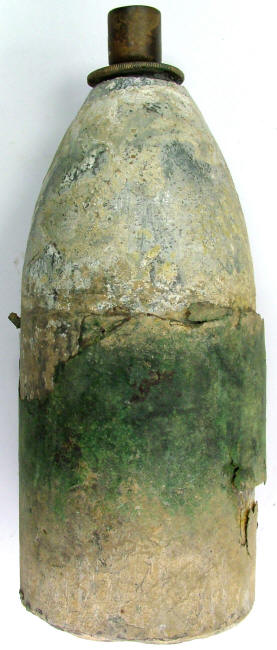

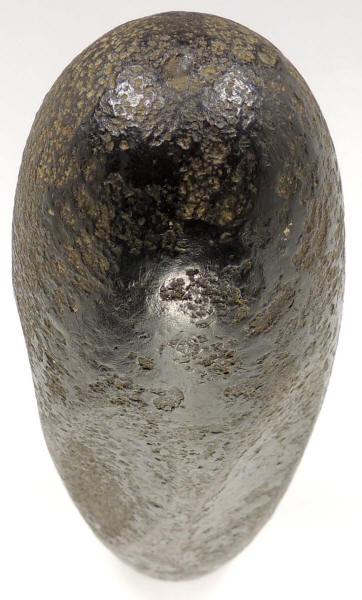

Rifled artillery projectile, Absterdam design
Artillery 3000 Absterdam

Rifled artillery projectile, Absterdam design, 3 in.
Artillery 3010 Absterdam 3in.

More pictures and explanation, click here for Artillery 3010 Absterdam 3in.

Rifled artillery projectile, Archer design
Artillery 3100 Archer

Rifled artillery projectile, Archer design, 3 in.
Artillery 3110 Archer 3in.

More pictures and explanation, click here for Artillery 3110 Archer 3in.

Rifled artillery projectile, Archer design, 3.2 to 3.3in.
Artillery 3120 Archer 3.2in. to 3.3in.

More pictures and explanation, click here for Artillery 3120 Archer 3.2in. to 3.3in.

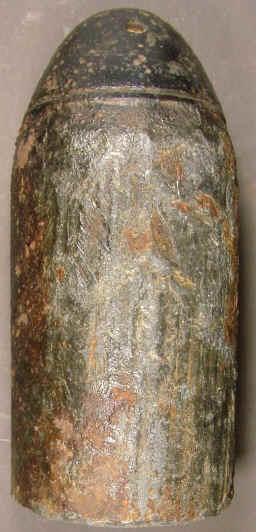

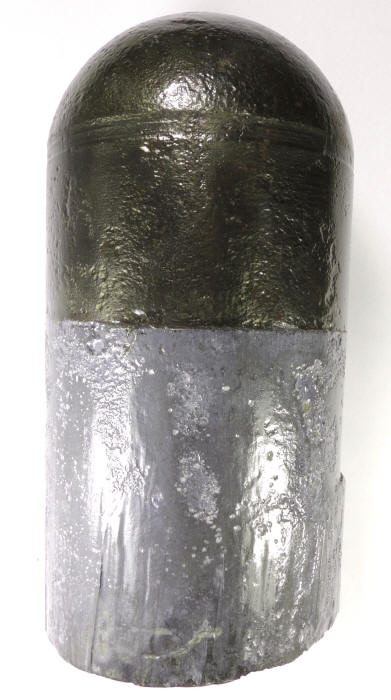

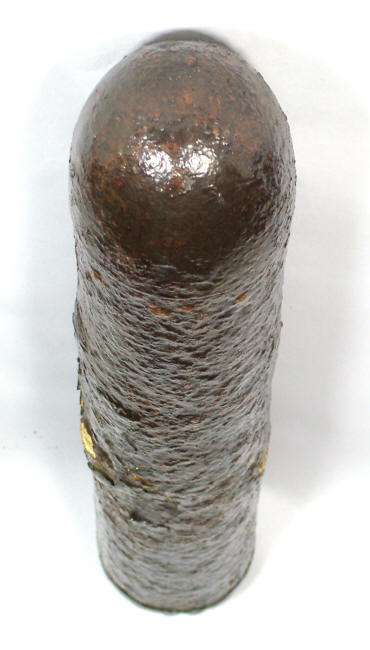

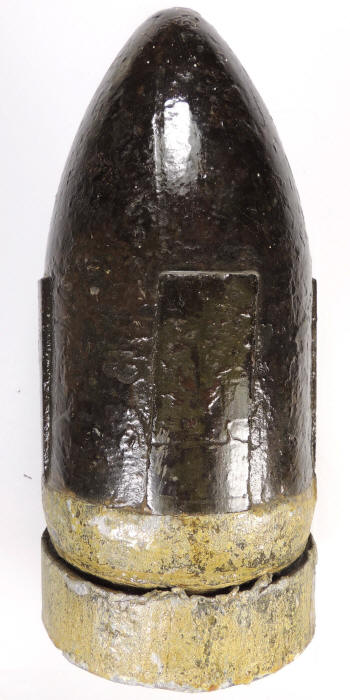

Rifled artillery projectile, Confederate design and manufacture, lead sleeved, 3.25 or 3.3in.
Artillery 3200 Confederate lead sleeved

Rifled artillery projectile, Confederate design and manufacture, lead sleeved, 3.25 or 3.3in.
Artillery 3210 Confederate lead sleeved 3.2in. to 3.3in.

More pictures and explanation, click here for Artillery 3210 Confederate lead sleeved 3.2in. to 3.3in.

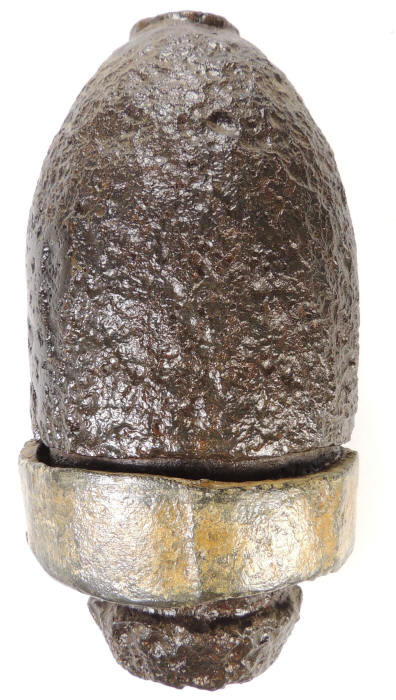

Rifled artillery projectile, Blakely design
Artillery 3300 Blakely

Rifled artillery projectile, Blakely design, 2.9in. to 3in.
Artillery 3310 Blakely 2.9in to 3in.

More pictures and explanation, click here for Artillery 3310 Blakely 2.9in to 3in.

Rifled artillery projectile, Blakely design, 3.67in.
Artillery 3320 Blakely 3.67in.

More pictures and explanation, click here for Artillery 3320 Blakely 3.67in.

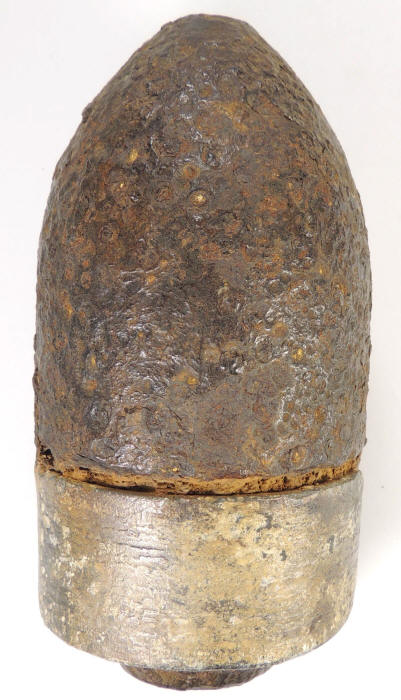

Rifled artillery projectile, Britten design
Artillery 3400 Britten

Rifled artillery projectile, Britten design, 2.9 in. to 3in.
Artillery 3410 Britten 2.9in to 3in.
More pictures and explanation, click here for Artillery 3410 Britten 2.9in. to 3in.

Rifled artillery projectile, Britten design, 3.5 in.
Artillery 3420 Britten 3.5in.

More pictures and explanation, click here for Artillery 3420 Britten 3.5in.

Rifled artillery projectile, Britten design, 3.67 in.
Artillery 3430 Britten 3.67in.

More pictures and explanation, click here for Artillery 3430 Britten 3.67in.

Rifled artillery projectile, Britten design, 4.62 in.
Artillery 3440 Britten 4.62in.

More pictures and explanation, click here for Artillery 3440 Britten 4.62in.

Rifled artillery projectile, Britten design, 5.8in.
Artillery 3450 Britten 5.8in.

More pictures and explanation, click here for Artillery 3450 Britten 5.8in.

Rifled artillery projectile, Britten design, 6.4 in.
Artillery 3460 Britten 6.4in.

More pictures and explanation, click here for Artillery 3460 Britten 6.4in.

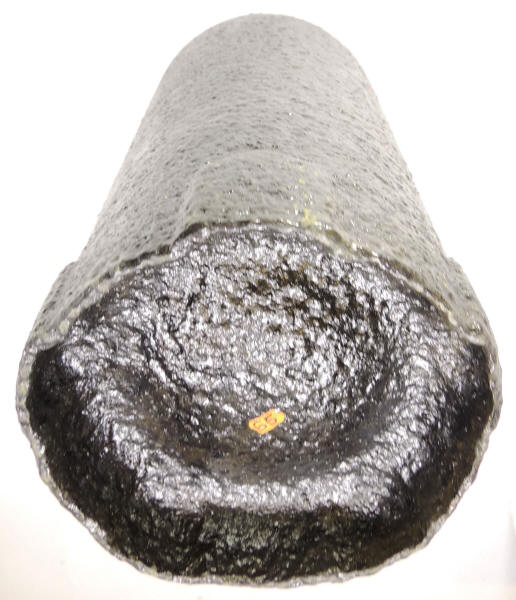

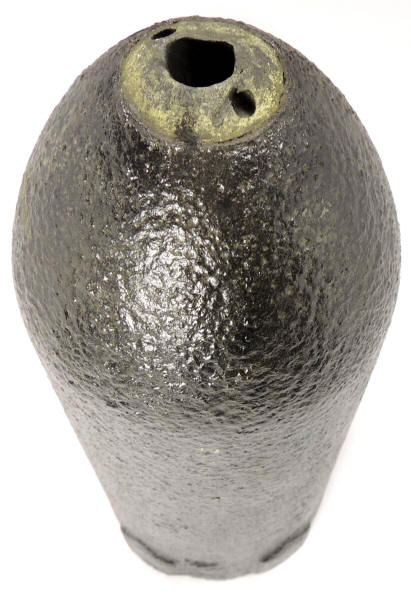

Rifled artillery projectile, Brooke design
Artillery 3500 Brooke

Rifled artillery projectile, Brooke design, 2.9in. to 3in.
Artillery 3510 Brooke 2.9in. to 3in.

More pictures and explanation, click here for Artillery 3510 Brooke 2.9in. to 3in.

Rifled artillery projectile, Brooke design, 3.67in.
Artillery 3520 Brooke 3.67in.

More pictures and explanation, click here for Artillery 3520 Brooke 3.67in.

Rifled artillery projectile, Brooke design, 4.2in.
Artillery 3530 Brooke 4.2in.

More pictures and explanation, click here for Artillery 3530 Brooke 4.2in.

Rifled artillery projectile, Brooke design, 6.4in.
Artillery 3550 Brooke 6.4in.

More pictures and explanation, click here for Artillery 3550 Brooke 6.4in.

Rifled artillery projectile, Brooke design, 7in.
Artillery 3560 Brooke 7in.

More pictures and explanation, click here for Artillery 3560 Brooke 7in.

Rifled artillery projectile, Broun design
Artillery 3600 Broun

Rifled artillery projectile, Broun design, 3in.
Artillery 3610 Broun 3in.

More pictures and explanation, click here for Artillery 3610 Broun 3in.

Rifled artillery projectile, Broun design, 3.67 in.
Artillery 3620 Broun 3.67in.

More pictures and explanation, click here for Artillery 3620 Broun 3.67in.

Rifled artillery projectile, Broun design, 4.2 in.
Artillery 3630 Broun 4.2in.

More pictures and explanation, click here for Artillery 3630 Broun 4.2in.

Rifled artillery projectile, Broun design, 7 in.
Artillery 3640 Broun 7in.

More pictures and explanation, click here for Artillery 3640 Broun 7in.

Rifled artillery projectile, Burton design
Artillery 3700 Burton

Rifled artillery projectile, Burton design, 3in.
Artillery 3710 Burton 3in.

More pictures and explanation, click here for Artillery 3710 Burton 3in.

Rifled artillery projectile, Dahlgren design
Artillery 3800 Dahlgren

Rifled artillery projectile, Dahlgren design, 3.4 in.
Artillery 3830 Dahlgren 3.4in.

More pictures and explanation, click here for Artillery 3830 Dahlgren 3.4in.

Rifled artillery projectile, Dahlgren design, 4in.
Artillery 3840 Dahlgren 4in.

More pictures and explanation, click here for Artillery 3840 Dahlgren 4in.

Rifled artillery projectile, Dahlgren design, 4.4in.
Artillery 3850 Dahlgren 4.4in.

More pictures and explanation, click here for Artillery 3850 Dahlgren 4.4in.

Rifled artillery projectile, Confederate modification of Dahlgren design, 6.4in.
Artillery 3860 Dahlgren Confederate 6.4in.

More pictures and explanation, click here for Artillery 3860 Dahlgren Confederate 6.4in.

Rifled artillery projectile, Delafield design
Artillery 3900 Delafield

Rifled artillery projectile, Delafield design, 3.67in.
Artillery 3910 Delafield 3.67in.

More pictures and explanation, click here for Artillery 3910 Delafield 3.67in.

Rifled artillery projectile, Dyer design
Artillery 4000 Dyer

Rifled artillery projectile, Dyer design, 3in.
Artillery 4010 Dyer 3in.

More pictures and explanation, click here for Artillery 4010 Dyer 3in.

Rifled artillery projectile, Dyer design, 4.5 in.
Artillery 4020 Dyer 4.5in.

More pictures and explanation, click here for Artillery 4020 Dyer 4.5in.

Rifled artillery projectile, Dyer design, 7in.
Artillery 4030 Dyer 7in.

More pictures and explanation, click here for Artillery 4030 Dyer 7in.

Rifled artillery projectile, Eureka design
Artillery 4100 Eureka

Rifled artillery projectile, Eureka design, 3 in.
Artillery 4110 Eureka 3in.

More pictures and explanation, click here for Artillery 4110 Eureka 3in.

Rifled artillery projectile, Harding design
Artillery 4200 Harding

Rifled artillery projectile, Harding design, 6.4in.
Artillery 4210 Harding 6.4in.

More pictures and explanation, click here for Artillery 4210 Harding 6.4in.

Rifled artillery projectile, Harding design, 7in.
Artillery 4220 Harding 7in.

More pictures and explanation, click here for Artillery 4220 Harding 7in.

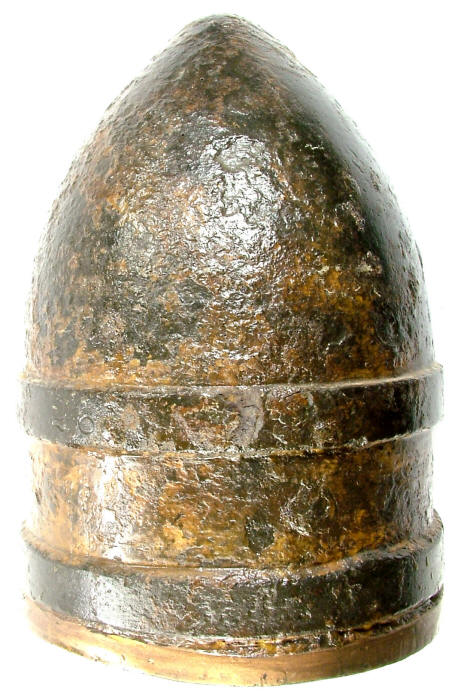

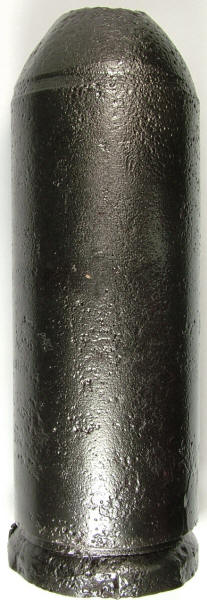

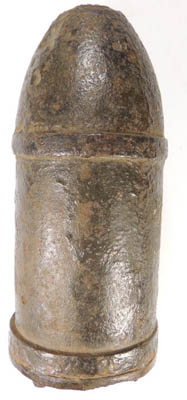

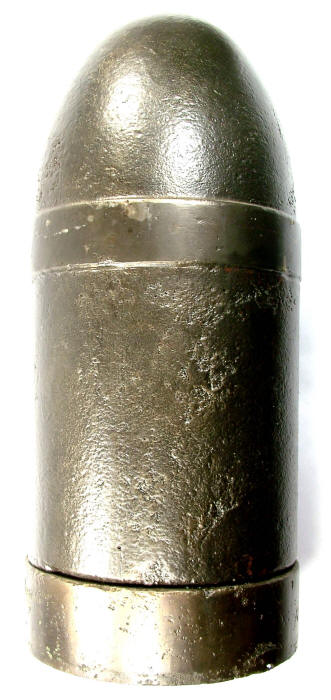

Rifled artillery projectile, Hotchkiss design
Artillery 4300 Hotchkiss

Rifled artillery projectile, Hotchkiss design, 2.6in.
Artillery 4310 Hotchkiss 2.6in.

More pictures and explanation, click here for Artillery 4310 Hotchkiss 2.6in.

Rifled artillery projectile, Hotchkiss design, 3in.
Artillery 4320 Hotchkiss 3in.

More pictures and explanation, click here for Artillery 4320 Hotchkiss 3in.

Rifled artillery projectile, Hotchkiss design, 3.4in.
Artillery 4330 Hotchkiss 3.4in.

More pictures and explanation, click here for Artillery 4330 Hotchkiss 3.4in.

Rifled artillery projectile, Hotchkiss design, 3.5in.
Artillery 4340 Hotchkiss 3.5in.

More pictures and explanation, click here for Artillery 4340 Hotchkiss 3.5in.

Rifled artillery projectile, Hotchkiss design, 3.67in.
Artillery 4350 Hotchkiss 3.67in.

More pictures and explanation, click here for Artillery 4350 Hotchkiss 3.67in.

Rifled artillery projectile, Hotchkiss design, 3.8in.
Artillery 4360 Hotchkiss 3.8in.

More pictures and explanation, click here for Artillery 4360 Hotchkiss 3.8in.

Rifled artillery projectile, Hotchkiss design, 4.2 in.
Artillery 4370 Hotchkiss 4.2in.

More pictures and explanation, click here for Artillery 4370 Hotchkiss 4.2in.

Rifled artillery projectile, Hotchkiss design, 4.5 in.
Artillery 4380 Hotchkiss 4.5in.

More pictures and explanation, click here for Artillery 4380 Hotchkiss 4.5in.

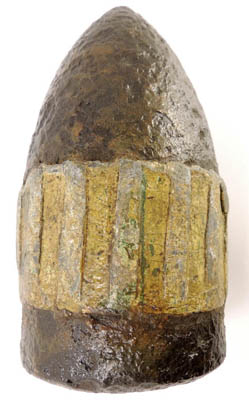

Rifled artillery projectile, James design
Artillery 4500 James

Rifled artillery projectile, James design, 3.67in.
Artillery 4510 James 3.67in.
More pictures and explanation, click here for Artillery 4510 James 3.67in.

Rifled artillery projectile, James design, 3.8in.
Artillery 4520 James 3.8in.

More pictures and explanation, click here for Artillery 4520 James 3.8in.

Rifled artillery projectile, James design, 4.62in.
Artillery 4530 James 4.62in.

More pictures and explanation, click here for Artillery 4530 James 4.62in.

Rifled artillery projectile, James design, 5.8in.
Artillery 4540 James 5.8in.

More pictures and explanation, click here for Artillery 4540 James 5.8in.

Rifled artillery projectile, James design, 6.4in.
Artillery 4550 James 6.4in.

More pictures and explanation, click here for Artillery 4550 James 6.4in.

Rifled artillery projectile, James design, 7in.
Artillery 4560 James 7in.

More pictures and explanation, click here for Artillery 4560 James 7in.

Rifled artillery projectile, James design Confederate adaptation, 3.3in.
Artillery 4580 James Confederate 3.3in.

More pictures and explanation, click here for Artillery 4580 James Confederate 3.3in.

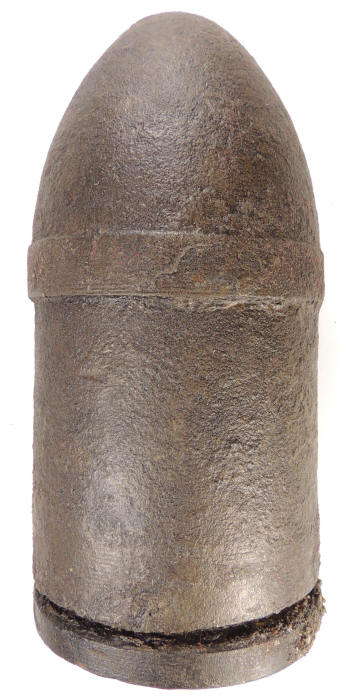

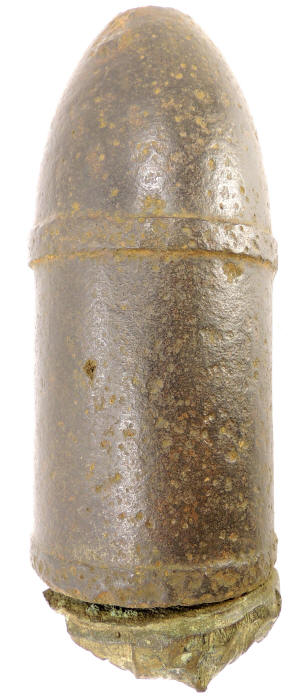

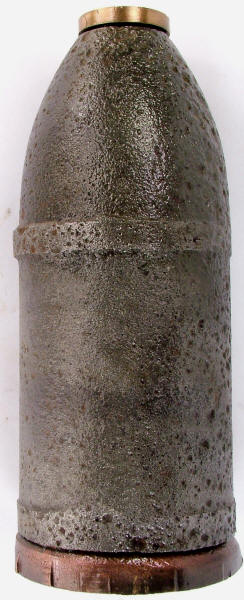

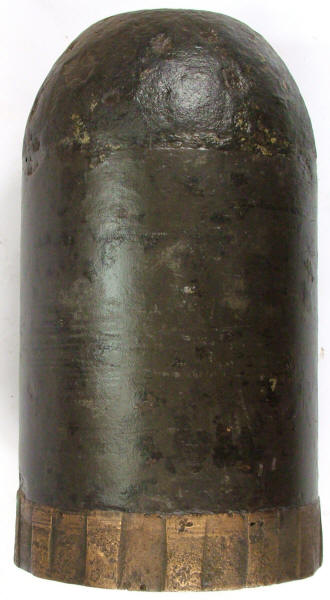

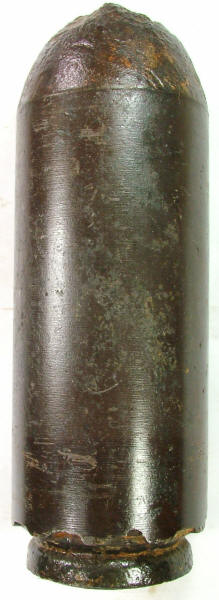

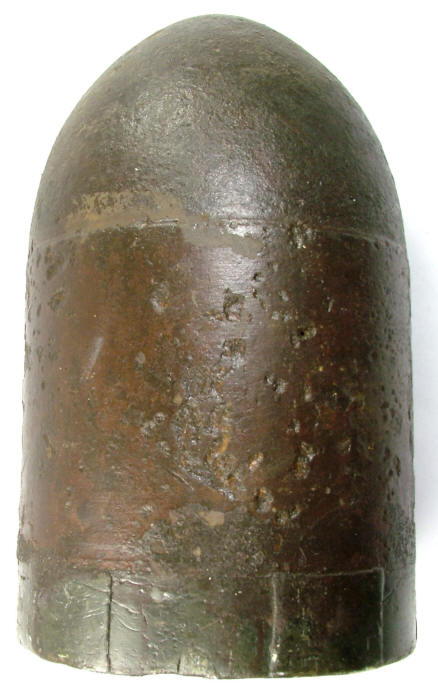

Rifled artillery projectile, Parrott design
Artillery 4600 Parrott

Rifled artillery projectile, Parrott design, wrought iron sabot, 2.9in.
Artillery 4610 Parrott wrought iron sabot 2.9in.

More pictures and explanation, click here for Artillery 4610 Parrott wrought iron sabot 2.9in.

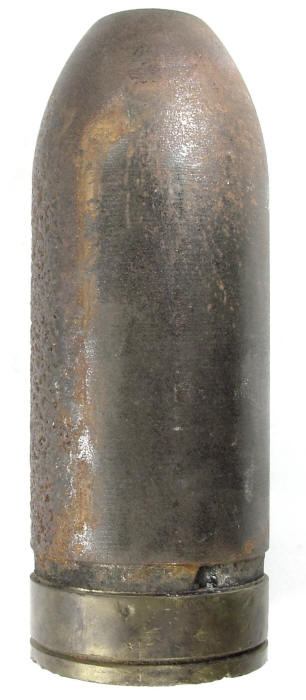

Rifled artillery projectile, Parrott design, high band brass sabot, 2.9in.
Artillery 4620 Parrott high band sabot 2.9in.

More pictures and explanation, click here for Artillery 4620 Parrott high band sabot 2.9in.

Rifled artillery projectile, Parrott design, narrow ring brass sabot, 2.9in.
Artillery 4630 Parrott narrow ring sabot 2.9in.

More pictures and explanation, click here for Artillery 4630 Parrott narrow ring sabot 2.9in.

Rifled artillery projectile, Parrott design, wrought iron sabot, 3.67in.
Artillery 4640 Parrott wrought iron sabot 3.67in.

More pictures and explanation, click here for Artillery 4640 Parrott wrought iron sabot 3.67in.

Rifled artillery projectile, Parrott design, high band brass ring sabot, 3.67in.
Artillery 4650 Parrott high band sabot 3.67in.

More pictures and explanation, click here for Artillery 4650 Parrott high band sabot 3.67in.

Rifled artillery projectile, Parrott design, narrow ring brass sabot, 3.67in.
Artillery 4660 Parrott narrow ring brass sabot 3.67in.

More pictures and explanation, click here for Artillery 4660 Parrott narrow ring brass sabot 3.67in.

Rifled artillery projectile, Parrott design, high band brass sabot, 4.2in.
Artillery 4680 Parrott high band sabot 4.2in.

More pictures and explanation, click here for Artillery 4680 Parrott high band sabot 4.2in.

Rifled artillery projectile, Parrott design, narrow ring sabot, 4.2in.
Artillery 4690 Parrott narrow ring brass sabot 4.2in.

More pictures and explanation, click here for Artillery 4690 Parrott narrow ring brass sabot 4.2in.

Rifled artillery projectile, Parrott design, 6.4in.
Artillery 4710 Parrott 6.4in.

More pictures and explanation, click here for Artillery 4710 Parrott 6.4in.

Rifled artillery projectile, Parrott design, 7in.
Artillery 4720 Parrott 7in.

More pictures and explanation, click here for Artillery 4720 Parrott 7in.

Rifled artillery projectile, Parrott design, 8in.
Artillery 4730 Parrott 8in.

More pictures and explanation, click here for Artillery 4730 Parrott 8in.

Rifled artillery projectile, Parrott design, 10in.
Artillery 4740 Parrott 10in.

More pictures and explanation, click here for Artillery 4740 Parrott 10in.

Rifled artillery projectile, Parrott design with Confederate adaptation, 3in.
Artillery 4750 Parrott Confederate 3in.

More pictures and explanation, click here for Artillery 4750 Parrott Confederate 3in.

Rifled artillery projectile, Confederate adaptation of Parrott sabot design, 4.2 in.
Artillery 4760 Parrott Confederate 4.2in.

More pictures and explanation, click here for Artillery 4760 Parrott Confederate 4.2in.

Rifled artillery projectile, Confederate adaptation of Parrott sabot design, 7in.
Artillery 4770 Parrott Confederate 7in.

More pictures and explanation, click here for Artillery 4770 Parrott Confederate 7in.

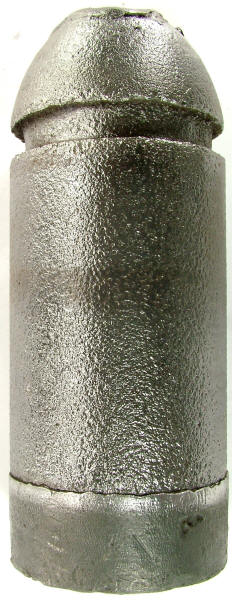

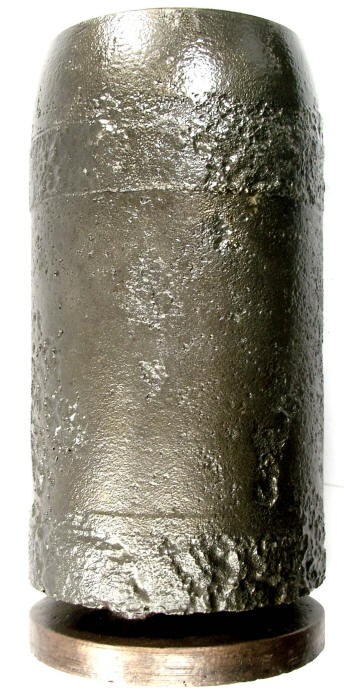

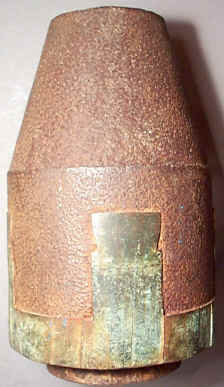

Rifled artillery projectile, Read design
Artillery 5000 Read

Rifled artillery projectile, Read design, 2.6in.
Artillery 5010 Read 2.6in.

More pictures and explanation, click here for Artillery 5010 Read 2.6in.

Rifled artillery projectile, Read design, 2.9in., and 3in.
Artillery 5020 Read 2.9in to 3.0in.

More pictures and explanation, click here for Artillery 5020 Read 2.9in. to 3in.

Rifled artillery projectile, Read design, 3.25 in., 3.3 in., 3.4 in., and 3.5 in.
Artillery 5080 Read 3.2in to 3.5in.

More pictures and explanation, click here for Artillery 5080 Read 3.2in. to 3.5in.

Rifled artillery projectile, Read design, 3.67in.
Artillery 5110 Read 3.67in.


More pictures and explanation, click here for Artillery 5110 Read 3.67in.

Rifled artillery projectile, Read design, 3.8 in.
Artillery 5130 Read 3.8in.


More pictures and explanation, click here for Artillery 5130 Read 3.8in.

Rifled artillery projectile, Read design, 4.2in.
Artillery 5140 Read 4.2in.


More pictures and explanation, click here for Artillery 5140 Read 4.2in.

Rifled artillery projectile, Read design, 4.62in.
Artillery 5150 Read 4.62in


More pictures and explanation, click here for Artillery 5150 Read 4.62in.

Rifled artillery projectile, Read 5.8in.
Artillery 5160 Read 5.8in.


More pictures and explanation, click here for Artillery 5160 Read 5.8in.

Rifled artillery projectile, Read design, 6.4in.
Artillery 5170 Read 6.4in.


More pictures and explanation, click here for Artillery 5170 Read 6.4in.

Rifled artillery projectile, Sawyer design
Artillery 5200 Sawyer

Rifled artillery projectile, Sawyer design, 3.67 in.
Artillery 5210 Sawyer 3.67in.

More pictures and explanation, click here for Artillery 5210 Sawyer 3.67in.

Rifled artillery projectile, Sawyer design, 4.2 in.
Artillery 5220 Sawyer 4.2in.

More pictures and explanation, click here for Artillery 5220 Sawyer 4.2in.

Rifled artillery projectile, Sawyer design, 5 in.
Artillery 5230 Sawyer 5in.

More pictures and explanation, click here for Artillery 5230 Sawyer 5in.

Rifled artillery projectile, Sawyer design, 6 in.
Artillery 5240 Sawyer 6in.

More pictures and explanation, click here for Artillery 5240 Sawyer 6in.

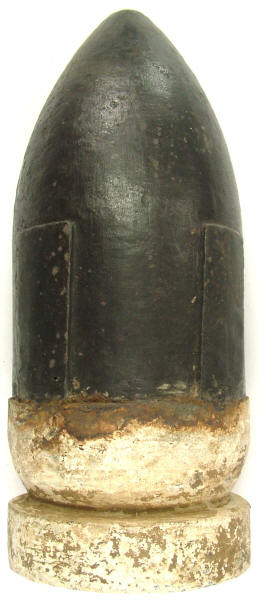

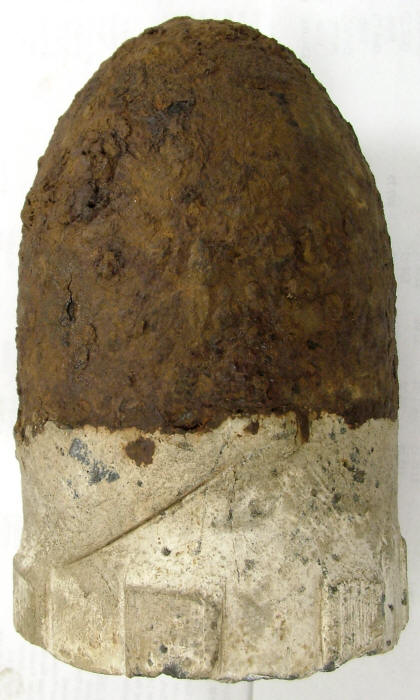

Rifled artillery projectile, Schenkl design
Artillery 5300 Schenkl

Rifled artillery projectile, Schenkl design, 3 in.
Artillery 5310 Schenkl 3in.

More pictures and explanation, click here for Artillery 5310 Schenkl 3in.

Rifled artillery projectile, Schenkl design, 3.4 in.
Artillery 5320 Schenkl 3.4in.

More pictures and explanation, click here for Artillery 5320 Schenkl 3.4in.

Rifled artillery projectile, Schenkl design, 3.67 in.
Artillery 5330 Schenkl 3.67in.

More pictures and explanation, click here for Artillery 5330 Schenkl 3.67in.

Rifled artillery projectile, Schenkl design, 4.2 in.
Artillery 5340 Schenkl 4.2in.

More pictures and explanation, click here for Artillery 5340 Schenkl 4.2in.

Rifled artillery projectile, Schenkl design, .4 in.
Artillery 5350 Schenkl 4.4in.

More pictures and explanation, click here for Artillery 5350 Schenkl 4.4in.

Rifled artillery projectile, Schenkl design, 4.5 in.
Artillery 5360 Schenkl 4.5in.

More pictures and explanation, click here for Artillery 5360 Schenkl 4.5in.

Rifled artillery projectile, Schenkl design, 5.1 in.
Artillery 5370 Schenkl 5.1in.

More pictures and explanation, click here for Artillery 5370 Schenkl 5.1in.

Rifled artillery projectile, Schenkl design, 6.4 in.
Artillery 5380 Schenkl 6.4in.

More pictures and explanation, click here for Artillery 5380 Schenkl 6.4in.

Rifled artillery projectile, Schenkl design, 8 in.
Artillery 5395 Schenkl 8in.

More pictures and explanation, click here for Artillery 5395 Schenkl 8in.

Rifled artillery projectile, Schenkl design Confederate adaptation, 3 in.
Artillery 5410 Schenkl Confederate, 3in.

More pictures and explanation, click here for Artillery 5410 Schenkl Confederate 3in.

Rifled artillery projectile, Schenkl design Confederate adaptation, 3.8 in.
Artillery 5420 Schenkl Confederate, 3.8in.

More pictures and explanation, click here for Artillery 5420 Schenkl Confederate 3.8in.

Rifled artillery projectile, Schenkl design, Confederate alteration, 4.2 in.
Artillery 5430 Schenkl Confederate, 4.2in.

More pictures and explanation, click here for Artillery 5430 Schenkl Confederate 4.2in.

Rifled artillery projectile, Selma Arsenal design
Artillery 5600 Selma

Rifled artillery projectile, Selma Arsenal design, 3.3in.
Artillery 5610 Selma 3.3in.

More pictures and explanation, click here for Artillery 5610 Selma 3.3in.

Rifled artillery projectile, Selma Arsenal design, 3.67in.
Artillery 5620 Selma 3.67in.

More pictures and explanation, click here for Artillery 5620 Selma 3.67in.

Rifled artillery projectile, Selma Arsenal design, 4.62in.
Artillery 5630 Selma 4.62in.

More pictures and explanation, click here for Artillery 5630 Selma 4.62in.

Rifled artillery projectile, Selma Arsenal design, 5.8 in.
Artillery 5640 Selma 5.8in.

More pictures and explanation, click here for Artillery 5640 Selma 5.8in.

Rifled artillery projectile, Selma Arsenal design, 6.4in.
Artillery 5650 Selma 6.4in.

More pictures and explanation, click here for Artillery 5650 Selma 6.4in.

Rifled artillery projectile, Skates design
Artillery 5700 Skates

Rifled artillery projectile, Skates design, 6.4in.
Artillery 5700 Skates, 6.4in.

More pictures and explanation, click here for Artillery 5710 Skates 6.4in.

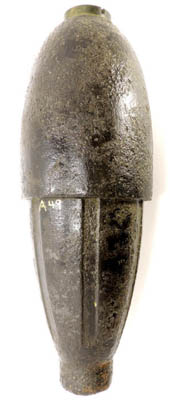

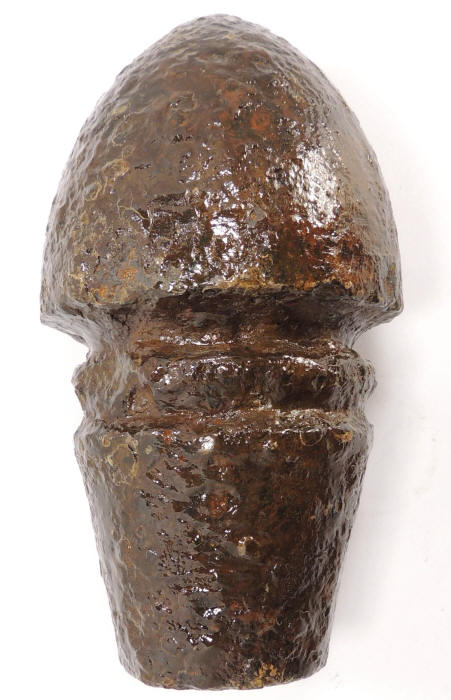

Rifled artillery projectile, Tennessee design
Artillery 5800 Tennessee

Rifled artillery projectile, Tennessee design, 2.25 in.
Artillery 5810 Tennessee 2.25in.

More pictures and explanation, click here for Artillery 5810 Tennessee 2.25in.

Rifled artillery projectile, Tennessee design, 3in.
Artillery 5820 Tennessee 3in.

More pictures and explanation, click here for Artillery 5820 Tennessee 3in.

Rifled artillery projectile, Tennessee design, 3.5in.
Artillery 5830 Tennessee 3.5in.

More pictures and explanation, click here for Artillery 5830 Tennessee 3.5in.

Rifled artillery projectile, Tennessee design, 4.2 in.
Artillery 5840 Tennessee 4.2in.

More pictures and explanation, click here for Artillery 5840 Tennessee 4.2in.

Rifled artillery projectile, Tennessee design, 4.62 in.
Artillery 5850 Tennessee 4.62in.

More pictures and explanation, click here for Artillery 5850 Tennessee 4.62in.

Rifled artillery projectile, Tennessee design, 5.3 in.
Artillery 5860 Tennessee 5.3in.

More pictures and explanation, click here for Artillery 5860 Tennessee 5.3in.

Rifled artillery projectile, Tennessee design, 5.8 in.
Artillery 5870 Tennessee 5.8in.


More pictures and explanation, click here for Artillery 5870 Tennessee 5.8in.

Rifled artillery projectile, Tennessee design, 6.4in.
Artillery 5880 Tennessee 6.4in.

More pictures and explanation, click here for Artillery 5880 Tennessee 6.4in.

Rifled artillery projectile, Tennessee design, 7in.
Artillery 5890 Tennessee 7in.


More pictures and explanation, click here for Artillery 5890 Tennessee 7in.

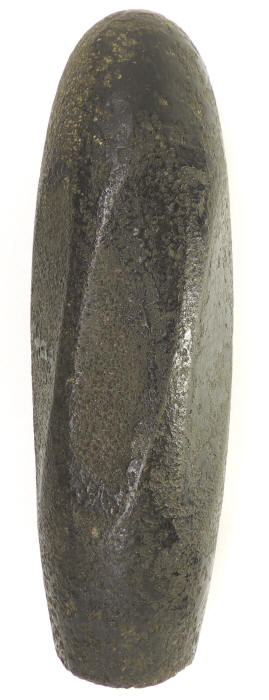

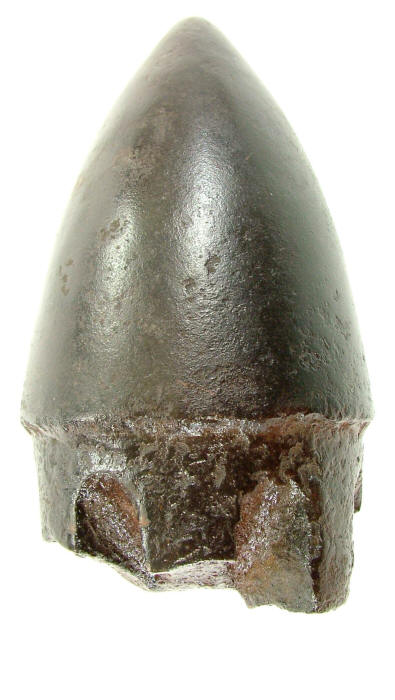

Rifled artillery projectile, Whitworth design
Artillery 5900 Whitworth

Rifled artillery projectile, Whitworth design, 2.75 in.
Artillery 5910 Whitworth 2.75in.

More pictures and explanation, click here for Artillery 5910 Whitworth 2.75in.

Rifled artillery projectile, Whitworth design, 3.75 in.
Artillery 5920 Whitworth 3.75in.

More pictures and explanation, click here for Artillery 5920 Whitworth 3.75in.

Grenades
Artillery 6100 grenades

More pictures and explanation, click here for Artillery 6100 Grenades.

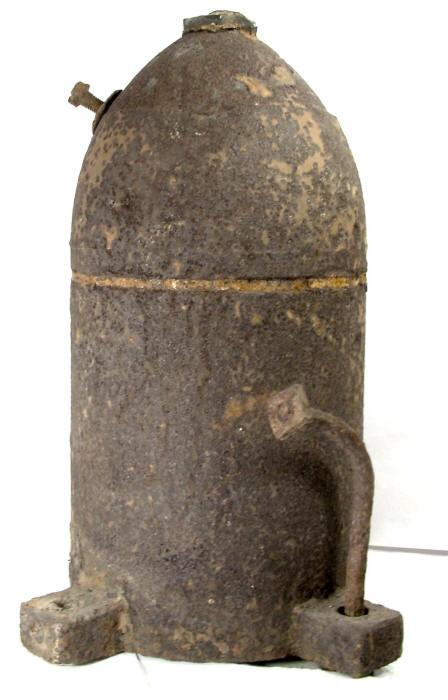

Mines and Torpedos
Artillery 6200 mines torpedos

More pictures and explanation, click here for Artillery 6200 Mines Torpedos.

Civil War rockets
Artillery 6300 rockets

More pictures and explanation, click here for Artillery 6300 Rockets.

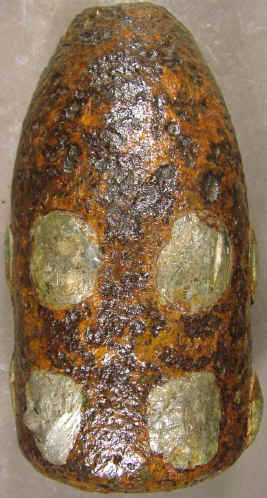

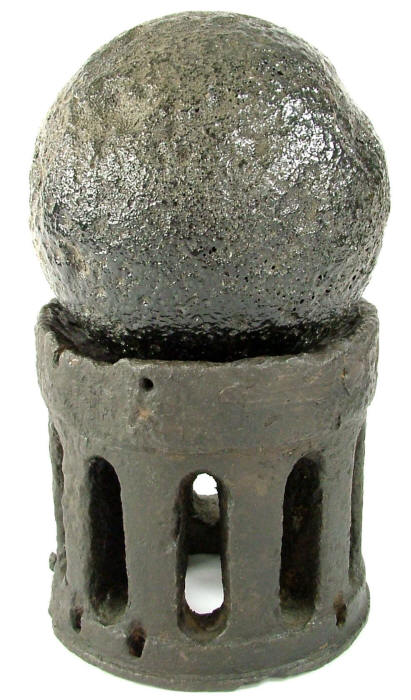

Artillery, other projectiles
Artillery 7000 other projectiles

More pictures and explanation, click here for Artillery 7000 Other Projectiles.

Confederate copper time fuze, smoothbore balls
Artillery 8000 Fuze Confederate ball

More pictures and explanation, click here for Artillery 8000 Fuze Confederate ball.

Confederate copper time fuze, rifled projectiles
Artillery 8050 Fuze Confederate rifled

More pictures and explanation, click here for Artillery 8050 Fuze Confederate rifled.

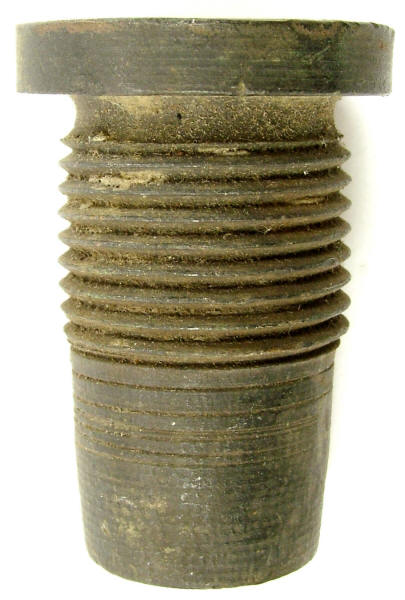

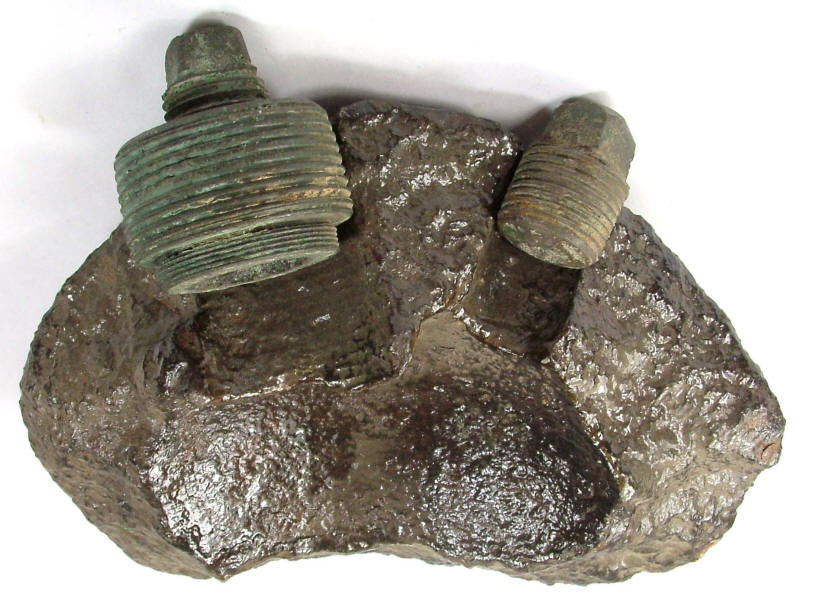

Navy watercap fuze
Artillery 8100 Fuze Navy watercap

More pictures and explanation, click here for Artillery 8100 Fuze Navy watercap.

Navy seacoast drive in fuze
Artillery 8150 Fuze Navy seacoast
More pictures and explanation, click here for Artillery 8150 Fuze Navy seacoast.

Confedederate Navy watercap fuze
Artillery 8200 Fuze Confederate watercap

More pictures and explanation, click here for Artillery 8200 Fuze Confederate watercap.

Wood time fuzes
Artillery 8250 Fuze wood
More pictures and explanation, click here for Artillery 8250 Fuze wood.

Absterdam fuzes
Artillery 8300 Fuze Absterdam
More pictures and explanation, click here for Artillery 8300 Fuze Absterdam.

Archer fuzes
Artillery 8350 Fuze Archer

More pictures and explanation, click here for Artillery 8350 Fuze Archer.

Bormann time fuze
Artillery 8400 Fuze Bormann

More pictures and explanation, click here for Artillery 8400 Fuze Bormann.

Dyer fuzes
Artillery 8450 Fuze Dyer

More pictures and explanation, click here for Artillery 8450 Fuze Dyer.

Hotchkiss fuzes
Artillery 8500 Fuze Hotchkiss

More pictures and explanation, click here for Artillery 8500 Fuze Hotchkiss.

Parrott fuzes
Artillery 8550 Fuze Parrott

More pictures and explanation, click here for Artillery 8550 Fuze Parrott.

Schenkl fuzes
Artillery 8600 Fuze Schenkl

More pictures and explanation, click here for Artillery 8600 Fuze Schenkl.

Wright time fuze
Artillery 8650 Fuze Wright

More pictures and explanation, click here for Artillery 8650 Fuze Wright.

Paper primers
Artillery 8900 Fuze paper primer

More pictures and explanation, click here for Artillery 8900 Fuze Paper Primer.

and now a word from our sponsor.....

Civil War Relicman, Harry Ridgeway,
Civil War artillery, Relicman sales catalog
.
Click here: http://relicman.com/artillery/RelicmanSalesArtillery1.html.

Artillery for sale: http://relicman.com/artillery/RelicmanSalesArtillery1.html.
