	Civil War Artillery
	by Harry Ridgeway

Research Center: Artillery1264-Ball12pdr

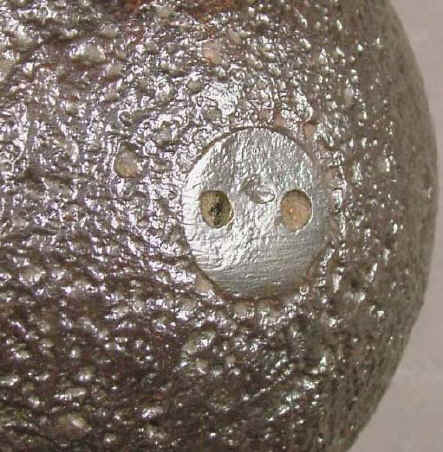

Smoothbore artillery projectile, spherical ball, bursting shell, "case shot", Confederate copper time fuze, copper sideplug, smoothbore 12 pounder, 4.62in. Projectile is Confederate wartime manufacture for the light smoothbore "Napoleon" cannon using the copper time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. Those with side plugs were generally configured as case shot (approx 10lbs. with iron balls), those without side plugs are usually "common" (approx 9lbs.) and without balls. This shell is "case shot" and employed a side plug as a way to load iron balls into the shell. Conventional case shot shells were usually filled with soft matrix and lead balls, an auger would be used to drill through the lead balls and the matrix to create a void for the powder train. Because of a shortage of lead, the Confederates substituted iron balls. To drill through a mixture of matrix and iron balls would be difficult, so a sizing rod would be inserted through the fuze hole to reserve a void for the powder, the iron balls and matrix would be loaded through a side hole, once loaded the side hole would be plugged, the sizing rod would be removed, and the powder train would be filled. This one was sealed with a copper sideplug. Fuze employed was a Confederate copper time fuze, short pattern for spherical projectiles, with flange and spanner holes, the fuze hole is recessed to seat the flange flush with the curvature of the ball, (Jones pg. 38). Projectile measures: diameter 4.52in., weight 10lbs. Research Center: Artillery1264-Ball12pdr, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 42. Details click: http://relicman.com/artillery/Artillery1264-Ball12pdr.html.

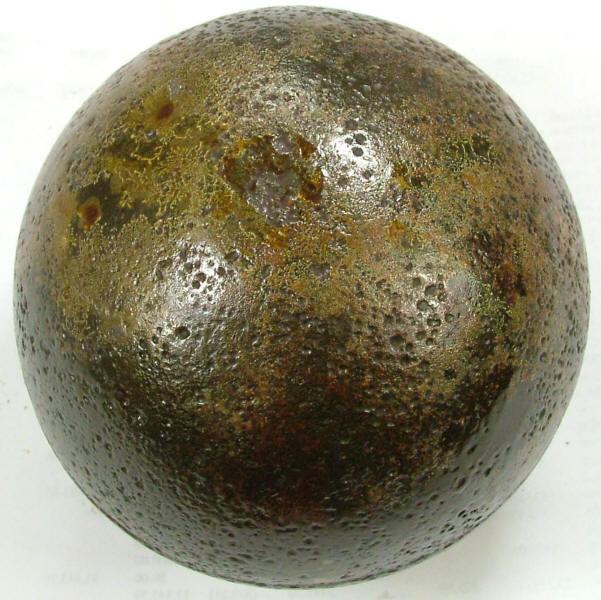

A0015...Smoothbore artillery projectile, spherical ball, bursting shell, "case shot", Confederate copper time fuze, copper sideplug, smoothbore 12 pounder, 4.62in. Projectile is Confederate wartime manufacture for the light smoothbore "Napoleon" cannon using the copper time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. Those with side plugs were generally configured as case shot (approx 10lbs. with iron balls), those without side plugs are usually "common" (approx 9lbs.) and without balls. This shell is "case shot" and employed a side plug as a way to load iron balls into the shell. Conventional case shot shells were usually filled with soft matrix and lead balls, an auger would be used to drill through the lead balls and the matrix to create a void for the powder train. Because of a shortage of lead, the Confederates substituted iron balls. To drill through a mixture of matrix and iron balls would be difficult, so a sizing rod would be inserted through the fuze hole to reserve a void for the powder, the iron balls and matrix would be loaded through a side hole, once loaded the side hole would be plugged, the sizing rod would be removed, and the powder train would be filled. This one was sealed with a copper sideplug. Fuze employed was a Confederate copper time fuze, short pattern for spherical projectiles, with flange and spanner holes, the fuze hole is recessed to seat the flange flush with the curvature of the ball, (Jones pg. 38). Projectile measures: diameter 4.52in., weight 9.9lbs. This one used a copper sideplug, which is a recycled Bormann fuze under-plug. Copper time fuze, brass plug are intact, metal quality is strong. Ball disarmed, drill hole though paper section of the time fuze. Recovered: Third Battle Winchester, Virginia by Harry Ridgeway, 1960's. Shell was found initially in the dead of winter at the site now occupied by Dowell J Howard school. At the time the ground was too frozen to dig so the location was carefully cross referenced and dug with the first thaw! Ref: Dickey & George, Field Artillery (1993 Edition), pg. 32. Ridgeway collection, Old Court House Civil War Museum, Winchester, Virginia

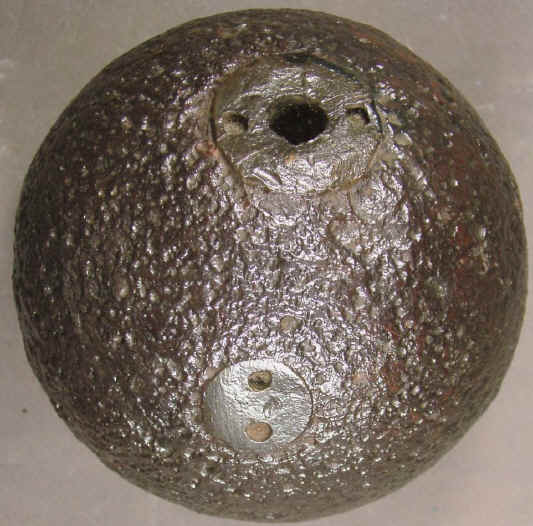

A1786...Smoothbore artillery projectile, spherical ball, bursting shell, "case shot", Confederate copper time fuze, copper sideplug, smoothbore 12 pounder, 4.62in. Projectile is Confederate wartime manufacture for the light smoothbore "Napoleon" cannon using the copper time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. Those with side plugs were generally configured as case shot (approx 10lbs. with iron balls), those without side plugs are usually "common" (approx 9lbs.) and without balls. This shell is "case shot" and employed a side plug as a way to load iron balls into the shell. Conventional case shot shells were usually filled with soft matrix and lead balls, an auger would be used to drill through the lead balls and the matrix to create a void for the powder train. Because of a shortage of lead, the Confederates substituted iron balls. To drill through a mixture of matrix and iron balls would be difficult, so a sizing rod would be inserted through the fuze hole to reserve a void for the powder, the iron balls and matrix would be loaded through a side hole, once loaded the side hole would be plugged, the sizing rod would be removed, and the powder train would be filled. This one was sealed with a copper sideplug. Fuze employed was a Confederate copper time fuze, short pattern for spherical projectiles, with flange and spanner holes, the fuze hole is recessed to seat the flange flush with the curvature of the ball, (Jones pg. 38). Projectile measures: diameter 4.52in., weight 10lbs. Metal solid with light pitting, copper time fuze and copper plug intact. Projectile is disarmed, drill hole through the paper section of the time fuze. Recovered: Richmond, Petersburg, Virginia campaign. Ref: Dickey & George, Field Artillery (1993 Edition), pg. 42.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
