	Civil War Artillery
	by Harry Ridgeway

Research Center: Artillery1282-Ball12pdr

Smoothbore ball, Federal manufacture, bursting shell, Wright time fuze, iron center with screwdriver slot, smoothbore 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder "Napoleon" using the Wright time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. The Wright time fuze with a 15 second range, was a late was innovation, and would allow for a significantly longer firing range. However it is doubtful that any of the 12 pound smoothbores of the period could take the additional stress of such long range firing, hence this pattern had limited applicability. Fuze employed was the Wright time fuze which utilized a white metal ring marked for 15 second increments, center is serviced with an iron cap fastened with a screwdriver slots, (Jones not listed). Projectile measures: diameter 4.52in., weight 7.9lb. Research Center: Artillery1282-Ball12pdr, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 37. Details click: http://relicman.com/artillery/Artillery1282-Ball12pdr.html.

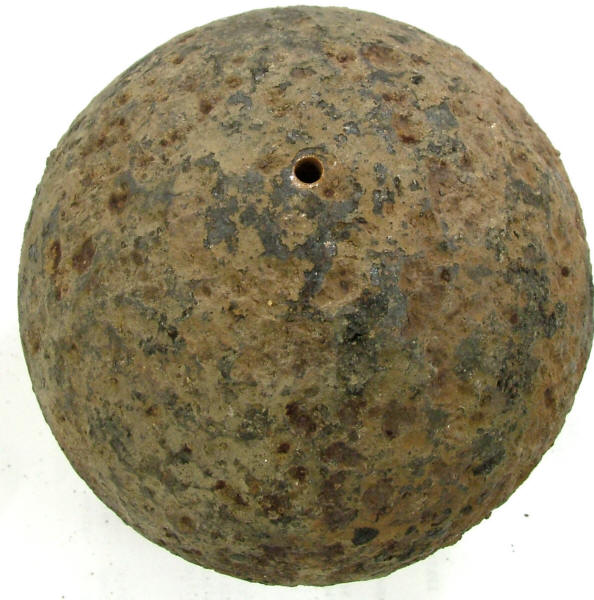

A1207...Smoothbore ball, Federal manufacture, bursting shell, Wright time fuze, iron center with screwdriver slot, smoothbore 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder "Napoleon" using the Wright time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. The Wright time fuze with a 15 second range, was a late was innovation, and would allow for a significantly longer firing range. However it is doubtful that any of the 12 pound smoothbores of the period could take the additional stress of such long range firing, hence this pattern had limited applicability. Fuze employed was the Wright time fuze which utilized a white metal ring marked for 15 second increments, center is serviced with an iron cap fastened with a screwdriver slots, (Jones not listed). Projectile measures: diameter 4.52in., weight 7.9lb. Wright time fuze intact. Projectile is disarmed: drill hole through the bottom, drill hole is left small, no evidence of powder was found inside. Recovered: not determined. Ref: Dickey & George, Field Artillery (1993 Edition), pg. 37.

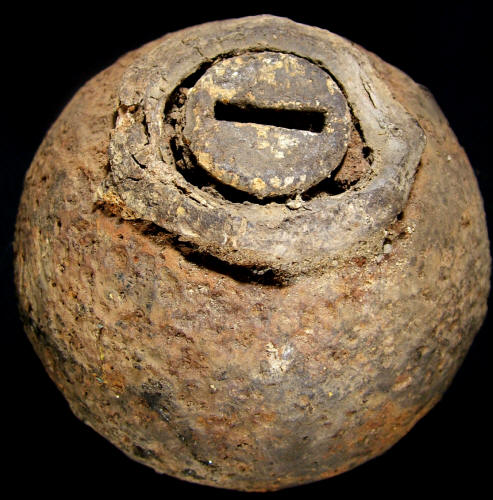

A1209...Smoothbore ball, Federal manufacture, bursting shell, Wright time fuze, iron center with screwdriver slot, smoothbore 12 pounder, 4.62in. Projectile was intended for the smoothbore 12 pounder "Napoleon" using the Wright time fuze designed to detonate in the air above the target, spreading fragments against troops in the open field. The Wright time fuze with a 15 second range, was a late was innovation, and would allow for a significantly longer firing range. However it is doubtful that any of the 12 pound smoothbores of the period could take the additional stress of such long range firing, hence this pattern had limited applicability. Fuze employed was the Wright time fuze which utilized a white metal ring marked for 15 second increments, center is serviced with an iron cap fastened with a screwdriver slots, (Jones not listed). Projectile measures: diameter 4.52in., weight 7.9lb. Wright time fuze intact. Projectile is disarmed: drill hole through the bottom, drill hole is left small, no evidence of powder was found inside. Recovered: not determined. Ref: Dickey & George, Field Artillery (1993 Edition), pg. 37.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.
