Research Center: Artillery4647-Parrott

Rifled artillery projectile, Parrott design, Federal manufacture, bursting shell, short pattern "case shot" balls packed in sulfur matrix, wrought iron sabot, Parrott time fuze with a flange, Parrott 20 pounder rifle, 3.67in. Projectile was manufactured in the Federal arsenals following the prewar invention of Robert Parrott and John Read working together. The sabot system utilized was a wrought iron ring, referred to as the "Type I" sabot, rifling was precast with five flanges, because it was too stiff to take the rifling otherwise. Some of these shells were configured as case shot, (approx. 17.5lbs to 19lbs. with balls, short, 9.25in.), or as "common" (approx 15lbs. to 17lbs. without balls, long 10.25in.). This shell is "case shot", explosive charge with lead balls, and with a time fuze was designed to detonate above the heads of troops in the open field. Lead case shot balls are packed in yellow or sulfur matrix. Fuze employed was a Parrott zinc time fuze, typically the pattern with a flat flange, (Jones pg. 77)., top of the fuze hole is milled wide to seat the flange. Bottom of shell usually shows a casting sprue which was rough milled. Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 17.5lbs to 19lbs. Research Center: Artillery4647-Parrott, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 219. Details click: http://relicman.com/artillery/Artillery4647-Parrott.html.

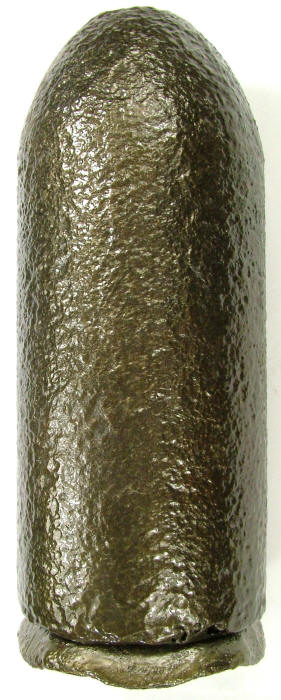

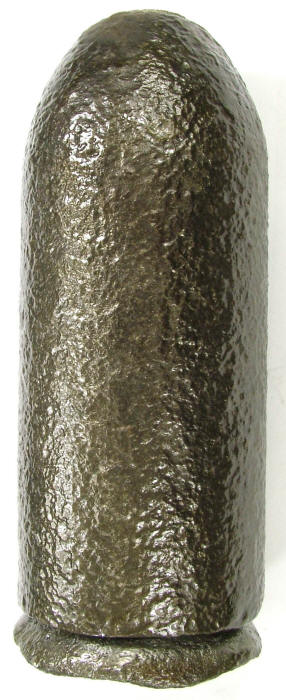

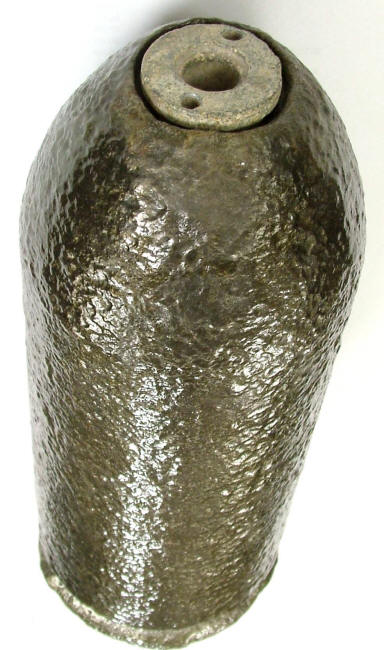

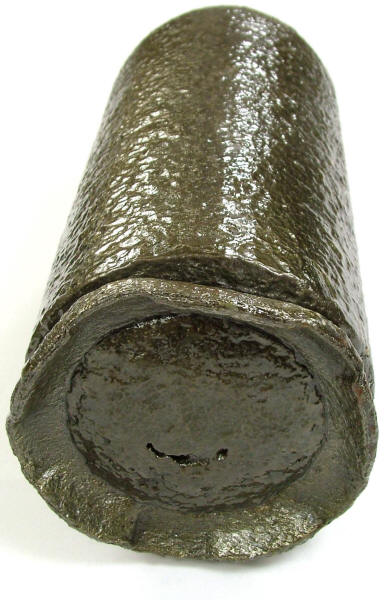

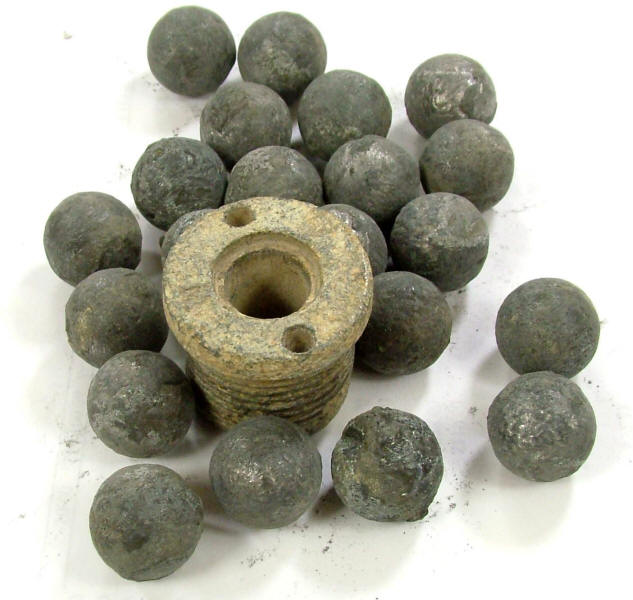

A0067... Projectile measures: diameter 3.6in., length 9.0in. (excluding fuze), weight 13lbs. (empty). Wrought iron sabot shows five precast rifled lands and grooves. Parrott time fuze is replacement but is correct style and can be removed by hand, "W" marking is clear. Metal strong, the shell contained about 20 lead balls all of which are original to this shell and were removed through the fuze hole during restoration. Shell is disarmed, open fuze hole exposes empty interior. Recovered: Virginia campaign.

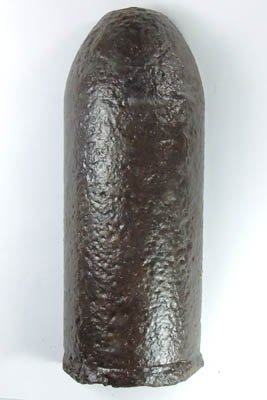

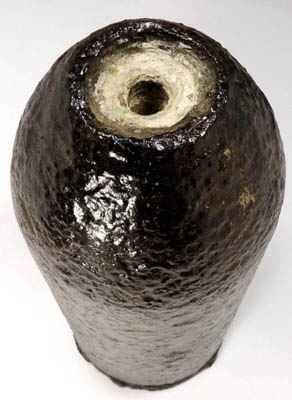

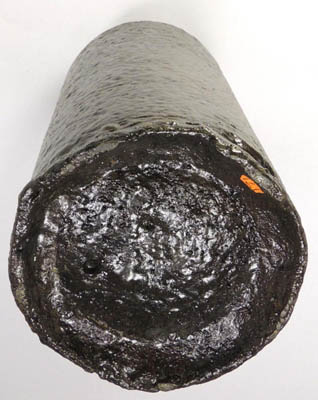

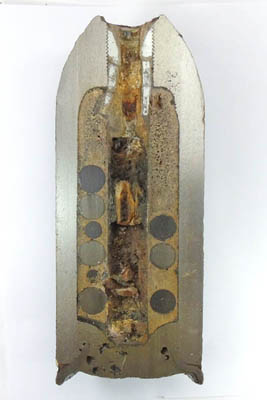

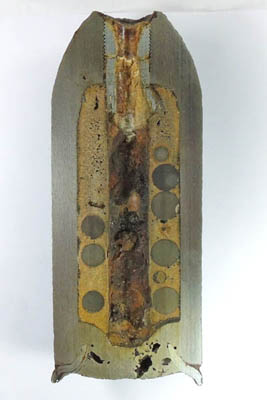

A1583... Projectile measures: diameter 3.62in., length 9.0in. (excluding fuze), weight 17.6lb. Wrought iron sabot shows five precast rifled lands and grooves. Parrott time fuze is partial. Metal is solid, Shell is disarmed by drill hole through the paper section of the fuze. Recovered: Port Hudson, Louisiana.

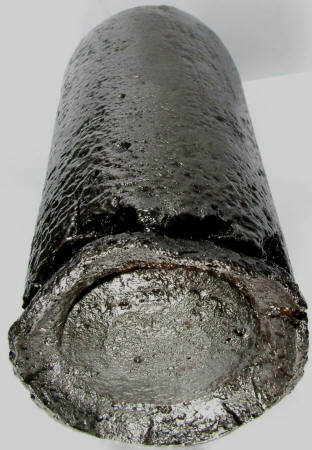

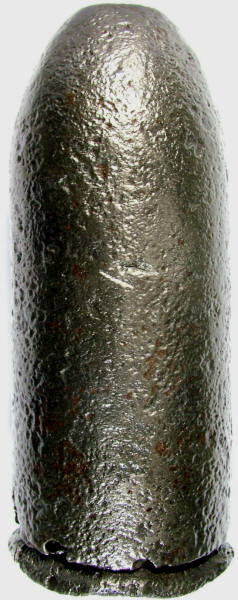

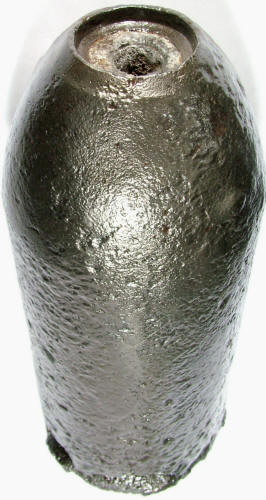

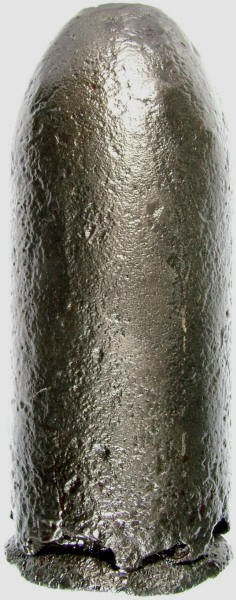

A2084... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 18lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott time fuze is partial. Metal is solid. Shell is disarmed by drill hole through the paper section of the fuze. Recovered: Port Hudson, Louisiana.

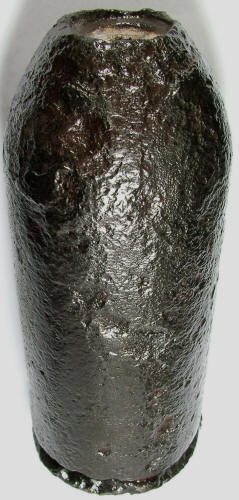

A2085... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 18lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott flanged time fuze is partial. Metal is solid, shell is cut exposing the interior with sulfur matrix and case shot balls. The powder chamber is way off center in this example. Shell is disarmed, cut shell exposes interior. Recovered: Port Hudson, Louisiana. Cut shell shows cross section.

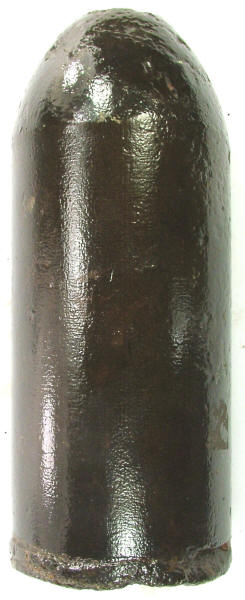

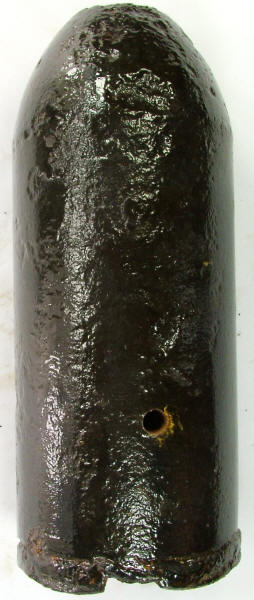

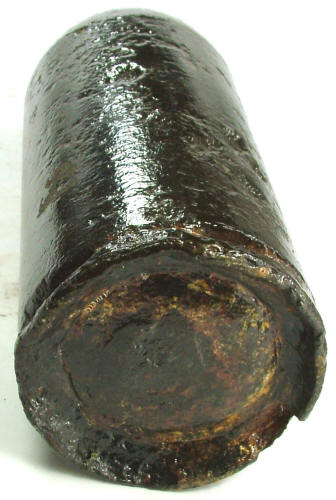

A2370... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 17.9lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott time fuze is partial. Metal is solid. Shell is disarmed by drill hole through the paper section of the fuze. Recovered: Port Hudson, Louisiana.

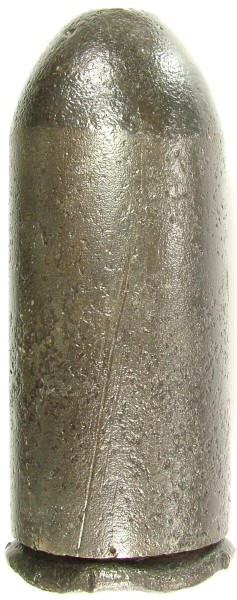

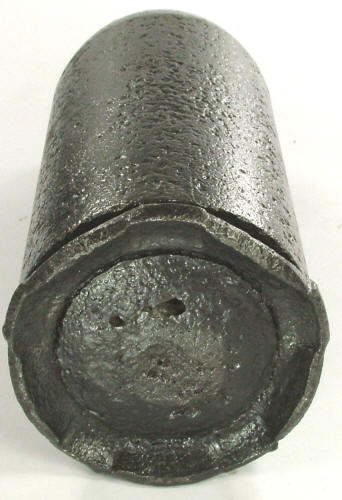

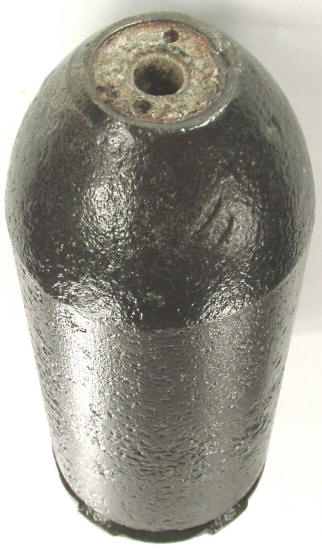

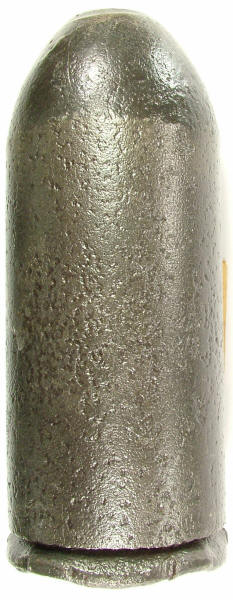

A2779... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 19lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott time fuze is partial. Metal is solid. Shell is disarmed by drill hole through the paper section of the fuze. Recovered: not known.

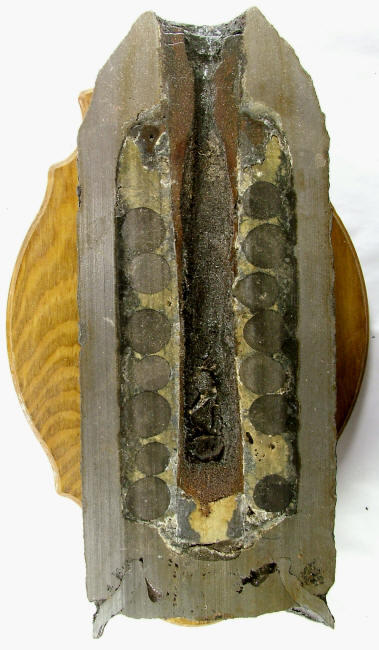

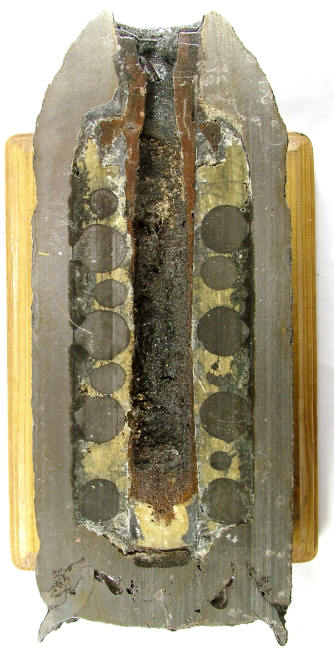

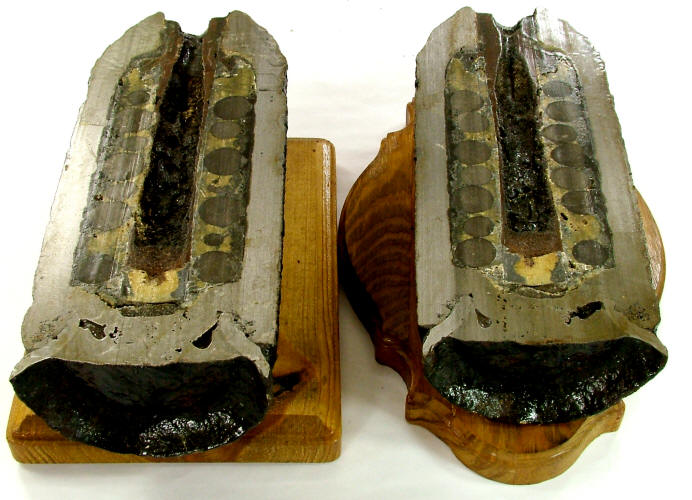

A2887... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), weight approx 19lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott flanged time fuze is partial. Metal is solid, shell is cut exposing the interior with sulfur matrix and case shot balls. Shell is disarmed, cut shell exposes interior. Recovered: Virginia campaign. Cut shell shows cross section.

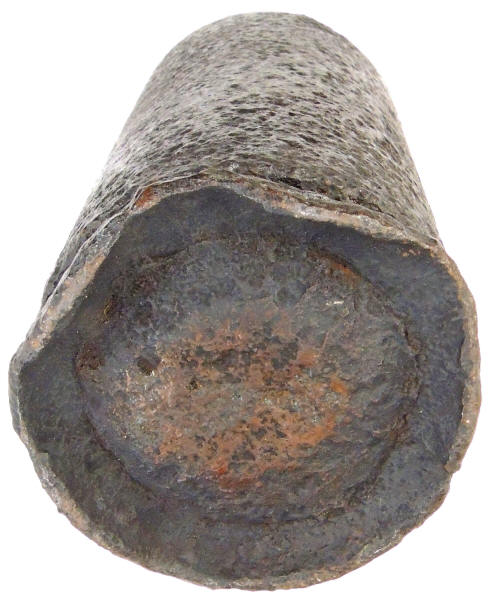

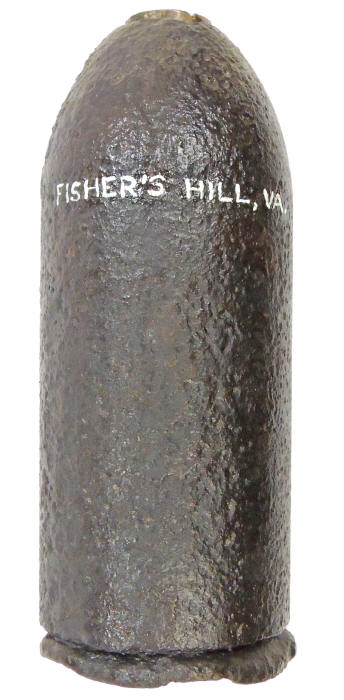

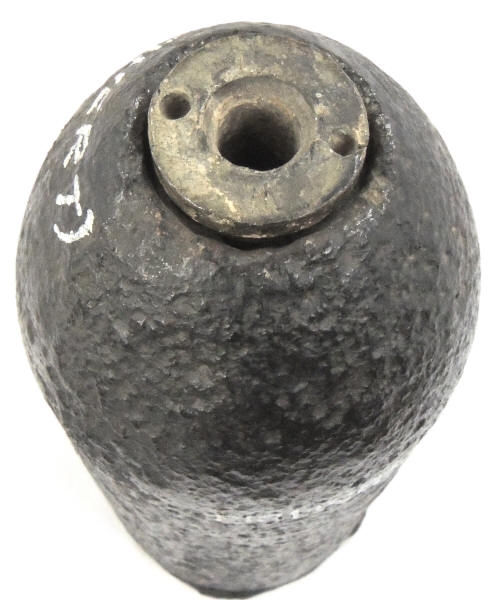

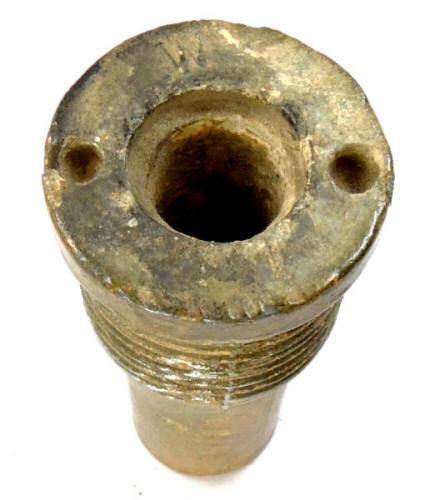

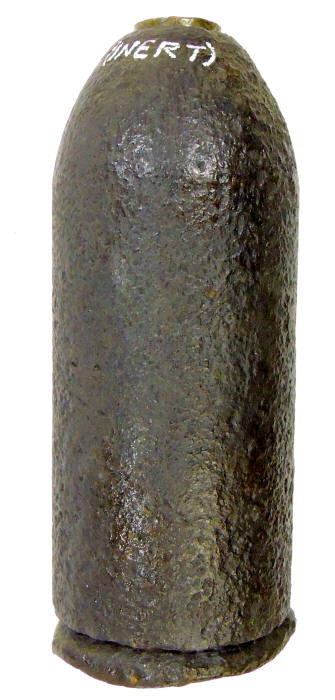

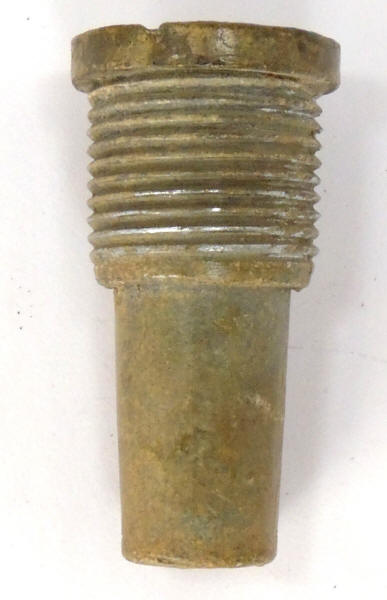

A2969... Projectile measures: diameter 3.62in., length 9.25 in. (excluding fuze), 19lbs. Wrought iron sabot shows five precast rifled lands and grooves. Parrott flanged time fuze marked "W" can be removed by hand. Metal is solid. Shell is disarmed, removable fuze exposes interior filled with case shot balls in sulfur matrix. Recovered: Fishers Hill, Virginia.
