	Civil War Artillery
	by Harry Ridgeway

Research Center: Artillery4654-Parrott

Rifled artillery projectile, Parrott design, Federal manufacture, bursting shell, long pattern "common" (standard), high band scalloped or corrugated brass ring sabot, Parrott percussion fuze West Point Style, Parrott 20 pounder rifle, 3.67in. Projectile was manufactured in the Federal arsenals following the invention of Robert Parrott. The sabot system utilized was an early development of the high band sabot, this pattern with the scalloped or corrugated shaped edge is now determined to be a prototype preceding the high band Type II Parrott sabot, it was apparently tested briefly and abandoned. All projectiles of this sabot type are "common" shell, (standard), not containing balls, and with a percussion fuze it was designed to detonate after striking enemy cannon or equipment. Fuze employed was a Parrott zinc percussion fuze, "West Point" style two part fuze, Jones pg. 79, fuze hole will have a thin milled lip. Bottom of shell usually shows a casting sprue which was rough milled. Projectile measures: diameter 3.65in., length 10.5in. (excluding fuze), weight 16.6lbs. Research Center: Artillery4654-Parrott, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 227. Details click: http://relicman.com/artillery/Artillery4654-Parrott.html.

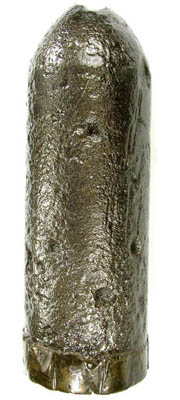

A0300... Projectile measures: diameter 3.65in., length 10.5in. (excluding fuze), weight 16.6lbs. Fired sabot intact showing 5 lands and grooves. Parrott percussion fuze is partial. Metal quality strong, with areas of pitting. Projectile is disarmed, drill hole through the bottom. Recovered: battlefield or test range not known, rare shell.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.
