	Civil War Artillery
	by Harry Ridgeway

Research Center: Artillery4661-Parrott

Rifled artillery projectile, Parrott design, Federal manufacture, solid bolt, "flat top" pattern, narrow ring brass sabot, Parrott 20 pounder rifle, 3.67in. Projectile was manufactured in the Federal arsenals following the invention of Robert Parrott. The sabot system utilized was a narrow brass ring secured to the base with internal rabbets, referred to as "type III", more flexible than wrought iron and more narrow than the high band, this took the rifling much better than the earlier designs. Shell is solid casting, or "bolt" and was designed to be used against opposing cannon by striking the equipment, use of this light bolt had limited applicability and is relatively scarce in the smaller calibers. Nose of this pattern is blunt, top is nearly flat. Bottom of shell usually shows a casting sprue which was rough milled, there will often be casting flaws near the base. Projectile measures: diameter 3.6in., length 8.0in., weight 19lbs. Research Center: Artillery4661-Parrott, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 229. Details click: http://relicman.com/artillery/Artillery4661-Parrott.html.

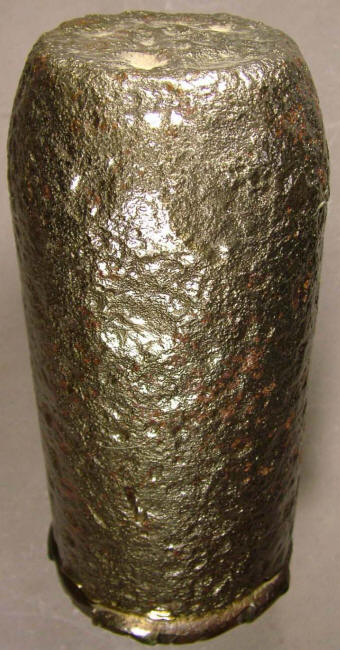

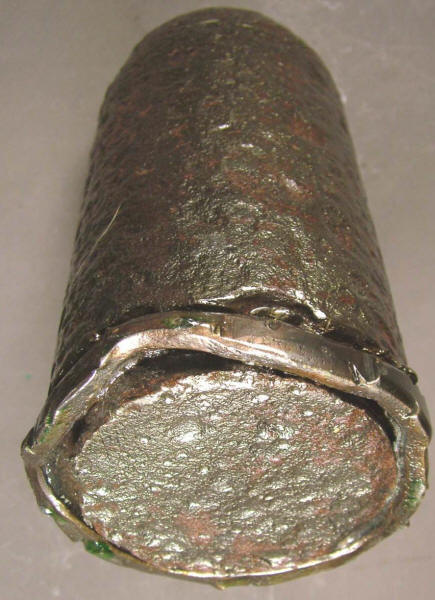

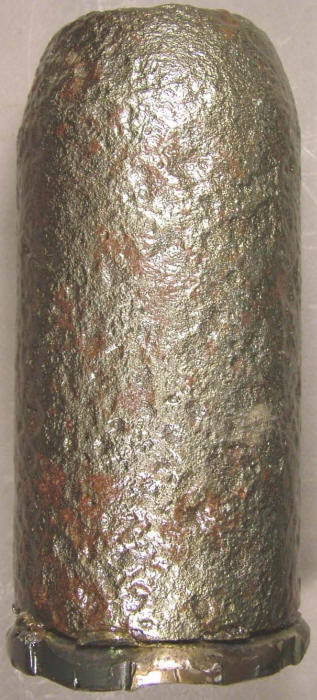

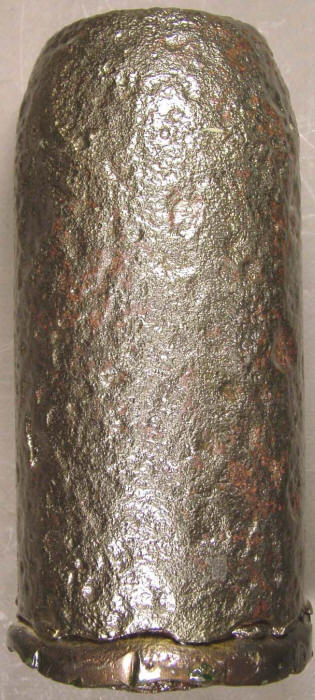

A0073... Projectile measures: diameter 3.6in., length 8.0in., weight 19lbs. Sabot is fired showing 5 lands and grooves. Metal strong, areas of light pitting. Projectile is disarmed, casting is solid iron. Recovered: Vicksburg, Mississippi.

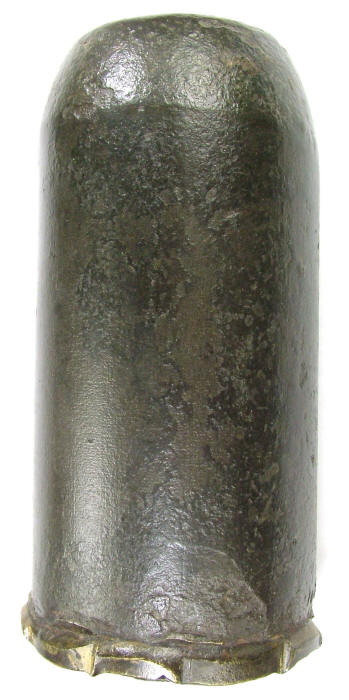

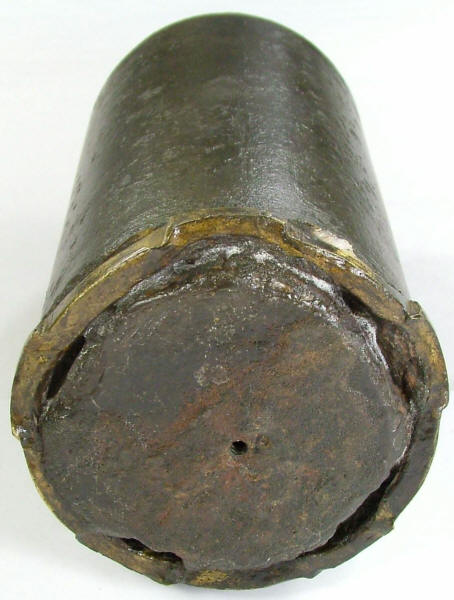

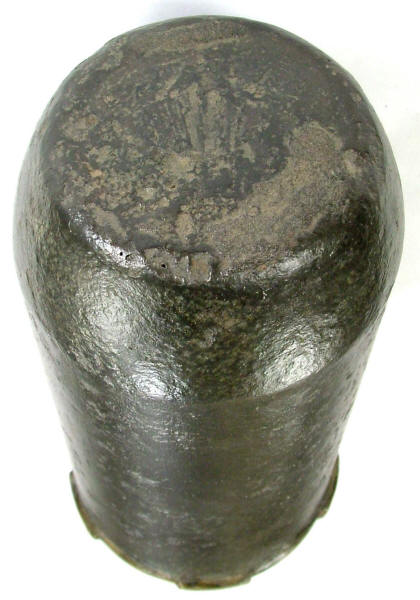

A0806... Projectile measures: diameter 3.62in., length 8in. (excluding fuze), weight 19lbs. Sabot is fired showing 5 lands and grooves. Metal is stable, projectile recovered from wet ground and has been treated. Projectile is disarmed, casting is solid iron. Recovered: Secessionville, near Charleston, South Carolina.

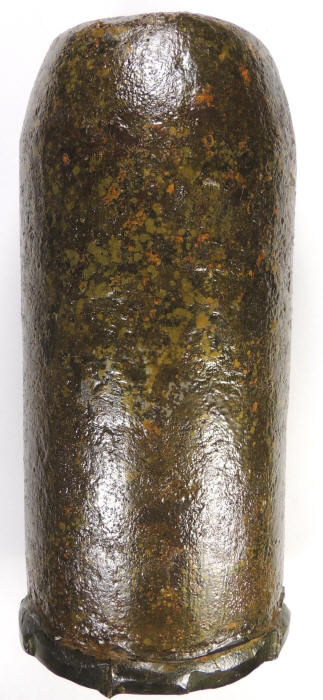

A1869... Projectile measures: diameter 3.62in., length 7.75in. (excluding fuze), weight 19.4lb. Sabot is fired showing 5 lands and grooves. Metal strong, areas of light pitting. Projectile is disarmed, casting is solid iron. Recovered: Secessionville, near Charleston, South Carolina.

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.
