Civil War Artillery
by Harry Ridgeway


Research Center: Artillery5911-Whitworth
Rifled artillery projectile, Whitworth design, English manufacture, solid bolt, hexagonal spiral rifling with no sabot, Whitworth 12 pounder rifle, 2.75 in.
Projectile was English manufactured following the invention of Sir Joseph Whitworth. The weapon employed a breechloading gun with hexagonal rifled twist that was more extreme than other conventional rifling systems. The result was that projectiles fired from a Whitworth rifle would achive greater spiral and greater range, however the shells had to be long and narrow and consequently could not carry a meaningful explosive charge in smaller calibers. This weapon system never was accepted by the English government and so all production was exported, most of it to the Civil War in America. However the cannons were difficult to manufacture and the shells and guns required more prescion machining than was typically practiced at the time, so few actually made it into the field, most were sold as surplus stocks after the war through Bannerman. Projectile measures: diameter 2.73in., length 9.5in., weight 12 lbs.
Research Center: Artillery5911-Whitworth, Ref: Dickey & George, Field Artillery (1993 Edition), pg. 329.

Details click: http://relicman.com/artillery/Artillery5911-Whitworth.html.

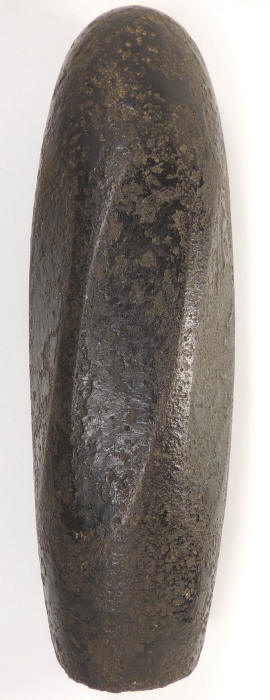

A0795...Rifled artillery projectile, Whitworth design, English manufacture, solid bolt, hexagonal spiral rifling with no sabot, Whitworth 12 pounder rifle, 2.75 in.
Projectile was English manufactured following the invention of Sir Joseph Whitworth. The weapon employed a breechloading gun with hexagonal rifled twist that was more extreme than other conventional rifling systems. The result was that projectiles fired from a Whitworth rifle would achive greater spiral and greater range, however the shells had to be long and narrow and consequently could not carry a meaningful explosive charge in smaller calibers. This weapon system never was accepted by the English government and so all production was exported, most of it to the Civil War in America. However the cannons were difficult to manufacture and the shells and guns required more prescion machining than was typically practiced at the time, so few actually made it into the field, most were sold as surplus stocks after the war through Bannerman. Projectile measures: diameter 2.73in., length 9.5in., weight 12 lbs. Projectile is disarmed, casting is solid and never had a bursting chamber. Recovered: surplus stocks.
Ref: Dickey & George, Field Artillery (1993 Edition), pg. 329.

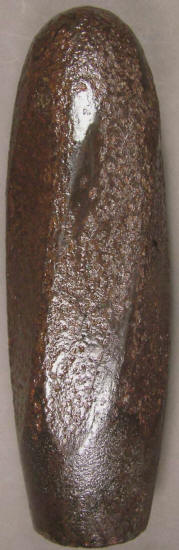

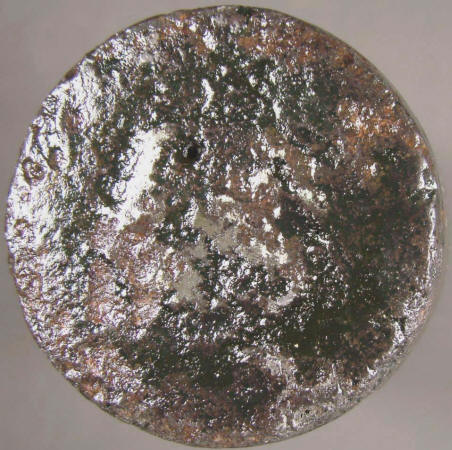

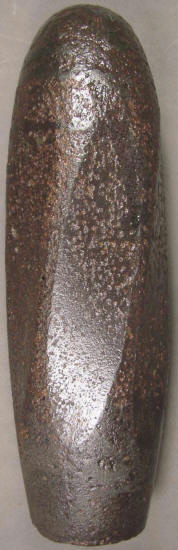

A1529...Rifled artillery projectile, Whitworth design, English manufacture, solid bolt, hexagonal spiral rifling with no sabot, Whitworth 12 pounder rifle, 2.75 in.
Projectile was English manufactured following the invention of Sir Joseph Whitworth. The weapon employed a breechloading gun with hexagonal rifled twist that was more extreme than other conventional rifling systems. The result was that projectiles fired from a Whitworth rifle would achive greater spiral and greater range, however the shells had to be long and narrow and consequently could not carry a meaningful explosive charge in smaller calibers. This weapon system never was accepted by the English government and so all production was exported, most of it to the Civil War in America. However the cannons were difficult to manufacture and the shells and guns required more prescion machining than was typically practiced at the time, so few actually made it into the field, most were sold as surplus stocks after the war through Bannerman. Projectile measures: diameter 2.73in., length 9.5in., weight 12 lbs. Projectile is disarmed, casting is solid and never had a bursting chamber. Recovered: surplus stocks.
Ref: Dickey & George, Field Artillery (1993 Edition), pg. 329.

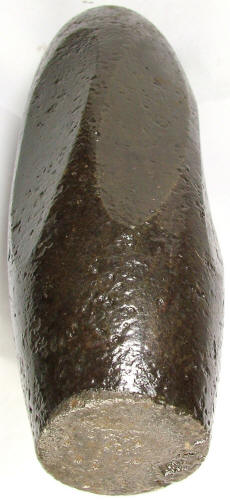

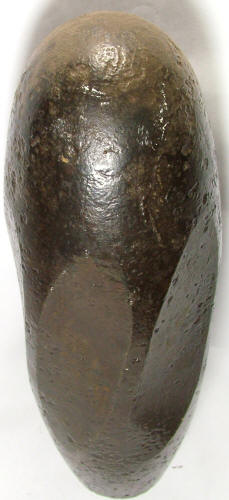

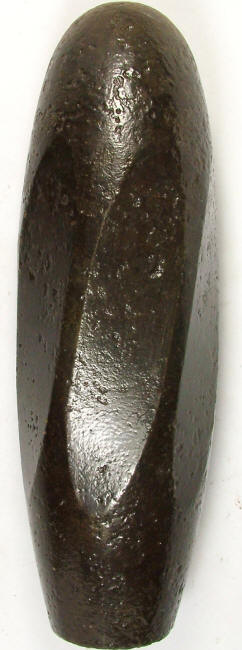

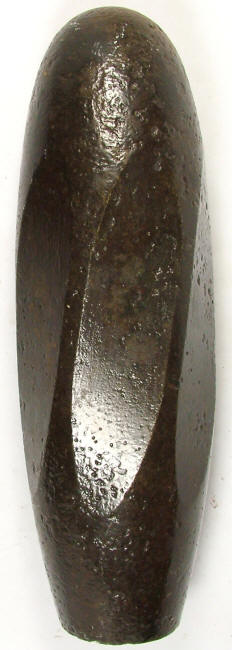

A2140...Rifled artillery projectile, Whitworth design, English manufacture, solid bolt, hexagonal spiral rifling with no sabot, Whitworth 12 pounder rifle, 2.75 in.
Projectile was English manufactured following the invention of Sir Joseph Whitworth. The weapon employed a breechloading gun with hexagonal rifled twist that was more extreme than other conventional rifling systems. The result was that projectiles fired from a Whitworth rifle would achive greater spiral and greater range, however the shells had to be long and narrow and consequently could not carry a meaningful explosive charge in smaller calibers. This weapon system never was accepted by the English government and so all production was exported, most of it to the Civil War in America. However the cannons were difficult to manufacture and the shells and guns required more prescion machining than was typically practiced at the time, so few actually made it into the field, most were sold as surplus stocks after the war through Bannerman. Projectile measures: diameter 2.73in., length 9.5in., weight 12 lbs. Projectile is disarmed, casting is solid and never had a bursting chamber. Recovered: surplus stocks.
Ref: Dickey & George, Field Artillery (1993 Edition), pg. 329.


This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. This information is available for research purposes, pictures may be used by permission only.
All excavated artifacts have been recovered from private property with owner's permission.
All projectiles listed have been disarmed.

Most information on this page is from:
Field Artillery Projectiles of the American Civil War, 1993 Edition. by Thomas S. Dickey and Peter C. George.
Civil War Heavy Explosive Ordnance, A Guide to Large Artillery Prjectiles, Torpedoes, and Mines, by Jack Bell.
Artillery Fuses of the Civil War, by Charles H. Jones.
Pictures are by the author, unless otherwise indicated.
