Ridgeway Civil War Research Center, A virtual examination of artifacts of the American Civil War
	Civil War Weapons, all pre 1898
	by Harry Ridgeway

Percussion revolver, Colt. . Research Center: Weapon4100-Revolver-Colt . Details click: http://relicman.com/weapons/Weapon4100-Revolver-Colt.html

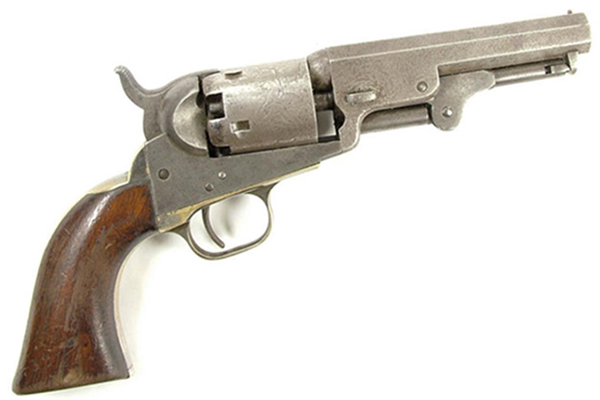

Five shot percussion revolver, Colt Model 1849 pocket, round cylinder , 5in barrel, address New York, .31 cal. . Colt, Model 1849 pocket revolver was a percussion fired five shooter, .31 caliber, it was the most popular of the Colt revolvers, it could be concealed or easily carried and was popular for self defense both by civilians and military. The design followed Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks: Top of barrel is marked - ADDRESS COL. SAML COLT NEW - YORK U. S. AMERICA -. Left frame is marked COLTS / PATENT. Cylinder is marked with a stage coach scene, which is usually weak. Matching serial number, appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder (last five digits, wedge (five digits), and inside on cylinder pin (four digits). Standard design employed octagonal barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, three screws, cylinder is round, rotation controlled with notches, brass trigger guard and back strap, walnut grips. Octagon barrel length 5in. Research Center: Weapon4111-Revolver-Colt-31cal-Model-1849-Pocket . Reference: Flayderman 5B-042. Details click: http://relicman.com/weapons/Weapon4111-Revolver-Colt-31cal-Model-1849-Pocket.html

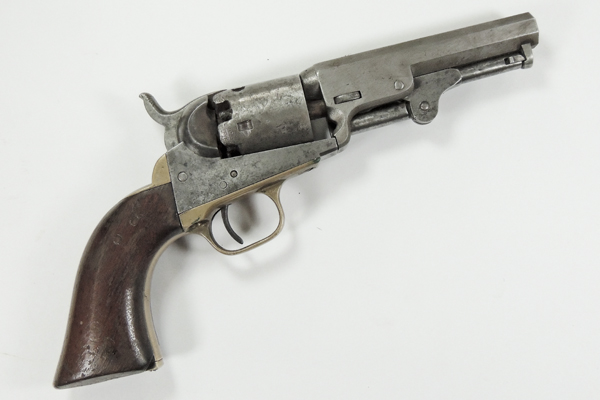

Five shot percussion revolver, Colt Model 1849 pocket, round cylinder , 4in barrel, address New York, .31 cal. . Colt, Model 1849 pocket revolver was a percussion fired five shooter, .31 caliber, it was the most popular of the Colt revolvers, it could be concealed or easily carried and was popular for self defense both by civilians and military. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks: Top of barrel is marked - ADDRESS COL. SAML COLT NEW - YORK U. S. AMERICA -. Left frame is marked COLTS / PATENT and trigger guard is marked 31 CAL. Cylinder is marked with a stage coach scene, which is usually weak. Matching serial number, appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder (last five digits, wedge (five digits), and inside on cylinder pin (four digits). Serial numbering began at 1 and continued to approximately 280,000 by the end of the Civil War. Standard design employed octagonal barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, three screws, cylinder is round, rotation controlled with notches, brass trigger guard and back strap, walnut grips. Octagon barrel length 4in. Research Center: Weapon4112-Revolver-Colt-31cal-Model-1849-Pocket . Reference: Flayderman 5B-042. Details click: http://relicman.com/weapons/Weapon4112-Revolver-Colt-31cal-Model-1849-Pocket.html

Six shot percussion revolver, Colt Model 1851 Navy, rounded cylinder, octagon barrel, address New York, .36 cal. . Colt, Model 1851 revolver, a percussion fired six shooter, .36 caliber, was originally designed for the Navy but widely utilized by others. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks: Top of barrel is marked - ADDRESS SAML COLT NEW - YORK CITY -. Left frame is marked COLTS / PATENT Additional mark US means it was US Navy inspected. Cylinder was marked with a Naval scene, which is usually weak or worn away. Serial number appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder, wedge, and inside on cylinder pin. Additional inspector marks may be found on trigger guard and other parts. Standard design employed an octagon barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, three screws, rounded cylinder with notches, rounded brass trigger guard, brass back strap, walnut grips. Octagon barrel length 7.5 in. Research Center: Weapon4121-Revolver-Colt-36cal-Model-1851-Navy . Reference: Flayderman 5B-053. Details click: http://relicman.com/weapons/Weapon4121-Revolver-Colt-36cal-Model-1851-Navy.html

Five shot percussion revolver, Colt Model 1862 Police, rebated and half fluted cylinder, 5.5in barrel, address New York, .36 cal. . Colt, Model 1862 police revolver was a percussion fired five shooter, .36 caliber, it was considered to be an improved design over the series of Colt pocket revolvers. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks: Top of barrel is marked - ADDRESS COL. SAML COLT NEW - YORK U. S. AMERICA -. Left frame is marked COLTS / PATENT. Cylinder is not marked. Matching serial number, appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder, wedge, and inside on cylinder pin, production estimated 1864. Serial numbering began at 1 and continued to approximately 32,000 by the end of the Civil War. Standard design employed round barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, three screws, cylinder is rebated and half fluted, rotation controlled with notches, brass trigger guard andback strap, walnut grips. Round barrel length 5.5in. Research Center: Weapon4151-Revolver-Colt-36cal-Police . Reference: Flayderman 5B-105. Details click: http://relicman.com/weapons/Weapon4151-Revolver-Colt-36cal-Police.html

Six shot percussion revolver, Colt Model 1860 Army, 4 screws, rounded cylinder, round barrel, address New York, .44 cal. . Colt, Model 1860 Army revolver was a percussion fired six shooter, .44 caliber. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks: Top of barrel is marked - ADDRESS COL. SAML COLT NEW - YORK U. S. AMERICA -. Left frame is marked COLTS / PATENT. Cylinder is marked COLTS PATENT No. (serial number) / PAT. SEPT 10TH 1850, and a Naval scene with ENGAGED 16 MAY 1843, scene is usually very weak. Additional inspector mark may appears on the trigger guard, and other parts. Serial number appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder, wedge, and inside on cylinder pin. Standard design employed round barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, four screws, rounded cylinder with notches, brass trigger guard, iron back strap with notch for engaging shoulder stock, walnut grips. The fourth screw was raised if intended to engage a shoulder stock yoke. Round barrel length 8in. Research Center: Weapon4161-Revolver-Colt-44cal-Model-1860-Army . Reference: Flayderman 5B-092. Details click: http://relicman.com/weapons/Weapon4161-Revolver-Colt-44cal-Model-1860-Army.html

Six shot percussion revolver, Colt Model 1860 Army, round cylinder, 4 screws, address Hartford, .44 cal. . Colt, Model 1860 Army revolver was a percussion fired six shooter, .44 caliber. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks:Top of barrel is marked - ADDRESS COL. SAML COLT HARTFORD CT. Left frame is marked COLTS / PATENT. Cylinder is marked COLTS PATENT No.(serial number) / PAT. SEPT 10TH 1850, and a scene (which is usually very weak). Matching serial number, appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder, wedge, and inside on cylinder pin. Standard design employed round barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, four screws, rounded cylinder with notches, brass trigger guard, iron back strap with notch for engaging shoulder stock, walnut grips. The fourth screw was raised if intended to engage a shoulder stock yoke. Round barrel length 8in. Research Center: Weapon4162-Revolver-Colt-44cal-Model-1860-Army . Reference: Flayderman 5B-092. Details click: http://relicman.com/weapons/Weapon4162-Revolver-Colt-44cal-Model-1860-Army.html

Six shot percussion revolver, Colt Model 1860 Army, round cylinder, 3 screws, address New York, .44 cal. . Colt, Model 1860 Army revolver was a percussion fired six shooter, .44 caliber. Revolver was manufactured by Colt Firearms, Hartford Connecticut. Marks:Top of barrel is marked - ADDRESS COL. SAML COLT NEW - YORK U. S. AMERICA -. Left frame is marked COLTS / PATENT. Cylinder is marked COLTS PATENT No. (last four digits of serial number) / PAT. SEPT 10TH 1850, and a scene (which is usually very weak). Additional Inspector marks, on the cylinder, and the trigger guard. Matching serial number, appears seven times, underneath on both sections of frame, trigger guard, backstrap, cylinder (abbreviated), wedge (abbreviated), and inside on cylinder pin (abbreviated). Standard design employed round barrel, creeping style loading lever, barrel and cylinder held in place and easily removed for loading by releasing removable wedge, four screws, rounded cylinder with notches, brass trigger guard, iron back strap with notch for engaging shoulder stock, walnut grips. Round barrel length 8in. Research Center: Weapon4164-Revolver-Colt-44cal-Model-1860-Army . Reference: Flayderman 5B-092. Details click: http://relicman.com/weapons/Weapon4164-Revolver-Colt-44cal-Model-1860-Army.html

This is the "Ridgeway Civil War Research Center", a research tool for educational purposes only, and is provided at no cost to the reader. Some of the relics listed are retained in the author's collection, most reside in other collections and are not owned by the author. None of the items listed in this section are for sale, please refer to relicman.com sales listings for items offered for sale. This is a work in progress, I list items as I get to them, there are many patterns that are not listed yet, this list will be regularly updated as I get pictures and descriptions for more items. I will also correct mistakes, so if you see any please tell me. All items listed are believed to be authentic to the Civil War or as otherwise described. Any excavated relics have been recovered from private property with owners permission.This information is available for research purposes, pictures may be used by permission only.

All weapons listed on this webpage are strictly manufactured before 1898, and are considered unsafe for actual use. These are antique collectible weapons of the Civil War (most are pre 1865, unless I state otherwise) and actual firing of these weapons is not recommended for any purpose whatsoever! Because these are all "pre 1898" weapons, no licenses are required for ownership, but common sense and good judgment should be applied.

Most information on this page is from:
Flayderman's Guide to Antique American Firearms......
John Thillman series, "Civil War Cavalry & Artillery Sabers...", or "Civil War Army Swords....".
